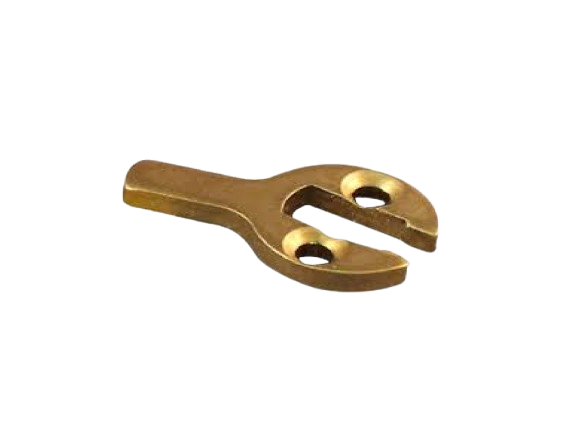

Sargent 13-0097 Mortise Cylinder Cam Assembly

(No reviews yet) Write a Review

Model: 13-0097

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Professional Mortise Cylinder Cam Assembly for Commercial Lock Systems

Precision-Engineered Mortise Lock Component

The Sargent Professional Mortise Cylinder Cam Assembly is a precision-engineered replacement component designed for use with compatible Sargent mortise lock systems. This professional-grade cam assembly ensures reliable operation and proper cylinder-to-lock body engagement in commercial and institutional applications. Manufactured to exact Sargent specifications with quality materials for long-term performance in demanding commercial environments.

Professional Features & Benefits

  • Precision Manufacturing: Engineered to exact Sargent specifications for reliable fit and function in mortise cylinder applications.
  • Durable Construction: Quality materials and manufacturing processes ensure long-term performance in demanding commercial environments.
  • Professional Component: Designed for use by qualified locksmiths and security professionals in mortise lock service and repair.
  • System Compatibility: Engineered for integration with compatible Sargent mortise lock mechanisms and cylinder assemblies.
  • Reliable Operation: Provides consistent cam engagement for smooth lock operation and secure locking performance.
  • Commercial-Grade Quality: Built to withstand the rigors of high-traffic commercial and institutional applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This component is designed for use with compatible Sargent mortise lock systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Locksmith Service and Repair

Why Choose Sargent Quality?

Sargent mortise lock components deliver professional-grade reliability with precision manufacturing and quality materials. Engineered for demanding commercial applications where dependable performance and proper system integration are essential. Trusted by security professionals for consistent, long-term performance in commercial and institutional environments.

Product Specs

Product Type:
Lock Parts
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 13-0097 – Frequently Asked Questions

1) What is the Sargent 13-0097 and what does it actually do in a mortise lock?
The 13-0097 is a mortise cylinder cam assembly from Sargent. The cam is the flat tail piece on the back of a mortise cylinder that turns with the plug and drives the retractor inside the mortise lock body. If the cam is worn, bent, or wrong for the lock body, the key turns but the latch or deadbolt does not move. It is sold as a replacement part for Sargent mortise lock systems, not as a complete cylinder.
2) Does the Sargent 13-0097 cam assembly include the cylinder itself?
No. The 13-0097 is the cam assembly only, a service component for an existing Sargent mortise cylinder. If your cylinder is damaged or you need a different keyway or keying, you need a complete mortise cylinder, not this part.
3) Will the Sargent 13-0097 cam work on a non-Sargent mortise cylinder such as Schlage or Corbin Russwin?
Treat it as Sargent only. The 13-0097 is built to Sargent specifications for Sargent mortise lock systems and cylinders. Cam profiles, screw spacing, and cam rotation vary by manufacturer, and nothing in the Sargent data supports fitting it to another brand's cylinder. If you are servicing a Schlage or Corbin Russwin mortise lock, source the cam that manufacturer lists for that lock body.
4) I manage a building with Sargent mortise locks and the key turns but the latch does not retract. Is this the part I need?
That symptom usually points at the cam. When the key turns freely through its full rotation but the latch or deadbolt stays put, the cam is either broken, loose on the plug, or not engaging the lock body retractor. The 13-0097 cam assembly is the Sargent service part for that job on Sargent mortise locks. Pull the cylinder first and confirm the cam is the failure before ordering, since a failed retractor inside the lock body produces the same symptom and needs a different repair.
5) Who should be installing a Sargent mortise cylinder cam assembly?
This is a locksmith-level part. Swapping the cam means pulling the mortise cylinder out of the lock, removing the retaining screw or plate that holds the cam, fitting the new assembly at the correct orientation, and reinstalling the cylinder so it sits flush and the cam lines up with the retractor. Sargent lists it for qualified locksmiths and security professionals doing mortise lock service and repair, and it is not a part most maintenance techs will want to tackle blind.
6) Is the Sargent 13-0097 cam assembly suitable for commercial and institutional doors?
Yes, it is classed as a commercial component. Sargent lists it for commercial office buildings, schools, healthcare, government and municipal buildings, industrial facilities, and multi-tenant residential, which is the traffic level Sargent mortise hardware is built for.
7) Do I have to order anything else with the Sargent 13-0097 to complete the repair?
Usually not for the cam itself, but check the cylinder set screw in the lock case before you reassemble. If the cylinder backed out or spun in the case, that screw is often the real cause of the cam trouble. And if the cylinder plug or keyway is also worn, you are better off replacing the whole mortise cylinder than fitting a new cam to a tired one.
8) Where do I find the exact spec and fitment detail for the Sargent 13-0097 cam?
Sargent publishes it in the SARGENT Full Line Catalog, which covers the mortise lock families and their service parts. Match the cam to the mortise lock series you are servicing, then follow the parent device installation instructions for the correct cam orientation on reassembly.
