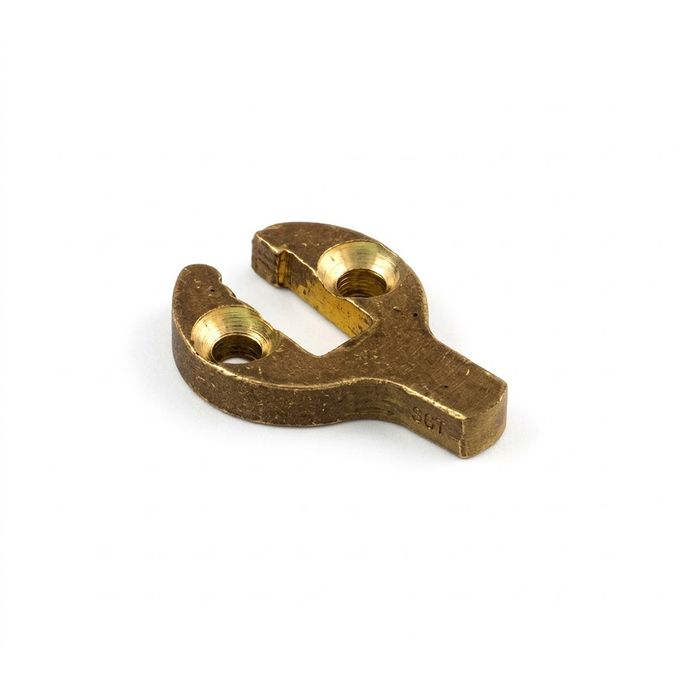

Sargent 13-066X Mortise Cylinder Cam with Slotted Design

(No reviews yet) Write a Review

Model: 13-0664

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.59
$7.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Mortise Cylinder Cam with Slotted Design for Commercial Lock Systems

Professional Mortise Lock Component

The Sargent Mortise Cylinder Cam with Slotted Design is a precision-engineered component designed for mortise lock applications. This cam provides reliable mechanical operation for commercial and institutional door hardware systems, featuring a slotted configuration for secure cylinder engagement with exact tolerances for smooth operation and proper alignment.

Professional Features & Benefits

  • Mortise Lock Compatibility: Specifically designed for mortise cylinder applications ensuring proper fit and function with standard mortise lock systems.
  • Slotted Design Configuration: Precision-machined slotted configuration provides secure engagement with cylinder mechanisms for reliable operation.
  • Professional-Grade Construction: Manufactured to commercial standards for reliable long-term performance in demanding applications.
  • Precision Engineering: Manufactured to exact tolerances for smooth operation and proper alignment in mortise lock assemblies.
  • Universal Application: Compatible with standard mortise lock systems for versatile installation options across various commercial applications.
  • Commercial Standards: Engineered for consistent performance in high-use institutional and commercial environments where dependable operation is essential.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This component is designed for use with compatible mortise lock systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent mortise lock components deliver professional-grade reliability with precision manufacturing for demanding commercial applications. Engineered for consistent performance in high-use institutional and commercial environments where dependable operation is essential.

Product Specs

Product Type:
Lock Parts
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 13-0664 – Frequently Asked Questions

1) What is the Sargent 13-066X cam and what part of a mortise lock does it replace?
The 13-066X is the cam that mounts on the back of a Sargent mortise cylinder. It is the slotted-design driver that transfers the turn of the key to the lock case, so it is the piece you replace when the cylinder turns but the lock does not respond, or when you are swapping a cylinder into a case that needs a different cam. It is sold as a replacement part for commercial mortise lock systems, not as a complete cylinder.
2) What is the difference between the Standard and Short Cam versions of the Sargent 13-066X?
Two cam options are offered: Standard and Short Cam. The short version has less reach from the cylinder to the lock case hub, so the one you need depends on the cylinder length and how deep the cylinder sits in your particular Sargent mortise case. Pull the existing cam off the cylinder and match its length before ordering, because a cam that is too long or too short will either bind or fail to pick up the lock mechanism.
3) Does a mortise cylinder come with the Sargent 13-066X, or is this cam only?
Cam only. The 13-066X is a replacement component, so you supply the mortise cylinder it screws onto. If your existing Sargent cylinder is still keyed the way the building needs, this lets you keep it and change just the cam.
4) I manage a building with Sargent mortise locks on every door. Can I standardize on one cam across all of them?
Not automatically. Sargent mortise cases and cylinder lengths vary by function and door thickness, which is why the 13-066X is offered in both a Standard and a Short Cam. Check a cam off each door group before committing to a bulk order; you may find you need both options to cover the building rather than one.
5) Is the Sargent 13-066X cam suitable for residential deadbolts or is it a commercial part?
It is a commercial part, built for mortise lock systems in office buildings, schools, healthcare, retail, government and multi-tenant residential properties. Residential tubular deadbolts and knob sets do not use a mortise cylinder cam at all, so this is not a part that crosses over to a typical house lockset.
6) Where can I get the Sargent technical details for matching this mortise cylinder cam?
Sargent publishes the full line catalog, which carries the mortise cylinder and cam detail used to match the right cam to a given lock case. That is the reference to use when confirming which of the two cam lengths your opening takes.
