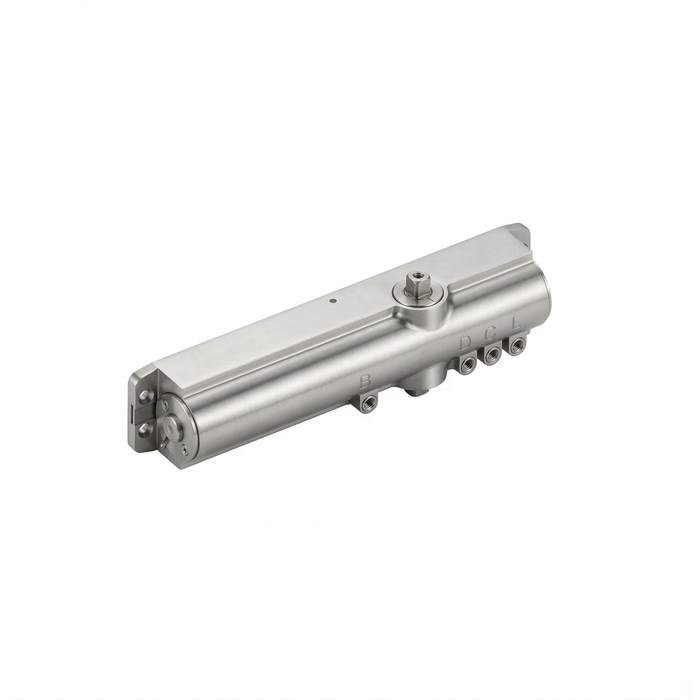

Sargent CB-1431-EN Powerglide Door Closer Body Only

Sargent CB-1431-EN Powerglide Door Closer Body Only

(No reviews yet) Write a Review

Model: CB-1431-EN
From the 1431 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$501.93
$402.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 1431 Series Powerglide Commercial Door Closer Body with Heavy-Duty Construction

Professional Commercial Door Closer Solution

The Sargent 1431 Series Powerglide Door Closer Body delivers professional-grade performance with heavy-duty construction designed for superior strength and wear resistance. This closer body unit features Powerglide technology for smooth, controlled door operation and is engineered for highly trafficked environments including schools, healthcare facilities, and commercial office buildings. The unit provides reliable door control for both interior and exterior applications with weather-resistant construction.

Professional Features & Benefits

  • Heavy-Duty Construction: Superior strength and wear resistance engineered for demanding commercial applications and high-traffic environments.
  • Powerglide Technology: Advanced closer mechanism provides smooth, controlled door operation with consistent performance over extended service life.
  • Versatile Installation Options: Compatible with full complement of arm types for flexible mounting configurations to meet various door and frame requirements.
  • Front-Facing Valve Access: Easy installation and maintenance with accessible adjustment valves for field tuning and service.
  • Interior/Exterior Rated: Suitable for both interior and exterior applications with weather-resistant construction for outdoor environments.
  • High-Traffic Performance: Specifically designed for schools, healthcare facilities, and commercial buildings where reliable operation is essential.
  • Professional-Grade Reliability: Sargent engineering ensures consistent door control performance in demanding commercial environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Centers
  • Commercial Office Buildings
  • Retail Establishments
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Choose Sargent Quality?

Sargent 1431 Series door closers deliver professional-grade reliability with heavy-duty construction engineered for superior strength and wear resistance in high-traffic commercial environments. The Powerglide technology ensures consistent performance in demanding applications where dependable door control is essential for safety and security.

Product Specs

Series:
1431 Series
Product Group:
Parts and Accessories
Product Subgroup:
Closer Body Only
Subcategory:
Door Closers
Commercial/Residential:
Commercial
Department:
Door Hardware
Lock Type:
Closer Body Only
Product Type:
Closer Body
Product Category:
Door Controls
Collection:
1431 Series

Sargent CB-1431-EN – Frequently Asked Questions

1) Does the Sargent CB-1431-EN include the arm, or is it just the closer body?
Body only. The CB-1431-EN is the 1431 Series Powerglide closer body by itself, with no arm in the box. You order the arm separately to match your mounting: regular arm for pull-side, top jamb, or parallel arm for push-side installation. If you are replacing a failed closer and the existing arm and shoe are in good shape, body-only is the part you want.
2) Will a 1431 closer body mount parallel arm on the push side of the door?
It can. The 1431 body accepts the full range of Sargent arm types, so the same body covers regular arm, top jamb, and parallel arm mounting depending on which arm and shoe you order with it. Decide the mounting first, since that determines the arm part number, not the body.
3) I manage a school with a lot of Sargent closers. Is the 1431 body a like-for-like replacement part?
If the existing units are 1431 Series Powerglide closers, the CB-1431-EN body is the matching replacement and the existing arm can usually stay. Check the model stamped on the closer cover before ordering; a body from one series will not line up with another series' arm and shoe geometry.
4) What is the closest equivalent to a Sargent CB-1431-EN closer body from another manufacturer?
The Corbin Russwin DC6200 closer body only (1689F12-689) is the nearest peer to the Sargent CB-1431-EN. Both are supplied as a closer body alone, without an arm, so both are ordered when the existing arm and mounting hardware are being reused and only the hydraulic body is being replaced. The Sargent unit is a 1431 Series Powerglide body; the Corbin Russwin unit is from the DC6200 family, so the two are not interchangeable on the same arm set - match the body to the arm and template already on the door.
5) I need a complete door closer, not just the body - is the CB-1431-EN the wrong part?
Yes, if you need arm and hardware included. The Sargent CB-1431-EN is a closer body only, meaning the hydraulic unit without the arm assembly. The Corbin Russwin DC6200 1689F12-689 is also a closer body only, so it is not a workaround either. For a new opening with no existing arm, order a complete closer package for the series instead; the body-only parts are intended for replacing a damaged or leaking body where the arm, shoe, and door prep already on the opening stay in place.
6) Can I put a Corbin Russwin DC6200 body on my existing Sargent 1431 arm?
No. The Corbin Russwin 1689F12-689 is a DC6200 closer body, and the Sargent CB-1431-EN is a 1431 Series Powerglide body - each is built to its own series arm interface, spindle, and mounting template. Swapping brands at the body means the arm will not pin correctly and the existing door and frame prep will likely not line up. If your opening has Sargent 1431 arms in serviceable condition, stay with the Sargent 1431 body; if the arms are DC6200, stay with Corbin Russwin.
7) Can I use a Sargent 1431 closer on an exterior door?
Yes. The 1431 Powerglide body is rated for both interior and exterior openings and is built weather resistant, so it holds up on entry doors as well as inside corridors. It is a commercial-duty unit, aimed at schools, healthcare, and office buildings where the door cycles all day.
8) Do I have to take the door down to adjust a 1431 closer?
No. The adjustment valves on the 1431 body face the front of the closer, so sweep and latch tuning is done with the closer in place on the door. That matters for maintenance staff doing seasonal adjustments across a building full of openings.
9) What else could I use if I need a Grade 1 closer body only from another brand?
The Corbin Russwin DC6200 Grade 1 closer body only is the cross-brand equivalent ZenSupply carries, also sold as a body without an arm. Like the Sargent 1431 body, you pair it with the arm that suits your mounting. Choose based on what the rest of the building already runs so your maintenance stock stays consistent.
10) For a school or hospital corridor, does it matter whether I standardize on Sargent 1431 or Corbin Russwin DC6200 closer bodies?
For an MRO stocking decision it matters mainly for parts commonality. The Sargent CB-1431-EN is a commercial 1431 Series Powerglide body suited to high-traffic interior and exterior openings such as schools, healthcare facilities, and office buildings. The Corbin Russwin 1689F12-689 is a DC6200 Grade 1 closer body. Because each body only accepts its own series arm, standardizing a facility on one series keeps a single body and arm on the shelf rather than two sets.
