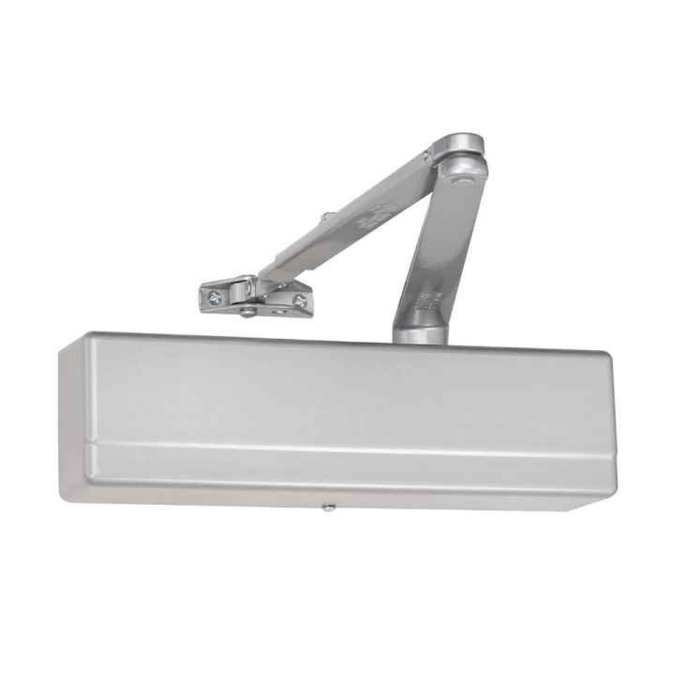

Sargent 1431-PA Powerglide Parallel Arm Door Closer

Sargent 1431-PA Powerglide Parallel Arm Door Closer

(No reviews yet) Write a Review

Model: 1431-P9-EN-TB
$757.19
$437.58
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$757.19
$437.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 1431-PA Powerglide Heavy-Duty Parallel Arm Door Closer

Commercial-Grade Door Control Solution

The Sargent 1431-PA Powerglide Door Closer delivers superior strength and wear resistance through heavy-duty construction, making it ideal for highly trafficked environments including schools, healthcare facilities, and commercial buildings. This parallel arm configuration operates effectively in extreme temperatures without readjustment and meets ADA requirements for most applications. The front-facing valves enable easy installation and maintenance for both interior and exterior applications.

Professional Features & Benefits

  • Heavy-Duty Construction: Superior strength and wear resistance engineered for demanding commercial applications and high-traffic environments.
  • Extreme Temperature Performance: Operates effectively in extreme heat and cold conditions without requiring readjustment for consistent performance year-round.
  • ADA Compliance: Meets ADA requirements in all applications except push-side track installations for accessibility compliance.
  • Versatile Mounting Options: Supports standard, top jamb, parallel arm, and track installations for flexible application requirements.
  • Front-Facing Valves: Easy access valve configuration simplifies installation procedures and ongoing maintenance requirements.
  • Interior/Exterior Capability: Suitable for both interior and exterior door applications with weather-resistant performance.
  • Powerglide Technology: Advanced closer mechanism provides smooth, controlled door operation with reliable closing force.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Centers
  • Commercial Office Buildings
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Sargent Quality?

Sargent 1431 Series door closers deliver professional-grade reliability with heavy-duty construction engineered for superior strength and wear resistance. The Powerglide technology ensures smooth operation in extreme temperature conditions without readjustment, making it ideal for demanding commercial applications where dependable performance is essential.

Product Specs

Series:
1431 Series
Grade:
Grade 1
Product Type:
Surface Mounted Door Closers
Duty Level:
Heavy Duty
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Subcategory:
Door Closers
ADA Compliant:
Yes
Commercial/Residential:
Commercial
Arm Specification:
Interchangeable
Delay Function:
Yes
Mounting Method:
Surface
Product Category:
Door Controls
Department:
Door Hardware

Sargent 1431-P9-EN-TB – Frequently Asked Questions

1) Do I have to specify hand when ordering the Sargent 1431-PA door closer?
Yes, hand is required. The 1431-PA is ordered either RH (right hand) or LH (left hand), so you need to determine the door's swing before placing the order. Stand on the outside of the opening: if the hinges are on the right and the door swings away from you, it's right hand. Get this wrong and the closer arm will not set up correctly on the opening.
2) What does parallel arm mounting mean on the Sargent 1431, and when should I use it instead of regular arm?
Parallel arm puts the closer body on the push side of the door with the arm running back parallel to the face of the door when closed. That keeps the closer tucked up against the door and out of the traffic path, which is why it is the usual choice for corridors, classrooms, and any opening where a projecting regular arm would get hit or vandalized. Regular arm mounts on the pull side and is more efficient in pure closing power, but it hangs out into the opening. The 1431 arms are interchangeable, and the series supports standard, top jamb, parallel arm, and track installations, so the same closer family can cover mixed openings in a building.
3) Is the Sargent 1431-PA ADA compliant for a barrier-free opening?
The 1431 meets ADA requirements in every mounting except a push-side track installation. Since the 1431-PA is a parallel arm closer and not a track closer, it is within the ADA-compliant configurations. Note that ADA opening force still depends on how the spring power is set on the door and, for exterior doors, on local authority allowances.
4) What does the TB option on the Sargent 1431-PA mean and when do I need it?
TB is through bolt hardware sized for a 1-3/4 inch door. Instead of relying on sex bolts or machine screws into the door face, through bolts pass fully through the leaf and clamp the closer from both sides. That is what you want on hollow metal or wood doors in high abuse locations, schools especially, where pull-off of the closer body is the common failure. The through bolt package supplied is dimensioned for 1-3/4 inch thickness, the standard commercial door thickness.
5) Is the Sargent 1431-PA heavy duty enough for a school entrance or high traffic corridor?
It is built for exactly that. The 1431 is a Grade 1, heavy duty, commercial surface closer, and the intended applications are schools, healthcare facilities, and other high traffic commercial buildings. Grade 1 is the top ANSI/BHMA performance tier for closers, which is what institutional specs normally call for on main traffic doors.
6) The Sargent 1431-PA is a non hold open arm. What comparable closer holds the door open?
The 1431-PA arm is a parallel non hold open type, so the door returns to closed every cycle. For openings that need to stand open, the Accentra 51 Series is supplied with a tri-packed hold open arm, and the Orca Hardware BHDC1958HO/PA is a hold open closer with parallel bracket. The Stanley Security A45-501HL uses a long hold open arm in a top jamb application. Note that hold open arms are generally not permitted on fire-rated openings unless the closer is part of a listed hold open release assembly.
7) I need a closer that can be field-configured for regular, top jamb, or parallel arm mounting instead of a dedicated parallel arm unit. What should I look at?
The Sargent 1431-PA ships configured with a PA parallel non hold open arm. If you want one part number that covers all three mounting styles out of the carton, tri-pack and tri-mount closers are the alternative: the Arrow DCN314 and DCN325 are Grade 1 surface closers with regular/parallel arm tri-pack, the Dexter DCH1000 and DCL2000 Series are Grade 1 tri-mount closers for regular, parallel, or top jamb mounting, and the Norton Rixson 8501A is a Grade 1 tri-mount with adjustable size 1-6 spring. These let a single SKU be stocked for mixed openings across a building.
8) My opening has no room on the push side for a parallel arm closer. What should I use instead of the Sargent 1431-PA?
The 1431-PA is supplied as a parallel arm unit, which mounts to the push side of the door with the arm folded back against the face. Where the frame face or a transom will not accept that, pull-side and track alternatives include the Corbin Russwin DC5230 Series Grade 1 surface closer with slide track arm and pull side mounting, the Corbin Russwin DC6200 and DC8200 Series Grade 1 closers with double lever regular arm and pull side mounting, and the Dorma 8916-JT Grade 1 jamb track closer for frame face, pull side mounting with adjustable size 1-6 spring.
9) Does the Sargent 1431 have delayed action for accessible or healthcare openings?
Yes, the 1431 offers a delay function, which holds the door near full open for a few seconds before starting the close cycle. That extra dwell is what people use on patient room doors, cart traffic, and openings used by wheelchair or walker traffic where a standard sweep closes too fast to get through.
10) Can I use the Sargent 1431 Powerglide closer on an exterior door in a cold climate?
Yes. The 1431 Powerglide is rated for both interior and exterior use and is built to keep working through extreme heat and cold without needing to be readjusted seasonally. That is the practical difference on an entrance door in a northern climate: no spring trip out to re-tune the valves every fall and spring. The valves are front-facing, so if you do need to touch the sweep or latch speed it is done from the front of the closer without pulling it off the door.
11) What are the closest alternatives to the Sargent 1431 heavy duty surface closer from other brands?
If you need another Grade 1 heavy duty surface closer, the BEST HD8000 Series and the Falcon SC71A are both Grade 1 heavy duty surface mounted closers, and the BEST EHD9000 Series is an extra heavy duty Grade 1 with adjustable spring sizes 1-6. The Norton Rixson 1600BC Series is a Grade 1 heavy duty closer aimed at aluminum storefront openings. If the opening is lighter duty, a Grade 1 light duty closer such as the BEST SL6000 Series or the Arrow DC314 is a different class of product and should not be swapped onto a high traffic entrance in place of the 1431.
12) Will a Sargent 1431-PA mount on a narrow top rail or does it need a drop plate?
Parallel arm mounting needs enough flat soffit and top rail face to land the shoe and the closer body. On doors with a narrow top rail or an aluminum frame with a shallow stop, a parallel arm drop plate is the accessory that lowers the closer onto usable surface. Drop plates are closer-specific, so on the 1431 use the Sargent parallel arm plate for the 1431 series rather than a plate from another line. For reference on how these accessories are matched, the Arrow DCN500DP parallel drop plate is sold only for the DCN500 closer.
13) Is there a lighter-duty alternative to the Sargent 1431-PA for a low-traffic interior door?
The Sargent 1431-PA is a heavy duty closer intended for high-traffic commercial openings, which is more closer than a low-use interior office or closet door needs. Lighter Grade 1 options include the BEST SL6000 Series light duty surface closer, the Arrow DC314 Grade 1 light duty closer, the Norton Rixson 160 Series light commercial closer, and the LCN 1250 Series light duty closer with all-weather fluid. The Falcon SC91A is a light duty Grade 3 unit if the specification does not call for Grade 1.
14) What other closers offer a delayed action feature like the Sargent 1431-PA?
The Sargent 1431-PA carries a delay function, which slows the initial portion of the closing cycle so slower traffic can clear the opening - a common request in healthcare and senior housing. Comparable delayed action units include the Orca Hardware BHDC1958DA/PA, a delayed action closer with regular arm and parallel bracket, and the Orca Hardware BHDC2011DA/PA, also a delayed action model with parallel bracket, both catalogued for 1-3/4 inch doors.
15) Which alternatives to the Sargent 1431-PA are also ADA compliant?
The Sargent 1431-PA meets ADA requirements in all applications except push-side track installations. Other closers described as ADA or barrier free include the Imperial USA TC4300 Series Grade 1 heavy duty size 1-6 ADA closer, the Calibre CA9901 tri-pack arm size 2-5 ADA closer, the Calibre CA4001 adjustable spring tension ADA hydraulic closer, the Cal-Royal 500S Grade 1 barrier free closer with adjustable back-check, and the Cal-Royal N900PBF barrier free Grade 1 hydraulic closer. Adjustable-spring models let you dial opening force down to meet the ADA limit on the specific door.
16) What looks like a substitute for the Sargent 1431-PA but will not work?
The Sargent 1431-PA is a surface mounted hydraulic door closer. Two items that come up in the same searches are not closers at all: the Arrow DCN500DP parallel drop plate is a mounting accessory for the DCN500, used to gain clearance on a parallel arm install, and the Stanley Security 327 and 341 wardrobe pivots are hanging hardware for cabinet and wardrobe doors, not door control devices. Also watch the grade line - the Cal-Royal 400 Series is a Grade 2 commercial hydraulic closer, so it will not satisfy a drawing calling for Grade 1 like the 1431.
17) I need to standardize closers across a facility with a single adjustable spring size. What alternatives to the Sargent 1431-PA cover the widest size range?
The 1431-PA is a heavy duty Grade 1 closer with an interchangeable arm specification. If you want one adjustable model to cover interior and exterior leaves of different widths, the BEST EHD9000 Series offers adjustable spring sizes 1-6, the Accentra 2701 Series and Accentra 51 Series both cover sizes 1-6, the Arrow DCN325 is adjustable size 1-6, the LCN 1450 covers spring sizes 1-6, and the Dormakaba 8916-JT is adjustable size 1-6. A single adjustable size range reduces the number of part numbers your maintenance shop has to stock.
18) What finish does the Sargent 1431-PA come in, and can it be painted to match?
It ships in EN, sprayed aluminum enamel, a painted grey-aluminum finish. That is the standard utility finish for commercial closers and it blends with aluminum storefront and mill-finish frames. If a project calls for a plated or architectural metal finish on the closer cover, EN is not that, so check the hardware schedule before ordering it for a lobby or feature opening.
19) What is a medium-duty step down from the Sargent 1431-PA for moderate traffic doors?
Where a heavy duty closer like the 1431-PA is more than the opening calls for but light duty is not enough, medium duty Grade 1 options include the BEST HD7000 Series with adjustable spring power and backcheck control, the Falcon SC81A Series cast aluminum closer, the Norton Rixson 1601P tri-mount Grade 1 closer with 180 degree swing, the Dormakaba 7414 size 1-4 closer, and the LCN 1450. The Design Hardware 316 Series sits in the medium to heavy duty range with a tri-packed non-hold open arm.
20) Are there heavy-duty closers with a flat or low-profile arm as an alternative to the Sargent 1431-PA parallel arm?
The 1431-PA uses a conventional parallel arm that folds back along the door face. Where a flatter profile is wanted for appearance or to clear a narrow top rail, the Dormakaba 8616 AF86P is a Grade 1 heavy duty closer with a flat arm non-hold open tri-pack configuration, and the Dorma 8916-JT is a Grade 1 heavy duty unit with a flat non-hold open arm in a jamb track mounting. Both are non-hold open like the 1431-PA.
21) What heavy-duty closers besides the Sargent 1431-PA come with a full cover?
The Sargent 1431-PA is offered in an EN sprayed aluminum enamel finish. If a finished cover matters for a lobby or public corridor, the Dexter DCH1000 Series is a Grade 1 tri-mount surface closer supplied with a full cover, and the Design Hardware 316 Series is furnished with a cover. By contrast, the Arrow DCN314 and DCN325 are cataloged less cover, so plan on a separate cover if the opening is in public view.
