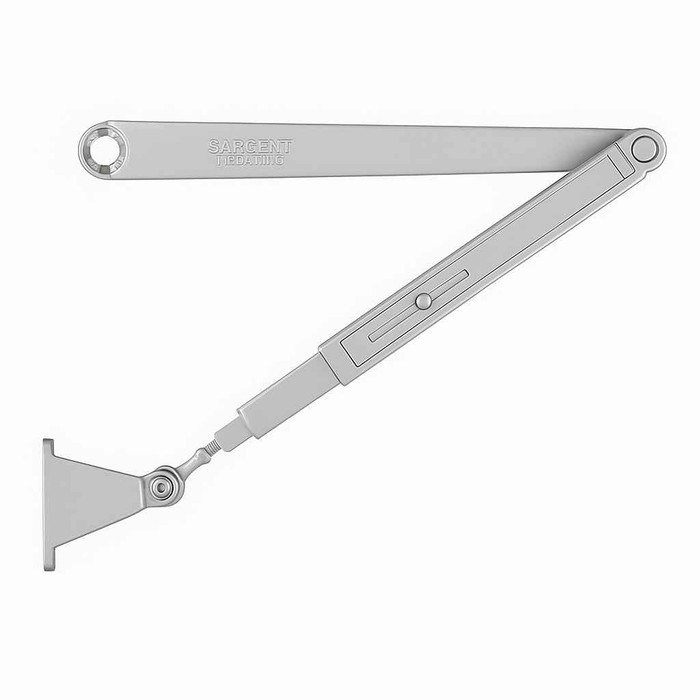

Sargent 25-P4A - Flush Frame Parallel Arm 1-3/4" Offset Bracket for Auxiliary Stop/Holder, Compatible with 351, 281, 1431 Models, Commercial Replacement

Sargent 25-P4A Flush Frame Parallel Arm with 1-3/4" Offset Bracket for Door Closers

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 25P4A EAB
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$211.28
$168.93
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Flush Frame Parallel Arm with 1-3/4" Offset Bracket for Door Closers

Professional Door Closer Arm Assembly for Deep Frame Applications

The Sargent Flush Frame Parallel Arm with 1-3/4" Offset Bracket is an OEM replacement component designed for Sargent 351, 281, and 1431 Series door closers. This forged steel arm assembly features a specialized 1-3/4" offset bracket that provides necessary clearance for deeper frames or narrow soffit conditions. The non-handed design accommodates both left- and right-hand doors with opening ranges of 120° standard mounting or up to 180° with alternate mounting configurations.

Professional Features & Benefits

  • Precision Offset Design: 1-3/4" offset bracket provides extended clearance for auxiliary stops or holders on deep frame installations where standard arms won't fit.
  • Heavy-Duty Construction: Forged steel main arm construction delivers exceptional strength and long-lasting durability for demanding commercial applications.
  • Versatile Opening Range: Supports 120° door opening with standard mounting or up to 180° opening with alternate mounting method for flexible installation options.
  • Universal Compatibility: Works with Sargent 351, 281, and 1431 Series door closers for broad application versatility.
  • Non-Handed Configuration: Fits both left- and right-hand doors eliminating the need for separate handed components.
  • Secure Frame Mounting: Foot bracket attaches securely to frame or transom face for stable and reliable installation.
  • Commercial-Grade Performance: Engineered for high-traffic environments including schools, hospitals, offices, and other demanding commercial facilities.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This replacement arm assembly is designed for use with compatible Sargent 351, 281, and 1431 Series door closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent door closer components deliver professional-grade reliability with forged steel construction engineered for demanding commercial applications where dependable performance is essential. This OEM precision replacement ensures smooth operation and full compatibility with Sargent closer systems, providing the specialized clearance needed for challenging flush frame installations with auxiliary hardware requirements.

Product Specs

Grade:
Grade 1
Product Type:
Door Closer Arms
Duty Level:
Standard
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Product Category:
Door Controls
Department:
Door Hardware

Parts & Accessories

    Sargent 25P4A EAB – Frequently Asked Questions

    1) Which Sargent door closers does the 25-P4A parallel arm fit?
    The 25-P4A flush frame parallel arm is an OEM replacement for Sargent 351, 281, and 1431 Series closers. It is not a universal arm, so if the closer body is another Sargent series or another brand, this arm is the wrong part.
    2) What is the 1-3/4 inch offset bracket for on a parallel arm closer?
    The offset bracket moves the arm foot out 1-3/4 inches from the frame face, which buys clearance on deeper frames or narrow soffit conditions where a standard parallel arm bracket will not fit. It is also what gives room for an auxiliary stop or holder on the same opening.
    3) Does the Sargent 25-P4A hold the door open?
    No. The 25-P4A is a plain flush frame parallel arm with an offset bracket; hold-open is not part of it, though the bracket clears an auxiliary stop or holder if you add one. If you want hold-open built into the arm itself, that is a different assembly, such as the Falcon SC60A-3049DS dead stop hold-open parallel arm for SC60A closers or the LCN 1250-3049/PA hold-open arm with parallel arm shoe for 1250 Series. Those are brand-specific and will not go on a Sargent closer.
    4) I need a parallel arm that holds the door open. Does the Sargent 25-P4A do that?
    The Sargent 25-P4A is a flush frame parallel arm with a 1-3/4 inch offset bracket, intended to give clearance for an auxiliary stop or holder on deep frames or narrow soffits; the hold-open function comes from the separate auxiliary hardware, not from the arm itself. If you want the hold-open built into the arm, that function is offered on other closer platforms: the Falcon SC60A-3049DS is a hold-open dead stop parallel arm assembly for SC60A Series closers, the Falcon SC70A-3049/PA is a hold open arm with a PA bracket for SC70A Series closers, and the LCN 4010-3049 is a hold open arm with an adjustable elbow for 4020 Series closers.
    5) If the closer on the door is an LCN rather than a Sargent, what parallel arm takes the place of the Sargent 25-P4A?
    The Sargent 25-P4A is an OEM arm built for Sargent 351, 281, and 1431 Series closers, so it is not the part to order for an LCN body. For LCN, the arm is matched to the closer series: the LCN 1250-3049/PA is a hold open arm assembly with a parallel arm shoe and a non-handed design for 1250 Series closers, and the LCN 1260-3077 is a regular arm with a parallel arm bracket for 1260 Series closers. Match the arm to the series stamped on the closer body rather than to the mounting style alone.
    6) Will the Sargent 25-P4A work on an automatic door operator or a center hung floor closer?
    No. The Sargent 25-P4A is a surface closer arm whose foot bracket attaches to the frame or transom face, and it is built for Sargent 351, 281, and 1431 Series closers. An automatic operator uses its own arm and track hardware, such as the Falcon 8230-3077PLCM standard arm with track for 8230 Series automatic door operators. A center hung floor application uses a pivot and end load arm instead, such as the Falcon OHC100A-DP center hung floor pivot with end load arm for OHC100 Series closers. Neither of those roles is covered by a flush frame parallel arm.
    7) Where does the 25-P4A arm bracket mount, the door or the frame?
    Parallel arm mounting puts the closer body on the pull side of the door and the foot bracket on the frame or transom face. The forged steel main arm carries the load between them.
    8) Is this arm heavy enough for a school or hospital entry door?
    It is a Grade 1, commercial-rated component with a forged steel main arm, which is the tier specified for high-traffic openings in schools, hospitals, and office buildings. Duty level is listed as standard within that commercial range.
    9) Do I need to order a left-hand and a right-hand version of the Sargent 25-P4A for a pair of doors?
    No. The Sargent 25-P4A is non-handed and fits both left- and right-hand doors, so one part number covers both leaves of a pair. Non-handed construction also appears on comparable arms such as the LCN 1250-3049/PA, described as a non-handed hold open arm assembly with parallel arm shoe. Handing aside, the 25-P4A still has to be matched to a Sargent 351, 281, or 1431 Series closer body.
    10) The frame is not deep and there is no auxiliary stop. Is there a simpler arm than the Sargent 25-P4A?
    The 25-P4A's distinguishing feature is the 1-3/4 inch offset bracket, which exists to clear deeper frames, narrow soffit conditions, or auxiliary stops and holders. On a shallow flush frame with nothing to clear, a standard arm is the straightforward choice. Standard and regular arm assemblies in the comparable range include the LCN 4000T-3077T standard arm replacement component for 4000T Series closers and the LCN 1260-3077 regular arm with parallel arm bracket for 1260 Series closers, each keyed to its own closer body.
    11) What finishes does the Sargent 25-P4A arm come in?
    Five sprayed enamel finishes: EAB sprayed brass, EN sprayed aluminum, EB bronze enamel matched to dark satin bronze, ED bronze enamel matched to dark statuary bronze, and EP bronze enamel matched to satin bronze. Pick the one matching the closer body already on the opening so the replacement arm does not stand out.
    12) Do I need anything else besides the arm for a top jamb Sargent closer installation?
    For a parallel arm application the arm and its offset foot bracket cover the linkage. If the job is top jamb mounted instead, the Sargent 351A top jamb mounting plate is the companion part. Reuse of the existing closer body is assumed, so confirm the body is a 351, 281, or 1431 before ordering.
