Sargent 8315 Narrow Stile Mort...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,755.00
$2,936.22
Sargent Sargent 8300 Series - (8315) Passage Function Narrow Stile Design Mortise Exit Device SGT-8315

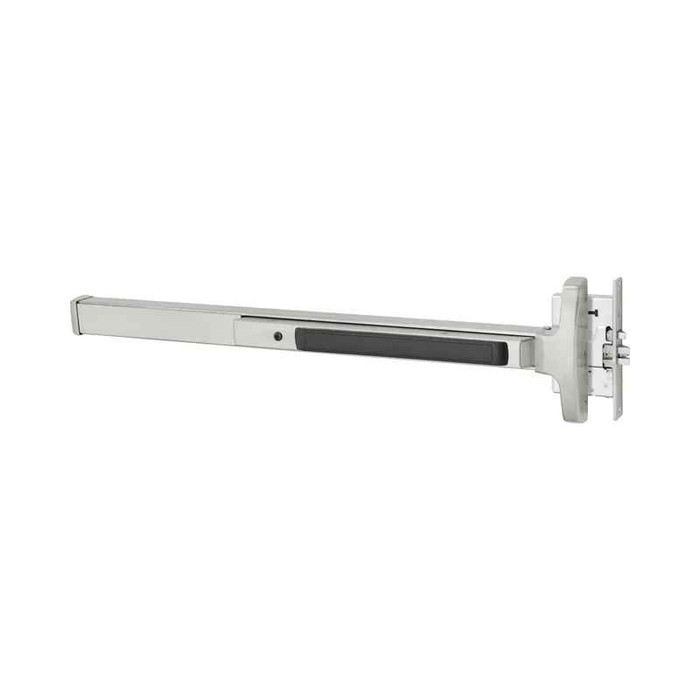

Sargent 8315 Narrow Stile Mortise Exit Device - Passage Function

(No reviews yet) Write a Review

Model: 8315E 32D
From the 8300 Series Collection
$3,755.00
$2,936.22
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,755.00
$2,936.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8315 Narrow Stile Mortise Exit Device with Passage Function

Professional Exit Device Solution for Commercial Applications

The Sargent 8315 Narrow Stile Mortise Exit Device delivers professional-grade security with passage function operation for commercial door applications. This heavy-duty exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, engineered for the lifetime of the building. The narrow stile design accommodates doors with limited stile width while maintaining full security functionality and reliable operation.

Professional Features & Benefits

  • Narrow Stile Design: Specifically engineered for doors with limited stile width without compromising security or functionality.
  • ANSI/BHMA Grade 1 Performance: Exceeds industry standards for cycle and strength testing, ensuring reliable operation in high-traffic commercial environments.
  • Heavy-Duty Construction: Built to last the lifetime of the building with maintenance-free operation and unsurpassed security performance.
  • Mortise Configuration: Provides secure mortise lock integration with passage function operation for controlled access applications.
  • Modular Design: Crafted for easy maintenance and service with interchangeable components for long-term reliability.
  • Commercial-Grade Durability: Designed for demanding commercial environments requiring strong and durable security solutions.
  • Manufacturer Warranty: 2 Year Limited warranty for added confidence and protection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent exit devices deliver professional-grade reliability with heavy-duty construction that exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing. The modular design ensures maintenance-free operation built to last the lifetime of the building. Engineered for demanding commercial applications where dependable security performance is essential.

Manufacturer Resources

SARGENT Full Line Catalog

Product Specs

Series:
8300 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Mortise Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Passage
Grade:
Grade 1
Model Series:
8300 Series
Product Model:
8313
Product Function:
Passage
Product Category:
Exit Devices and Trim
Collection:
8300 Series
Department:
Door Hardware

Sargent 8315E 32D – Frequently Asked Questions

1) What does the passage function on the Sargent 8315 exit device actually do?
Passage function means the outside lever is always unlocked. Push the pad from inside to exit, and turn the lever from outside to get in at any time, with no key involved. That suits corridor doors, stairwell re-entry, and interior openings where you want free flow both directions but still need a listed exit device on the door. If you need the outside trim to lock, the 8315 is the wrong function in the 8300 Series.
2) Will a Sargent 8315 fit an aluminum storefront door with a narrow stile?
The 8315 is built as a narrow stile mortise exit device, so it is the 8300 Series variant intended for doors with limited stile width, which is the usual situation on aluminum entrances. Wide stile mortise devices will not fit that rail. Check the actual stile measurement on your door against the Sargent template before you cut.
3) Do I have to specify handing when ordering the Sargent 8315?
Yes, handing is a required choice: RHR (right hand reverse) or LHR (left hand reverse). A mortise device is handed because the latch and the lock case are cut into the lock edge of the door. Stand outside the door, on the side it swings away from, and if the hinges are on your right it is RHR. Get this wrong and the device will not work on the opening.
4) Does the Sargent 8315 come with outside lever trim or do I order that separately?
Trim is a separate selection. You can take the device on its own (Exit Device Only) or add ET trim in eight lever designs: ETA, ETB, ETE, ETF, ETJ, ETL, ETP and ETW. If anyone needs to enter from the outside, you need one of the ET lever options; without it the opening is exit only from that side.
5) My door has a wide stile, so the Sargent 8315 will not fit. What mortise exit device should I use?
Right, a narrow stile device is the wrong tool on a wide stile leaf. Wide stile mortise options we stock include the Corbin Russwin ED5600AL, Grade 1 and 3 hour fire rated for 1-3/4 inch doors, accepting passage or classroom lever trim; the Falcon 25-M-EO exit only Grade 1 at 1-3/4 inch; the Von Duprin 9875 smooth case, non-handed Grade 1; and the Adams Rite 3300 Series, which is fire rated and works on wood and hollow metal doors. If the opening needs a passage function with outside lever like the 8315, the ED5600AL with passage lever trim is the closest wide stile match.
6) What other narrow stile mortise exit devices compare to the Sargent 8315?
The Sargent 8315 is a narrow stile mortise exit device carrying ANSI/BHMA Grade 1. Two other narrow stile mortise devices are the Adams Rite 8400 Series, a Grade 1 life-safety narrow stile mortise device for aluminum doors that is not fire rated, and the Von Duprin 5575-3ft, a Grade 1 narrow stile crossbar mortise lock device in a 3 ft size that is field reversible, non-fire-rated, and built for 1-3/4 inch doors. The 8315 differs from the Von Duprin 5575 in using a push rail rather than a crossbar, and it is ordered in a specific hand, either RHR or LHR.
7) Is the Sargent 8315 Grade 1?
Yes, the 8315 carries an ANSI/BHMA Grade 1 rating, the highest durability class for exit devices, which is what most institutional and government specs call for on high traffic openings. Grade 1 is what you cite when a school or hospital spec sheet demands heavy duty cycle and strength performance.
8) What finishes can I get the Sargent 8315 in to match existing hardware in my building?
Twelve finishes are offered: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B dark oxidized satin bronze oil rubbed, 10BE, 10BL, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, plus BSP black suede powder coat and WSP white suede powder coat. For most commercial buildings 32D satin stainless is the standard match, and BSP or WSP are the ones that blend with painted aluminum storefront.
9) Can I put a Sargent 8315 on a wood door?
The 8315 is a narrow stile device, and narrow stile openings are almost always aluminum storefront rather than wood. If your opening is a wood or hollow metal door, look at a wide stile mortise device rated for it, such as the Adams Rite 3300 Series, which is listed for wood and hollow metal and is fire rated. Several wide stile mortise devices, including the Von Duprin 8875 and 9875, are specifically listed as not wood door compatible.
10) I need to standardize exit hardware across a building where some doors lock and some do not. Can I stay in the Sargent 8300 Series?
Yes. The 8315 is the passage function member of the Sargent 8300 Series mortise exit device family, so you can hold the same series, the same ET lever design and the same finish across the building and change only the function on the openings that need locking or keyed control. That keeps the look consistent and keeps service parts common, since the 8300 Series is built modular with interchangeable components.
11) If I do not need lever trim on the outside, is there a simpler option than the Sargent 8315?
The Sargent 8315 can be ordered as device only without ET trim, or with one of the ET lever trims in A, B, E, F, J, L, P, or W lever. If the opening never needs outside entry, exit-only mortise devices include the BEST Precision 2301 Series, an exit-only mortise device with heavy wrought construction; the Falcon 25-M-EO in 36 inch wide stile exit only; and the Detex 30 Series Advantex, a Grade 1 device-only mortise unit in wide stile that is not wood door compatible. Those are wide stile devices, so the narrow stile 8315 without trim remains the option for a narrow stile door.
