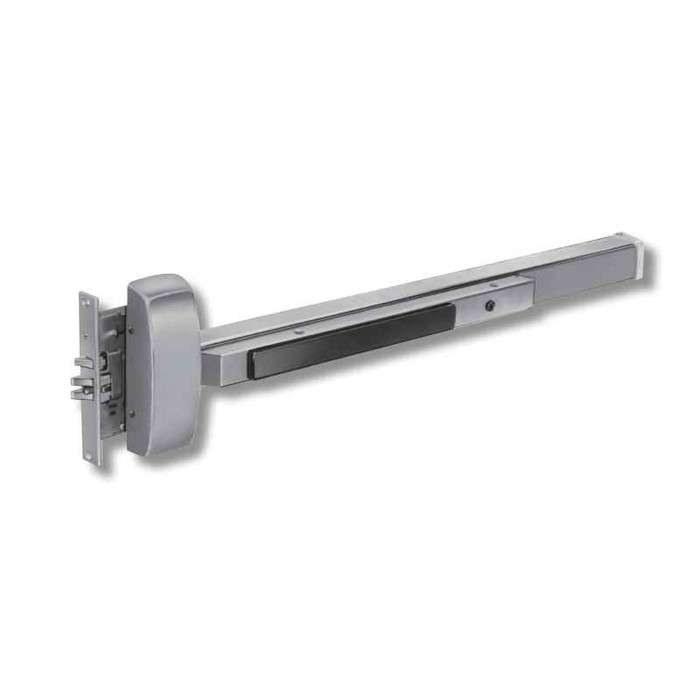

Sargent 8900 Series - (8915) Passage Trim Function Wide Stile Design Mortise Exit Device

Sargent 8915 Passage Trim Function Wide Stile Mortise Exit Device

(No reviews yet) Write a Review

Model: 8915E 10BE
From the 8900 Series Collection
$3,195.00
$2,533.91
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,195.00
$2,533.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8915 Wide Stile Mortise Exit Device with Passage Trim Function

Professional Mortise Exit Device Solution

The Sargent 8915 wide stile mortise exit device delivers professional-grade security for commercial applications requiring strong and durable solutions. This wide stile design passage trim function device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, ensuring reliable performance in demanding environments. Built with modular construction for maintenance-free operation, this mortise configuration provides comprehensive security for any facility.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 Performance: Exceeds industry standards for cycle and strength testing, ensuring reliable operation in high-traffic commercial applications.
  • Wide Stile Design: Accommodates doors with wider stile dimensions for enhanced installation flexibility and structural compatibility.
  • Mortise Configuration: Integrates seamlessly with mortise locksets for comprehensive door security and access control solutions.
  • Modular Construction: Engineered for maintenance-free operation with easily serviceable components for long-term reliability.
  • Passage Trim Function: Provides free egress operation without requiring key operation for emergency exit compliance.
  • Lifetime Durability: Built to last the lifetime of the building with robust construction and premium materials.
  • Versatile Applications: Compatible with delayed egress, alarmed exit, and electric latch retraction options for specialized security requirements.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent exit device products deliver professional-grade reliability with modular construction designed to exceed ANSI/BHMA Grade 1 requirements for cycle and strength performance. Built to last the lifetime of the building with maintenance-free operation, this mortise exit device provides the dependable security performance essential for demanding commercial applications.

Product Specs

Series:
8900 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Mortise Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Passage
Grade:
Grade 1
Model Series:
8900 Series
Product Model:
8915
Product Function:
Passage
Product Category:
Exit Devices and Trim
Collection:
8900 Series
Department:
Door Hardware

Sargent 8915E 10BE – Frequently Asked Questions

1) Will the Sargent 8915 mortise exit device fit a narrow stile aluminum storefront door?
No. The 8915 is a wide stile device, so it needs the stile width a wood or hollow metal door gives you. For a narrow stile aluminum door, look at the Adams Rite 8400 Series narrow stile mortise exit device or the Von Duprin 5575 narrow stile crossbar mortise device instead. Putting a wide stile case on a narrow aluminum stile leaves you without enough material for the mortise pocket.
2) What door widths does the Sargent 8915 exit device cover?
Four device lengths are offered: 32, 36, 42 and 48 inches. Pick the length off the actual door leaf width, not the opening. One thing to watch if you are adding the alarmed option: AL requires a 36 inch minimum door width, so it cannot go on the 32 inch application.
3) Do I have to specify handing when ordering a Sargent 8915?
Yes, handing is required and there is no field reversal on it. You choose RHR (right hand reverse) or LHR (left hand reverse). Exit devices are always one of the two reverse hands because the door swings out of the room in the direction of egress. Stand outside the door, on the pull side: if the hinges are on your right and the door swings away from you, that is RHR. Ordering the wrong hand on a mortise device means the wrong latch orientation and a return.
4) Does the Sargent 8915 come with lever trim or do I order that separately?
You choose it on the order. The trim choice runs across eight ET lever designs, A, B, E, F, J, L, P and W, or you can order the device with no trim at all as exit only. Exit only means push to get out and no outside operation, which is what you want on a door that should never be entered from outside. If you need the door openable from the outside, pick one of the ET levers and match it to the lever shape used on the rest of the building.
5) What does the passage function do on the Sargent 8915, and is it right for a classroom door?
Passage means the outside lever is always unlocked. Anyone can pull the door open from the outside, and the push rail gives free egress from the inside at all times. It is the right pick for a corridor or stair door that has to stay openable both ways, and the wrong pick for a classroom or any opening you need to secure from the outside, since there is no key control on the trim. For a lockable outside lever, look at a keyed function in the same 8900 family, or at the Corbin Russwin ED5600AL, which accepts passage or classroom lever trim.
6) Can I get a Sargent 8915 with electric latch retraction or remote dogging?
Yes, and it is an option code you add at order time. The electric choices are 56 remote dogging / latch retraction, 58 electric dogging, 59 Electroguard, 53 latchbolt monitor switch, 54 internal micro switch in the ET control, 55 signal switch in the rail, and AL alarmed. Monitor switches (53, 54, 55) report door or device status back to an access control panel. Dogging options (56, 58) hold the latch retracted so the door pushes free during business hours. Order them with the device; they are not something you add in the field later.
7) What is the closest equivalent to a Sargent 8915 from another manufacturer?
For a like for like swap on a wide stile mortise exit device, the Corbin Russwin ED5600AL is the nearest match, Grade 1, wide stile, for 1-3/4 inch doors, and it accepts passage or classroom lever trim. The Falcon 25-M-EO is the simpler option if you only need exit only with no outside trim, Grade 1, wide stile, 1-3/4 inch doors. On the crossbar side rather than a push rail, the Von Duprin 8875 and 9875 are both wide stile Grade 1 mortise devices, non-handed, for 1-3/4 inch doors. Be aware the crossbar devices look different from the 8915 push pad, so they are a poor choice if you are matching an existing bank of doors visually.
8) Which mortise exit device should be used on a fire-rated opening instead of the Sargent 8915?
For an opening that requires a fire label, the Adams Rite 3300 Series is a fire-rated Grade 1 wide stile mortise exit device for wood and hollow metal doors, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated wide stile mortise device that accepts passage or classroom lever trim. The Adams Rite 8300 Series, Von Duprin 8875-3FT, Von Duprin 9875-3FT, Von Duprin 9475/9575 and 5575-3ft are all listed as not fire rated, so they belong on non-labeled life-safety openings.
9) Is the Sargent 8915 exit device Grade 1?
Grade 1 is what the 8915 is built to, and Sargent states it exceeds the ANSI/BHMA Grade 1 cycle and strength testing. Grade 1 is the heavy duty commercial tier, which is what most institutional and government specs call for on an egress door. If your drawing says Grade 1 exit device, this meets it.
10) Can I put a mortise exit device on a wood door?
Wood door compatibility is the thing to check first, because several wide stile mortise devices are metal door only. Of the comparable wide stile mortise devices ZenSupply carries, the Adams Rite 3300 and 8300 Series are stated for wood and hollow metal doors. The Detex 30 Series, Von Duprin 8875 and Von Duprin 9875 are all recorded as not wood door compatible, so those are hollow metal or aluminum openings only.
11) Do I have to order the handing on a replacement mortise exit device, or can I get a non-handed one?
The Sargent 8915 is ordered handed, RHR or LHR. If you are stocking spares for a building with doors swinging both ways and do not want to carry two part numbers, the Von Duprin 8875 and 9875 wide stile mortise devices are recorded as non-handed, and the Von Duprin 5575 narrow stile is field reversible. That matters for a property manager or MRO stockroom more than for a single opening, where ordering the correct hand is simpler.
12) Will the alarmed option on a Sargent 8915 work on a 32 inch door?
No. The AL alarmed option carries a 36 inch minimum door width, so on a 32 inch leaf you would need to order the device without AL and handle the alarm with a separate door position switch or a monitoring option. The 53 latchbolt monitor switch or 55 signal switch in the rail will report the device being used back to a panel without the width restriction.
13) What is the difference between the Sargent 8915 push pad device and a crossbar mortise exit device?
The 8915 is a wide stile mortise exit device in the Sargent 8900 Series, ordered in 32, 36, 42 and 48 inch sizes. A crossbar device carries a horizontal bar across the door face instead: the Von Duprin 8875-3FT is a wide stile crossbar mortise exit device, Grade 1, 36 inch, non-handed, and the Von Duprin 5575-3ft is a narrow stile crossbar mortise device, Grade 1, field reversible. The Von Duprin 9475/9575 Impact Series is a wide stile mortise device with a recessed push pad. All are Grade 1 mortise devices; the operating member and the stile they suit are what separate them.
14) Is there a simpler exit-only mortise device to use where the Sargent 8915 passage lever trim is not needed?
The 8915 is a passage-function device ordered with an ET lever trim, or as exit device only when no outside trim is wanted. If the opening never needs outside access, the Falcon 25-M-EO is a Grade 1 wide stile mortise device supplied exit only for 1-3/4 inch doors, the BEST Precision 2301 Series is an exit-only mortise device with heavy wrought construction, and the Detex 30 Series Advantex is a Grade 1 wide stile device supplied as device only, exit only.
15) Which mortise exit device holds up in an abuse-prone opening like a school corridor or loading area?
The Sargent 8915 is a Grade 1 wide stile mortise device with modular construction for commercial use. Among peers built for rough duty, the Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise device with a recessed push pad, the BEST Precision 2301 Series is a mortise exit device with heavy wrought construction, and the Detex 30 Series Advantex is a Grade 1 wide stile mortise device; note the Detex is not wood door compatible.
16) Which mortise exit devices cover a 42 or 48 inch door opening?
The Sargent 8915 is offered in 32, 36, 42 and 48 inch device sizes, so a single series covers openings up to 48 inches. Among the peers, the Falcon 25-M-EO-3FT is a 36 inch wide stile device, and the Von Duprin 9875-3FT and 8875-3FT are 3 ft devices, the 8875 stated as 36 inch. For wide openings beyond 36 inches, check device length against the door width before substituting.
17) Is a narrow stile mortise exit device a valid substitute for a wide stile one on the same door?
No - stile type is a door prep question, not a preference. The Sargent 8915 is a wide stile device, matched by the Adams Rite 3300 and 8300 Series, Corbin Russwin ED5600AL, Falcon 25-M-EO, Detex 30 Series, Von Duprin 8875-3FT, 9875-3FT and 9475/9575, all wide stile. The Adams Rite 8400 Series and Von Duprin 5575-3ft are narrow stile devices intended for narrow stile doors such as aluminum entrances, and swapping one for the other changes the mounting footprint on the door face.
18) I need to match the finish on the Sargent 8915 to the rest of my building hardware. What finishes are available?
Twelve finishes, covering brass, bronze, stainless and painted: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B dark oxidized satin bronze oil rubbed, 10BE dark oxidized satin bronze, 10BL dark oxidized satin bronze clear coated, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, BSP black suede powder coat and WSP white suede powder coat. 32D satin stainless is the usual default on commercial openings. If you are matching an existing run of doors, match the finish code rather than the description, since three of the dark bronzes look similar on paper and differ in coating.
19) Do all of these Grade 1 mortise exit devices accept alarmed or electric latch retraction options?
The Sargent 8915 can be ordered with electric options including AL alarmed with a 36 inch minimum door width, 53 latchbolt monitor switch, 54 internal micro switch in the ET control, 55 signal switch in rail, 56 remote dogging and latch retraction, 58 electric dogging and 59 Electroguard. The peers in the mortise exit device set - the Adams Rite 3300 and 8300, Corbin Russwin ED5600AL, Falcon 25-M-EO, BEST Precision 2301, Detex 30 Series and the Von Duprin 8875, 9875, 9475/9575 and 5575 - are all mechanical Grade 1 mortise devices where the electrified variant is a separate configuration rather than a shared option list, so an electrified requirement should be specified against the exact series chosen.
