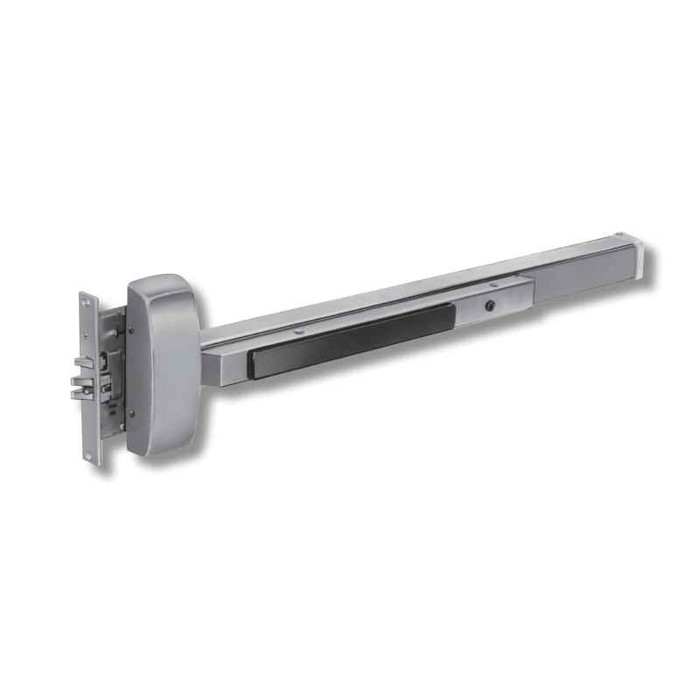

Sargent 8900 Series - (8916) Classroom Trim Function Wide Stile Design Mortise Exit Device

Sargent 8916 Classroom Trim Function Wide Stile Mortise Exit Device

(No reviews yet) Write a Review

Model: 8916E 10BE
From the 8900 Series Collection
$3,195.00
$2,516.27
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,195.00
$2,516.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8900 Series Classroom Function Wide Stile Mortise Exit Device with ANSI/BHMA Grade 1 Performance

Professional Classroom Security Solution

The Sargent 8900 Series Classroom Function Wide Stile Mortise Exit Device delivers professional-grade security designed specifically for educational environments. This mortise exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, ensuring reliable performance in high-traffic classroom applications. Built with a modular design for maintenance-free operation, this device provides unsurpassed security with classroom-specific trim functionality for controlled access applications.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 Performance: Exceeds industry standards for cycle and strength testing, ensuring reliable operation in demanding educational environments.
  • Classroom Trim Function: Specialized trim design provides controlled access functionality ideal for classroom security and emergency egress requirements.
  • Wide Stile Design: Accommodates doors with wider stile dimensions for versatile installation options in various door configurations.
  • Mortise Configuration: Professional mortise installation provides secure mounting and enhanced durability for institutional applications.
  • Modular Design: Maintenance-free construction with modular components allows for easy service and long-term reliability.
  • Heavy-Duty Construction: Built to last the lifetime of the building with robust materials and engineering for continuous operation.
  • Versatile Options: Compatible with delayed egress, alarmed exit, and electric latch retraction options for specialized security applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • School Administrative Buildings
  • Training Centers and Institutes
  • Childcare and Daycare Facilities
  • Community Centers
  • Government Educational Buildings
  • Multi-Purpose Educational Spaces

Why Choose Sargent Quality?

Sargent 8900 Series exit devices deliver professional-grade reliability with modular construction that exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing. Built to last the lifetime of the building with maintenance-free operation, these devices provide unsurpassed security for demanding institutional applications where dependable performance and classroom-specific functionality are essential.

Product Specs

Series:
8900 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Mortise Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Classroom
Grade:
Grade 1
Model Series:
8900 Series
Product Model:
8916
Product Function:
Classroom
Product Category:
Exit Devices and Trim
Collection:
8900 Series
Department:
Door Hardware

Sargent 8916E 10BE – Frequently Asked Questions

1) Is the Sargent 8916 exit device handed, and which hand do I order?
Handing is required on the 8916. It ships either RHR (right hand reverse) or LHR (left hand reverse), and there is no field-reversible option, so the hand has to be right on the order. Stand outside the door: if it swings out toward you and the hinges are on the right, that's RHR. Several wide stile mortise devices are non-handed if you'd rather not commit, including the Von Duprin 9875 and the 8875 crossbar device.
2) What does classroom function mean on a Sargent 8900 Series mortise exit device?
Classroom function on the 8916 means the outside lever is locked or unlocked by key from the outside, and the push pad always gives free egress from inside regardless of how the outside is set. A teacher can lock the corridor side without stepping into the hallway's traffic pattern, and nobody inside is ever locked in. That is the function code on this device, so if you want a lever that is always free from outside you want a passage device instead, not this one.
3) What device size do I order for a 36 inch or 48 inch classroom door?
The 8916 comes in 32, 36, 42 and 48 inch device lengths. Order the length that matches the door width, not something shorter. One catch worth knowing before you spec: if you add the AL alarmed option, the door has to be at least 36 inches wide, so a 32 inch device on a 32 inch door rules the alarm out.
4) Does the Sargent 8916 come with the lever trim or do I order that separately?
Trim is a choice on the order. The 8916 offers ET trim in eight lever designs, A, B, E, F, J, L, P and W, or you can order the device alone with no trim. If you already have Sargent ET trim on the other classroom doors, pick the matching lever letter so the building stays consistent. Choosing device only makes sense when the trim is being reused or supplied on a separate order.
5) I need a fire rated mortise exit device for a classroom corridor door. Is the Sargent 8916 the right one?
Fire rating is not something to assume on an exit device, and where a labeled opening is involved you should be specifying from a device whose rating is on record. Two we carry state it: the Adams Rite 3300 Series is a fire rated Grade 1 wide stile mortise device for wood and hollow metal doors, and the Corbin Russwin ED5600AL is Grade 1 with a 3 hour fire rating and accepts classroom lever trim, which is the closest functional match to a classroom Sargent. On a labeled corridor door, start with one of those.
6) Can a Sargent 8916 mortise exit device go on a narrow stile aluminum storefront door?
No. The 8916 is a wide stile device and needs the stile width to suit. For narrow stile aluminum doors, the Adams Rite 8400 Series is a Grade 1 narrow stile mortise exit device built for aluminum doors, and the Von Duprin 5575 is a Grade 1 narrow stile mortise lock exit device with a crossbar, field reversible, for 1-3/4 inch doors in a 3 foot size. Note that both of those narrow stile devices are supplied without a fire rating, so confirm the opening is not a fire rated assembly before specifying either.
7) What is the closest cross-brand equivalent to a Sargent 8916 mortise exit device with classroom lever trim?
The Corbin Russwin ED5600AL is the nearest match. It is a Grade 1 mortise exit device that is built to accept passage or classroom lever trim, so it covers the same classroom trim function the Sargent 8916 provides, and it is a wide stile device like the 8916. Two differences matter when you order: the Corbin Russwin ED5600AL is 3 hour fire rated and is fitted for 1-3/4 inch doors, and its lever trim is not included with the device, whereas the 8916 is ordered with the ET trim lever style built into the configuration.
8) The opening only needs free egress with no outside lever - what mortise exit device should be used instead of the Sargent 8916?
Use an exit only device. The Falcon 25-M-EO is a Grade 1 wide stile mortise exit device built as exit only for 1-3/4 inch doors in a 36 inch, 3 foot size, and the BEST Precision 2301 is an exit only mortise device with heavy wrought construction. The Detex 30 Series Advantex is also a Grade 1 wide stile mortise device supplied as device only, exit only. The Sargent 8916 carries a classroom function with ET lever trim on the outside, which is the wrong function for an opening that is never entered from the pull side.
9) Which mortise exit device works on a wood door if the Sargent 8916 is not the right choice?
Look at the Adams Rite mortise devices. The Adams Rite 3300 Series is a Grade 1 wide stile mortise exit device for wood and hollow metal doors and is fire rated, and the Adams Rite 8300 Series is a Grade 1 wide stile life safety mortise exit device for wood and hollow metal doors without a fire rating. The Corbin Russwin ED5600AL is another wide stile Grade 1 option and is 3 hour fire rated. Several wide stile mortise devices in this class are hollow metal only - the Von Duprin 8875, the Von Duprin 9875 and the Detex 30 Series are all listed as not wood door compatible.
10) Should I use a mortise exit device or a rim device on a classroom door?
A mortise device like the 8916 puts the lock case inside a pocket cut into the door edge and latches into the frame jamb, which gives a cleaner look and a more secure latch than a surface rim case, but the door has to be prepped for the mortise. A rim device surface mounts and is the easier retrofit on a door that is not already mortised. On a single classroom door into a corridor, mortise is the usual institutional spec. On a pair without a mullion, a mortise device only handles the active leaf.
11) Is the Sargent 8916 rated Grade 1 for a school with heavy traffic?
Grade 1 is the rating on the 8916, the highest ANSI/BHMA level for cycle and strength on exit hardware and what most school districts and institutional specs call for. Every comparable wide stile mortise device we carry sits at Grade 1 as well, including the Corbin Russwin ED5600AL and the Falcon 25-M-EO, so the grade alone will not separate them; function, trim and handing will.
12) I need a classroom mortise exit device but not Sargent. What else works?
The closest cross-brand match is the Corbin Russwin ED5600AL, a Grade 1 wide stile mortise device that accepts passage or classroom lever trim and is listed for 1-3/4 inch doors, with trim sold separately. If you only need free egress and no outside lever at all, the Falcon 25-M-EO, BEST Precision 2301 and Detex 30 Series are exit only wide stile mortise devices, which is a different function than the 8916's classroom trim.
13) Can I put a Sargent 8916 on a wood classroom door?
Nothing in the 8916's data limits it to metal doors, and wood door prep is a question worth settling with the Sargent templates before you cut. Where it matters commercially: several wide stile mortise alternatives are explicitly not wood door compatible, including the Von Duprin 9875, the Von Duprin 8875 and the Detex 30 Series. If the opening is a wood door and you are cross-shopping, those three are out. The Adams Rite 3300 and 8300 Series are built for wood and hollow metal doors.
14) Can we standardize a whole school on the Sargent 8900 Series across different door types?
Across wide stile openings, yes. Order the 8916 in one finish and one ET lever design and you get the same look and the same key routine on every classroom door, with only length and handing changing door to door. Two limits to plan around: narrow stile aluminum entrances will not take this device and need a narrow stile mortise device instead, and any door that needs a function other than classroom, an exit only stair door for example, is a different model in the family rather than a different option on this one.
15) Is a Von Duprin 8875 or 9875 a drop-in substitute for a Sargent 8916?
They are both Grade 1 wide stile mortise exit devices, so they compete for the same opening, but they are not the same device. The Von Duprin 8875 is a crossbar mortise exit device in a 36 inch, 3 foot size and the Von Duprin 9875 is a 3 foot smooth case device; both are non-handed and fitted for 1-3/4 inch doors. The Sargent 8916 is ordered by hand, RHR or LHR, in 32, 36, 42 and 48 inch sizes, and carries a classroom function. Both Von Duprin devices are supplied without a fire rating and are not wood door compatible, and the 8875 uses a crossbar rather than a push pad, which changes the look on a run of doors.
16) What mortise exit device stands up to abuse better than a standard push pad device in a high traffic corridor?
The Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise lock exit device built with a recessed push pad, which pulls the pad back behind the case face where carts and traffic are less likely to strike it. The Detex 30 Series Advantex is another Grade 1 wide stile mortise device, supplied as device only. The Sargent 8916 is a Grade 1 wide stile mortise device as well and adds the classroom lever function on the outside, which the Von Duprin 9475/9575 and the Detex 30 do not carry.
17) Do any of the alternatives to a Sargent 8916 come in a 42 inch or 48 inch size for a wide door leaf?
The Sargent 8916 is ordered in 32, 36, 42 and 48 inch sizes. Among the wide stile mortise alternatives, the Falcon 25-M-EO, the Von Duprin 8875 and the Von Duprin 9875 are each specified at 36 inches or 3 feet, so an oversize leaf is where the 8916 size range does the work. Check the leaf width before substituting a 3 foot device onto a wider opening.
18) What finishes does the Sargent 8900 Series mortise exit device come in for matching existing doors?
Twelve finishes, which is usually enough to match a building already in service: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B oil rubbed dark oxidized satin bronze, 10BE and 10BL dark oxidized satin bronze variants, 20D dark statuary bronze, 32 bright stainless, 32D satin stainless, plus BSP black and WSP white suede powder coat. 32D satin stainless is the common institutional choice for schools. Powder coat in black or white is the one to look at when the openings are painted rather than plated.
