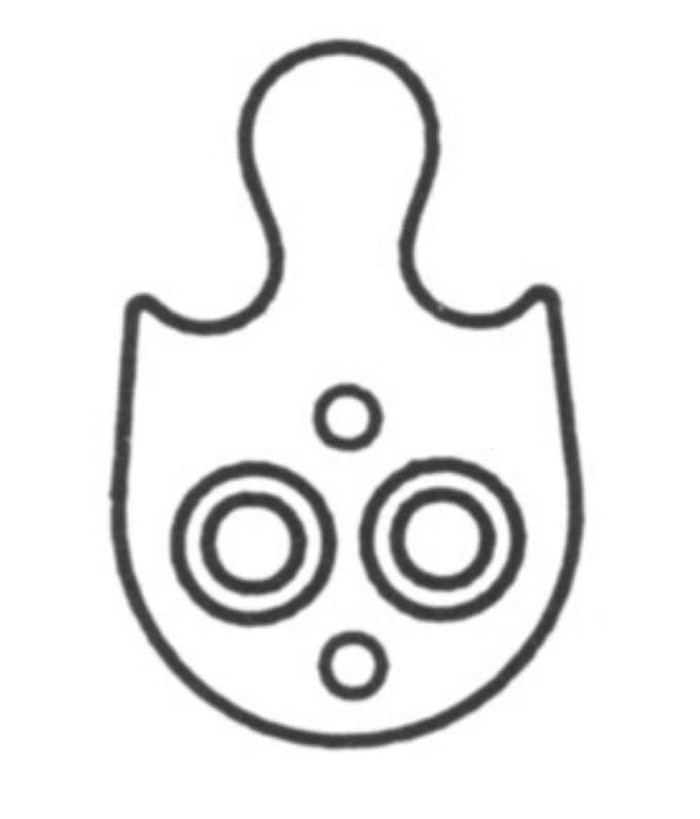

Sargent F1-CAM Cylinder Cams for High-Security Applications

Sargent F1-CAM Cylinder Cams for High-Security Applications

(No reviews yet) Write a Review

Model: SGT-13-2563
From the Keso F1 Key System Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent KESO F1 Cylinder Cams for High-Security Systems

Precision-Engineered Cylinder Components for KESO Systems

Sargent KESO F1 Cylinder Cams are specialized components designed exclusively for use with KESO F1 and KESO security cylinders. These precision-engineered cams provide secure mechanical operation within KESO high-security cylinder systems and are not compatible with conventional SARGENT mortise cylinders. The cams feature removable core compatibility with 170 Series cylinders and specialized configurations including -105, -101, -104, and regular cam 13-2563 for professional locksmith and security system applications.

Professional Features & Benefits

  • KESO System Compatibility: Designed exclusively for KESO F1 and KESO security cylinders, ensuring proper fit and security function within high-security applications.
  • Removable Core Integration: 170 Series removable core cylinders available with specific cam configurations including -105, -101, -104, and regular cam 13-2563 for versatile installation options.
  • Specialized Hotel Function: The 115 cam is uniquely designed to fit limited rotation hotel function cylinders for hospitality security applications.
  • Professional-Grade Construction: Manufactured to SARGENT quality standards for reliable operation in commercial and institutional security systems.
  • System Integration: Compatible with Adams Rite locks and other specified SARGENT hardware configurations for versatile security solutions.
  • Security Assurance: Cannot be used with conventional mortise cylinders, maintaining the integrity of KESO high-security systems.
  • Precision Manufacturing: Engineered to exact specifications for proper mechanical engagement and smooth cylinder operation throughout the full range of motion.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This component is designed for use with compatible KESO F1 and KESO security cylinders. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • High-Security Commercial Buildings
  • Government and Municipal Facilities
  • Healthcare Institution Security Systems
  • Educational Facility Access Control
  • Hotel and Hospitality Security
  • Industrial Facility Protection
  • Financial Institution Security

Why Choose Sargent Quality?

Sargent KESO cylinder cams deliver professional-grade reliability with precision manufacturing designed for high-security applications. Engineered specifically for KESO system compatibility with 170 Series removable core cylinders and specialized cam configurations, these components ensure proper mechanical function and security integrity. Built to demanding commercial standards where dependable security performance is essential for protecting valuable assets and controlling access.

Product Specs

Product Type:
Lock Parts
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Keso F1 Key System
Series:
Cams
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-13-2563 – Frequently Asked Questions

1) Will a Sargent KESO F1 cam work on a standard Sargent mortise cylinder?
No. The KESO F1 cams are built for KESO F1 and KESO security cylinders only, and they will not work on conventional Sargent mortise cylinders. If you're rebuilding a standard mortise cylinder, you need a conventional Sargent mortise cam instead. Ordering a KESO cam for a standard cylinder gets you a part that won't engage.
2) Which Sargent KESO cam do I order for a 170 Series removable core cylinder?
The 170 Series removable core cylinders take specific cam configurations: -105, -101, -104, or the regular cam 13-2563. Pick the one that matches the lock case the cylinder drives. The 101 and 105 are both orderable as cam options on the KESO F1 cam line, along with a Standard cam.
3) What cam do I need for a hotel function KESO cylinder?
The 115 cam. It's the one made to fit limited rotation hotel function cylinders, which only turn through a restricted arc rather than a full rotation. Standard cams won't index correctly in that application. The 115 is an orderable cam option on the Sargent KESO F1 cam line.
4) Can I use a Sargent KESO cylinder on an Adams Rite lock?
Yes, within the cam range. Sargent KESO cams cover Adams Rite locks along with other specified Sargent hardware, so a KESO F1 cylinder can be set up to drive an Adams Rite lock with the right cam. Adams Rite cases are common on aluminum storefront doors, which is where glass front installers usually run into this.
5) What cam options come on the Sargent KESO F1 cylinder cams?
Eight cams are offered: 101, 105, 106, 115, 4152, 4152-2, Standard, and a Key Switch cam. The Key Switch cam is the one for cylinders driving a key switch rather than a lock case, and the 115 handles limited rotation hotel function cylinders. Match the cam to the device the cylinder operates, not to the cylinder itself.
6) I'm standardizing a facility on KESO F1 keying. Are these cams part of that system?
They are. These cams belong to the KESO F1 key system and are commercial-rated components, so they fit a facility already keyed to KESO F1 across offices, healthcare, education, or government openings. The cam doesn't change the keying; it's the driver that translates cylinder rotation into lock throw. Your key system stays as-is and the cam is chosen per lock case.
7) My KESO cylinder turns but the lock won't throw. Do I need a new cylinder or just a cam?
Usually just the cam. If the key turns the plug freely but the bolt doesn't move, the cam is either the wrong configuration for that lock case or it's damaged. These are sold as replacement parts, so you can re-cam a working KESO F1 cylinder rather than replace the whole cylinder. Match the replacement to the lock the cylinder drives: 170 Series removable core cylinders use -105, -101, -104, or regular cam 13-2563.
8) Is a KESO F1 cam interchangeable with a standard Sargent cam of the same number?
Treat them as separate parts. The KESO cams are made for KESO F1 and KESO security cylinders and are explicitly excluded from conventional mortise cylinders, so a matching number on a conventional Sargent cam is not a substitute. Order the cam from the KESO F1 line when the cylinder is a KESO cylinder.
