Sargent 34-RG-32D Rim Cylinder...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$80.31

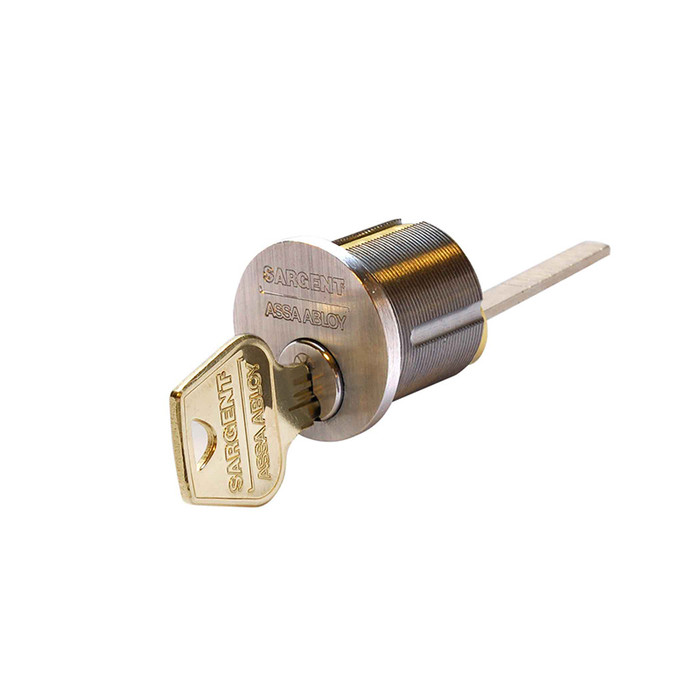

Sargent Rim Cylinder, RG Keyway, 6-Pin, 1-Bitted, 2 Nickel Silver Keys, 630/US32D Stainless Steel

Sargent 34-RG-32D Rim Cylinder with RG Keyway 6-Pin Configuration and Stainless Steel Finish

(No reviews yet) Write a Review

Model: SGT34-RG-32D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Professional Rim Cylinder with RG Keyway 6-Pin Configuration Stainless Steel

Professional Rim Cylinder Security Solution

The Sargent Professional Rim Cylinder delivers commercial-grade security with RG keyway configuration and 6-pin tumbler system. This rim cylinder features 630/US32D stainless steel finish for superior corrosion resistance and includes 2 nickel silver keys. Factory-bitted for immediate installation in compatible rim lock applications, providing reliable security for demanding commercial environments.

Professional Features & Benefits

  • Advanced 6-Pin Tumbler System: Enhanced security configuration provides superior key control and pick resistance for commercial applications.
  • RG Keyway Compatibility: Standard RG keyway allows seamless integration with existing Sargent keying systems and master key programs.
  • Stainless Steel Construction: 630/US32D stainless steel finish provides exceptional corrosion resistance and maintains appearance in demanding environments.
  • Factory Bitted Configuration: Pre-cut and ready for installation, reducing setup time and ensuring proper operation from day one.
  • Premium Nickel Silver Keys: Includes 2 durable nickel silver keys that resist wear and maintain smooth operation over extended use.
  • Rim Lock Integration: Designed specifically for rim lock applications with standard threading and mounting configuration for universal compatibility.
  • Commercial-Grade Security: Precision manufacturing and quality materials meet professional security requirements for critical applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent rim cylinders deliver professional-grade reliability with precision-manufactured 6-pin tumbler systems and corrosion-resistant stainless steel construction. Factory bitting and included nickel silver keys ensure immediate installation readiness and long-term performance. Engineered for demanding commercial applications where dependable security and key control are essential.

Product Specs

Product Category:
Mechanical Locks
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Product Type:
Cylinders
Subcategory:
Parts and Accessories
Department:
Door Hardware

Sargent SGT34-RG-32D – Frequently Asked Questions

1) Will a Sargent 34 rim cylinder work with my existing Sargent RG keyway master key system?
The 34-RG-32D is cut on the RG keyway, so it drops into an existing Sargent RG keying system and can be worked into an RG master key program. It ships factory bitted with 2 nickel silver keys, which means it arrives on its own random cut, not on your system's bitting. A locksmith rekeys the 6-pin plug to your change key and master before it goes in the door. If your building is keyed on a different Sargent keyway, this cylinder is the wrong one to order.
2) What is the difference between a rim cylinder and a mortise cylinder, and which one does my exit device take?
A rim cylinder like the Sargent 34 mounts from the inside face of the door with a back plate and two machine screws, and drives the lock through a flat tailpiece. A mortise cylinder threads into the lock body and drives a cam instead. Rim exit devices and rim night latches take the rim cylinder; mortise locks and mortise exit devices take the threaded mortise cylinder. They are not interchangeable, so check which one your device is prepped for before ordering. The 34-RG-32D is the rim type.
3) Does a factory bitted Sargent rim cylinder come keyed alike if I order several?
No. Factory bitted means each cylinder ships pre-cut on its own bitting with 2 nickel silver keys, not matched to each other. If you need a set of doors on one key, or the cylinders folded into a building master, plan on having them rekeyed on the RG keyway after they arrive. For a single door replacement where a new key is fine, it works straight out of the box.
4) How many pins does the Sargent 34-RG rim cylinder have, and does the pin count have to match the rest of my building?
Six pins. That matters more than it sounds: a 6-pin cylinder can be keyed into a 6-pin system, but mixing 5-pin and 6-pin cylinders on the same master key system is a keying decision your locksmith has to plan around, not something you can sort out at the door. If the rest of your Sargent openings are 6-pin RG, this one lines up with them.
5) Is 630 / US32D stainless steel finish going to hold up on an exterior door?
Satin stainless, 630 in the BHMA code and US32D in the older US system, is the standard commercial choice for exterior and high-traffic openings because stainless resists corrosion rather than relying on a plating that wears through. It is the same finish specified on most commercial exit devices and pulls, so a 34-RG cylinder in 32D matches the trim already on a typical storefront or institutional door.
6) Can I use one rim cylinder to replace the one in my storefront night latch?
If the existing cylinder is a rim cylinder driven by a flat tailpiece, the Sargent 34-RG is the right form factor for that swap. What decides it is the keyway: this one is RG, so the new cylinder will not accept keys from a different keyway family. Either rekey it to your existing RG bitting or accept a new key for that door.
7) What comes in the box with the Sargent 34-RG-32D rim cylinder?
The cylinder itself in 630/US32D stainless, cut and ready to use, plus 2 nickel silver keys. Tailpiece length and the mounting plate for your specific device are governed by the lock or exit device you are fitting it to, so pull the old cylinder first and match what is behind it before you order the job's quantity.
8) Why nickel silver keys instead of brass on a commercial cylinder?
Nickel silver is harder than standard brass, so the cuts on the key hold their shape through years of daily use instead of rounding off and starting to stick. On a multi-tenant or institutional opening that sees hundreds of cycles a week, that is the difference between a key that still turns cleanly in year three and one that needs recutting. The 34-RG ships with two of them.
