Sargent 10-C8-1 Signature Bore...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$254.20
Sargent Sargent Signature 9, 8 Line Series Bored Lock Cylinders SGT-10-C8-1

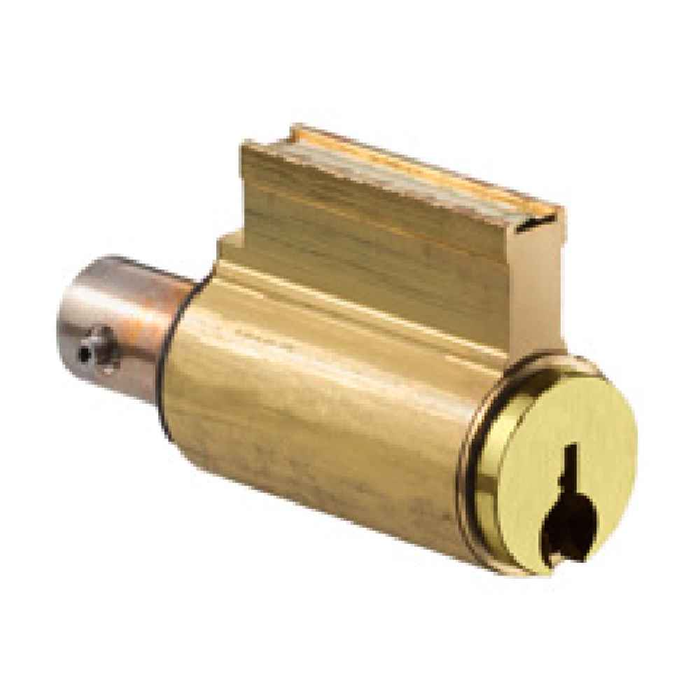

Sargent 10-C8-1 Signature Bored Lock Cylinders with Protected Key Control

(No reviews yet) Write a Review

Model: SGT-10-C8-1 4
From the Signature Key System Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$254.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Signature 9 8 Line Series Bored Lock Cylinders with Protected Key Control System

Advanced Security Cylinder System with Protected Key Design

The Sargent Signature 9 8 Line Series Bored Lock Cylinders deliver enhanced security through protected key control and manipulation-resistant design. This advanced cylinder system features a unique 6-pin configuration with 2 added blocking bars and factory-loaded side pins that work exclusively with corresponding dimpled keys. The protected key design prevents unauthorized key duplication while maintaining compatibility with existing Sargent keyways for seamless system integration.

Professional Features & Benefits

  • Advanced Cylinder Design: 6-pin cylinder with 2 added blocking bars and shear lines work in conjunction with factory-loaded side pins for enhanced manipulation resistance.
  • Protected Key Control: Exclusive end-user pattern with dimpled key design prevents unauthorized key duplication and provides superior key control management.
  • System Compatibility: Signature keys operate both Signature and non-Signature cylinders while non-Signature keys cannot access Signature cylinders for flexible security levels.
  • Existing System Integration: Easily blends into most existing Sargent key systems allowing one master key to open both Signature and non-Signature cylinders.
  • Keyway Versatility: Available in the majority of Sargent keyways to provide perfect solutions for upgrading control levels in existing masterkey systems.
  • Variable Pin Configuration: Side pin depths and locations vary to ensure only corresponding dimpled keys can operate the cylinder mechanism.
  • Minimal Upgrade Effort: Ideal for existing facilities wanting to upgrade to protected key systems without extensive system overhaul.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent Signature Series cylinders provide professional-grade security with advanced 6-pin cylinder construction and protected key design engineered for demanding commercial applications. The unique blocking bar system and factory-loaded side pins deliver manipulation-resistant performance while maintaining seamless integration with existing key systems. Engineered for facilities requiring enhanced key control without compromising operational flexibility.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Signature Key System
Series:
C8 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-10-C8-1 4 – Frequently Asked Questions

1) Will a Sargent Signature cylinder work in my existing Sargent master key system?
Yes. The Signature 8 Line bored lock cylinder blends into most existing Sargent key systems, so a single master key can operate both Signature and non-Signature cylinders. It's available in the majority of Sargent keyways, which is what makes it a practical way to raise key control on selected doors without rebuilding the whole system.
2) Can someone with a regular Sargent key open a Signature cylinder?
No. Signature keys operate both Signature and non-Signature cylinders, but a non-Signature key will not turn a Signature cylinder. The Signature cylinder is a 6-pin design with 2 added blocking bars and shear lines working with factory-loaded side pins, and only a dimpled key with the matching side pin depths and locations will release them. That one-way relationship is how you create a higher security tier on specific doors while keeping the building's existing keys working everywhere else.
3) What stops tenants from getting Signature keys copied at a hardware store?
The Signature key is an exclusive end-user pattern with a dimpled blade, and the cylinder's side pins are factory loaded to depths and locations that only that pattern matches. A hardware store blank won't cut a working key, which is the point of the protected key control on these cylinders for multi-tenant, healthcare, and school properties where keys wander.
4) Do I have to specify keying when I order these Sargent Signature cylinders?
Yes, keying is a required selection. You choose standard keying, KD (keyed different, every cylinder on its own key), or KA (keyed alike, a group of cylinders all operating from one key). For a building where a super or maintenance tech covers a run of doors, KA on that group plus your existing Sargent master is the usual setup.
5) Is the 10-C8-1 a replacement cylinder for a bored lock, or a whole lockset?
It's the cylinder only, a replacement part for Sargent 8 Line bored (cylindrical) locks. You reuse the existing lockset and chassis and swap the cylinder, which is why upgrading a facility to protected key control takes minimal effort. If the lock body itself is worn or you need a different function, you'll need a complete bored lock instead.
6) Can I upgrade only some doors to Signature and leave the rest alone?
That's exactly what the system is built for. Put Signature cylinders on the doors that need tighter control, exterior entries, IT rooms, pharmacy, records, and leave standard Sargent cylinders elsewhere. The master key still opens both, and the Signature-keyed doors simply can't be opened by the lower-level keys. No need to rekey the whole building at once.
7) What finishes does the Sargent 10-C8-1 Signature cylinder come in?
Two: 04 satin brass with clear coat, and 15 satin nickel plated with clear coat. Pick the one that matches the lock trim already on the door, since the cylinder face is the visible part once it's installed.
8) Is the Sargent Signature cylinder suitable for residential doors?
It's built for commercial openings, offices, schools, hospitals, retail, warehouses, government buildings, and multi-tenant residential. The Signature key system it belongs to is a facility-level key control program, so a single-family house gets little out of it. Apartment and condo portfolios, where key control across many units is the real problem, are a different story.
