Sargent 11737P-34 Rim Cylinder...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$280.13
Sargent Sargent XC 11737P-34 Rim Cylinder SGT-11737P-34

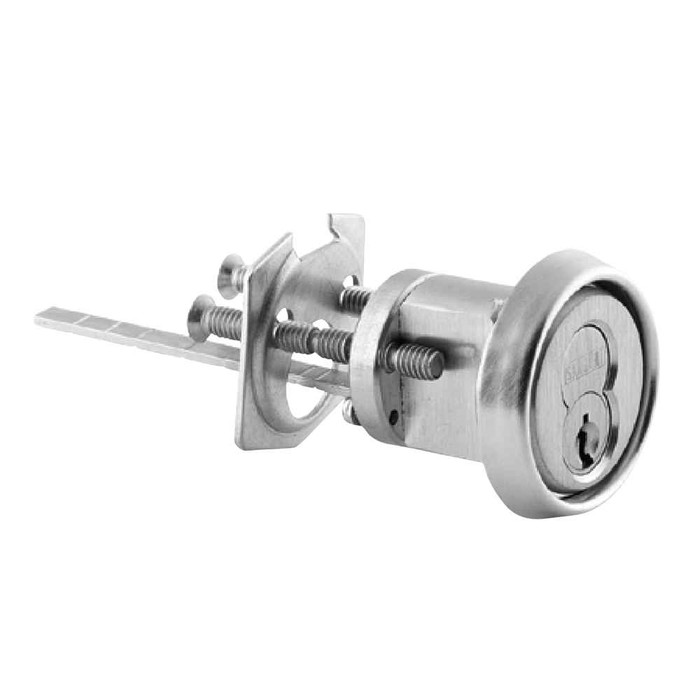

Sargent 11737P-34 Rim Cylinder with Brass Construction and 7-Pin Core Compatibility

(No reviews yet) Write a Review

Model: SGT-11737P-34
From the XC Key System Collection
$280.13
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$280.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent XC Rim Cylinder with 7-Pin Core Compatibility and Brass Construction

Professional Rim Cylinder for Commercial Security Applications

The Sargent XC Rim Cylinder delivers professional-grade security with brass cylinder and housing construction. This rim cylinder is specifically designed to accept 7-pin cores only and features mounting holes positioned to match Sargent hardware configurations. Complete with break-off screws and back plate for secure installation in commercial applications.

Professional Features & Benefits

  • Heavy-Duty Construction: Durable brass cylinder and housing provide long-lasting performance and corrosion resistance for commercial applications.
  • Enhanced Security Design: Housing accepts 7-pin cores only for enhanced security and key control in professional environments.
  • Complete Installation Kit: Furnished with break-off screws and back plate for secure mounting and tamper resistance.
  • Sargent Hardware Integration: Mounting holes located to match Sargent hardware for seamless compatibility with existing systems.
  • XC Series Compatibility: Part of the comprehensive Sargent XC key system for integrated access control solutions.
  • Multiple Finish Options: Available in finishes 3, 4, 9, 10, 10B, 10BE, 10BL, 14, 15, 20, 26, 26D, BSP, and WSP to match architectural requirements.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and mounting location for rim cylinder installation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface.
  3. Prepare door by drilling required holes as specified in manufacturer instructions.
  4. Install rim cylinder using provided break-off screws and secure back plate to door per manufacturer specifications.
  5. Install 7-pin core into cylinder housing ensuring proper alignment and operation.
  6. Test cylinder operation with appropriate key to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent XC rim cylinders deliver professional-grade reliability with brass construction engineered for demanding commercial applications. The 7-pin core compatibility and integrated hardware mounting ensure secure, long-term performance where dependable access control is essential.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
XC Key System
Series:
34 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-11737P-34 – Frequently Asked Questions

1) Will the Sargent 11737P-34 rim cylinder accept a 6-pin core?
No. The 11737P-34 housing is built to take 7-pin cores only. If your existing key system runs 6-pin cores, this housing will not work with them and you need a 6-pin rim housing instead. Confirm the pin count on the cores you are already keying before you order.
2) What has to be specified when ordering a Sargent 11737P-34 rim cylinder?
Three things get picked at order time: finish, keyway, and keying. Keyway is either 4A or 4B. Keying is Standard Keying, KD (keyed different), or KA (keyed alike). If you are adding a door to an existing building master key system, the keyway has to match what is already in the building or the key will not enter.
3) Will this rim cylinder line up with the tailpiece holes on my Sargent exit device?
The 11737P-34 has its mounting holes located to match Sargent hardware, so it drops onto Sargent rim exit devices without redrilling the back plate. On a non-Sargent device the hole pattern and tailpiece requirement may differ, so check the device manufacturer's cylinder call-out before substituting.
4) Is a rim cylinder the right type for my door, or do I need a mortise cylinder?
A rim cylinder like the 11737P-34 is the one that mounts through the door with a back plate and break-off screws and drives a rim exit device or rim night latch from behind. If your lock body is a mortise case set into the edge of the door, you need a threaded mortise cylinder with a cam instead, not this. Rim and mortise cylinders are not interchangeable even within the same keyway.
5) Does the Sargent 11737P-34 rim cylinder come with mounting hardware?
It ships with break-off screws and a back plate, so the mounting hardware for the cylinder itself is in the box. You still supply the 7-pin core and the key. The break-off screws are cut to length during install so no excess tail sits behind the device.
6) Which finish of the Sargent XC rim cylinder matches the rest of my door hardware?
Fourteen finishes are offered: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B oil rubbed dark oxidized satin bronze, 10BE dark oxidized satin bronze, 10BL dark oxidized satin bronze clear coated, 14 bright nickel, 15 satin nickel, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, BSP black suede powder coat, and WSP white suede powder coat. For a building standardized on US26D brushed chrome look, 32D satin stainless is the closest match in this range.
7) Can I use this cylinder to standardize a whole building on one key system?
The 11737P-34 is part of the Sargent XC key system, so it keys into an XC hierarchy alongside other XC cylinders across a facility. Order KA (keyed alike) where a group of doors should share one key, or KD where each opening needs its own. For a multi-building or master keyed schedule, supply the existing keyway (4A or 4B) so the new cylinders fall into the same system.
8) Is the Sargent 11737P-34 a brass cylinder or plated steel?
Both the cylinder and the housing are brass. Brass is what gives it corrosion resistance on exterior and high-humidity openings, which is why it holds up on storefront and stairwell doors rather than only interior use. The plating on top is whichever finish code you order.
9) Is the Sargent XC 11737P-34 rim cylinder suitable for a high-traffic commercial opening?
It is a commercial-duty part, brass built, used on office buildings, schools, hospitals, retail, warehouses, multi-tenant residential, and government facilities. For a property manager replacing a worn cylinder on a busy entrance, it is a like-for-like commercial replacement rather than a residential-grade part.
