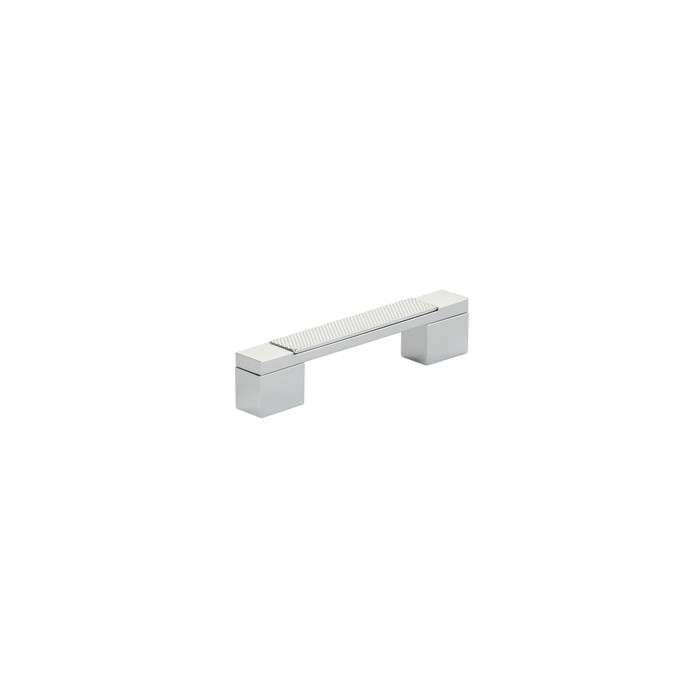

Schaub 211001 4" Center to Center Urbano Cabinet Pull

M4 metric thread. That matters if you are reusing hardware from an older set of pulls, because a lot of North American cabinet hardware runs 8-32 rather than M4, and the two are not interchangeable. Order the correct M4 machine screws in the length that suits your drawer front or door thickness.

Projection is 1 inch off the face of the door or drawer, with a 3/4 inch base dimension where it meets the front. That 1 inch stand-off gives normal grip clearance, and it is the number to check on a drawer that opens beside a wall, a corner return, or an appliance panel, where the pull is what hits first.

The Schaub 211001 Urbano pull is fixed at 4 inch center to center with a 4-1/2 inch overall length. For narrower fronts, the Deltana SBP35 modern square bar pull is 3-1/2 inch center to center, the Trimco 553 series drawer pull is 3 inch center to center, and the Trimco 562 series lists a 3-1/2 inch option in addition to 4 inch and 96mm.

The Omnia 1968/102 modern cabinet pull is built to 4 inch center-to-center spacing, the same hole pattern the Schaub 211001 Urbano pull uses, so it drops onto existing 4 inch drilling without new holes. The Trimco 562 series drawer pull also lists a 4 inch center-to-center option alongside its 3-1/2 inch and 96mm options. The Omnia 1968/102 is forged solid brass, where the Urbano pull is zinc base material with a 1 inch projection and a 4-1/2 inch overall length.

Five: Polished Chrome, Brushed Nickel, Gun Metal, Matte Black, and Signature Satin Brass. For a multi-unit or whole-kitchen job, that spread lets you hold one pull profile across bright, brushed, dark, and brass schemes, so the specification stays constant while the finish changes per unit or per room.

Zinc base material, not solid brass. For residential kitchens, baths, and multi-family turnovers that is standard and holds finish well. If your spec calls for solid brass, the Deltana SBP35 Modern Square Bar Pull and the Omnia 1968/102, which is also a 4 inch center-to-center pull, are forged or solid brass options.

A pull spreads the grip across two screws and gives a full-hand hold, which is what you want on drawers, heavy doors, and anywhere a tenant or staff pulls hard. The Urbano 211001 is that type, 4 inch centers with 1 inch projection. A single-screw knob suits small doors and tight stiles: the Orca Bachelor round knobs at 1-1/4 inch diameter, the ring version, or the Blackcomb 25mm square knob. Knobs also mount in one hole, so no two-hole drilling jig is needed.

Emtek sells the Schaub Collection cabinet hardware, including the Emtek 8405 Select, Alexander, Art Deco and Bar cabinet pulls. Those are Schaub Collection designs offered under Emtek, so they share the same design family as the Schaub 211001 Urbano pull, which is a contemporary style pull from the Urbano collection. They are separate series, so the styling differs; check the center-to-center of the Emtek part you pick against the 4 inch spacing the Urbano pull uses before mixing them on the same run of drilling.

No. The Orca Hardware CK-15030 and CK-16030 Bachelor Collection parts and the CK-17025 Blackcomb square part are cabinet knobs, mounted on a single screw hole. The Schaub 211001 Urbano pull is a cabinet pull on two holes at 4 inch center to center with an M4 thread. Swapping to a knob leaves one of the two existing holes exposed on the drawer front.

The Schaub 211001 Urbano pull has a 1 inch projection. For more knuckle room, the Omnia 1969 and Omnia 1971 modern cabinet pulls are built to a 1-3/16 inch projection and the Omnia 1970 to a 1-1/4 inch projection, all in forged solid brass. That extra projection matters on gloved hands and on inset doors where the face sits back from the frame.

The Schaub 211001 Urbano pull is stocked in Polished Chrome, Brushed Nickel, Gun Metal, Matte Black and Signature Satin Brass, so a full turnover can be standardized on one part number across five finishes at a single 4 inch center-to-center spacing. If a room needs a different design in a coordinated finish, the Emtek Select 8405, Alexander, Art Deco and Bar pulls are Schaub Collection designs offered under Emtek and are the nearest design family to the Urbano.

Yes. It is a pull, mounted on two M4 screws at 4 inch centers, so it goes on drawer fronts and door stiles alike as long as the stile is wide enough to take the 3/4 inch base without crowding the edge. Where a wide bank of drawers wants a longer pull, keep the profile and step up in size rather than mixing collections.

The Orca Hardware CK-12001 T-pull bar is a steel pull with a 2 inch bar width in satin nickel. The Schaub 211001 Urbano pull is zinc base material with a 3/4 inch base dimension and a 4-1/2 inch overall length. The Orca CK-12001 is a different material and profile, so confirm its mounting spacing against your existing 4 inch drilling before ordering it as a replacement.

No. The SDC SP50 is a 50mm spindle for door controls, a door lock component rather than cabinet hardware. The Schaub 211001 Urbano is a cabinet pull that mounts with M4 screws on 4 inch center-to-center drilling; there is no spindle in the assembly.
