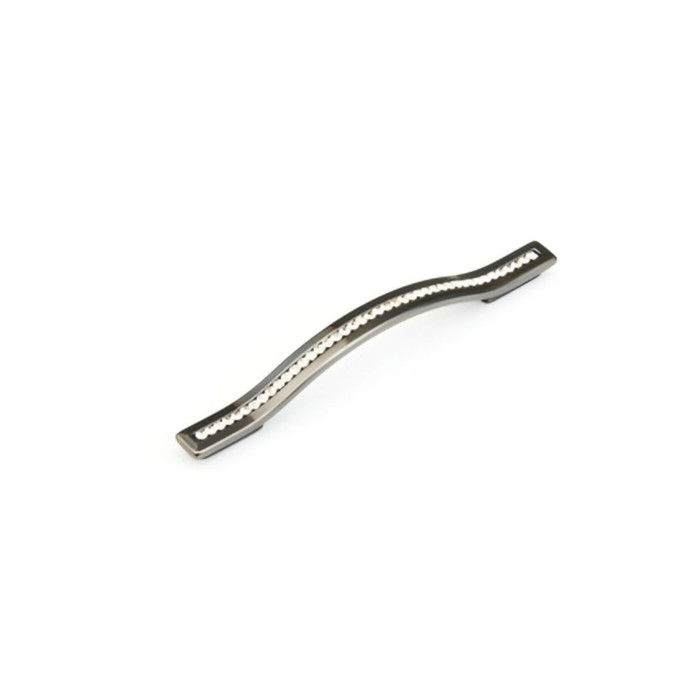

Schaub 302 128mm to 160mm Center to Center Skyevale Cabinet Pull with Crystal

Mounting is M-4 metric machine screws, 1 inch long. That length covers a standard 3/4 inch cabinet door or drawer front with thread to spare. If you're mounting through a thicker slab front, a false front plus a drawer box wall, or adding a backplate, you'll need longer M-4 screws, since the supplied 1 inch will bottom out.

Look at the Emtek 8405 Select cabinet pull from the Schaub collection. It is the same collection lineage as the Schaub 302 Skyevale, and it is catalogued as a cabinet knob/pull in the Emtek SELECT series, so it covers the same job of pulling a door or drawer front. The Schaub 302 carries a 128/160 mm center-to-center drilling and a 7-1/2 inch overall length, so if you swap you will want to confirm the Emtek SELECT drilling matches the holes already bored.

The Schaub 302 Skyevale pull has a zinc base material. If your spec calls for solid brass, the Omnia 1968/102 is a forged solid brass modern cabinet pull with 4 inch center-to-center spacing, and the Deltana SBP35 is a heavy-duty solid brass square bar pull at 3-1/2 inches. Both are shorter drillings than the Schaub 302's 128/160 mm, so on a retrofit you would be boring new holes rather than reusing the existing ones.

No - those are single-hole knobs, not two-hole pulls. The Orca CK-15030 and CK-16030 are round cabinet knobs at 1-1/4 inch diameter, and the Orca CK-17025 is a square knob at 25mm diameter. The Schaub 302 Skyevale is a cabinet pull drilled 128/160 mm center-to-center, so a knob leaves one of the two bored holes exposed. Knobs are a substitute only where you are drilling fresh or filling and refinishing the front.

Not without new drilling. The Trimco 553 series is a 3 inch center-to-center drawer pull and the Trimco 562 series offers 3-1/2 inch, 4 inch, and 96mm center-to-center. The Schaub 302 Skyevale is drilled 128/160 mm, so none of those spacings line up with existing holes. Trimco drawer pulls are the choice when you are specifying fresh millwork or institutional casework rather than matching an existing bore pattern.

Projection is 1-1/8 inches off the face, with the same 1-1/8 inch base dimension at the mounting posts. That matters in a galley kitchen or a tight hallway of cabinets, where a deeper pull catches hips and pockets. Overall length is 7-1/2 inches, so on 128mm centers there's roughly an inch of pull body past each screw.

7-1/2 inches is the overall length, so the drawer front has to be wider than that with margin on each side for the pull to look right and for your fingers to clear the edge. On narrow drawers or on cabinet doors with a slim rail, it will crowd. Measure the flat face, not the door width, if you have raised panel or shaker fronts.

Base material is zinc, with a crystal accent in the body. Zinc die cast is a plated finish over a cast core, which is fine for residential and light commercial cabinetry but takes chips and finish wear harder than solid brass. For a high-turnover multifamily unit or a commercial break room where pulls get hit with carts, a solid brass bar pull like the Deltana SBP35 or the Omnia 1968 series is a tougher body.

Six: Satin Nickel, Polished Chrome, Black Chrome, Milano Bronze, Milano Silver, and Signature Satin Brass. If you're matching an existing kitchen, Satin Nickel and Polished Chrome are the two that read closest to common builder hardware; Milano Bronze and Milano Silver are Schaub's own hand-applied tones and won't have an exact equivalent in another brand's line.

The 302 Skyevale covers 128mm and 160mm centers at 7-1/2 inches overall, which handles standard drawers and doors. Small spice pullouts and narrow banks won't take it. Schaub's Skyevale collection runs in matching profiles and finishes for those, so specify by the collection name and keep the finish code consistent across the order. Mixing a different brand's satin nickel next to Schaub's will show.

The Skyevale 302 is a contemporary pull with a crystal element, so it's a decorative choice for a kitchen, vanity, or built-in where the hardware is meant to be seen. If the job is a rental, an office casework package, or anywhere pulls are utilitarian, a plain bar is the better call: the Orca CK-12001 T-pull bar in steel, or an Omnia 1969 or 1971 forged brass pull at 1-3/16 inch projection, both give you a clean profile with nothing to catch or chip.

The Schaub 302 Skyevale pull has a 1-1/8 inch projection. Among modern pulls, the Omnia 1969 and Omnia 1971 both carry a 1-3/16 inch projection and the Omnia 1970 a 1-1/4 inch projection, so those stand slightly further off the face rather than closer to it. If clearance to an adjacent wall or appliance is the constraint, measure the swing before you commit to any of them.

For a stripped-down bar profile, the Emtek Bar cabinet pull from the Schaub collection and the Orca CK-12001 T-pull bar in steel with a 2 inch bar width are both straight-bar designs with no ornament. The Deltana SBP35 is a modern square bar pull in solid brass at 3-1/2 inch. All three read as plain bar hardware where the Schaub 302 Skyevale is a contemporary pull with a crystal element.

The Emtek Alexander cabinet pull and the Emtek Art Deco cabinet pull are both Schaub collection pulls, in the Alexander and Art Deco series respectively, so they give you a different design language while staying in the same collection as the Schaub 302 Skyevale. Check the drilling on whichever series you pick against the 128/160 mm center-to-center you would be replacing.

The Schaub 302 Skyevale is drilled to accept both 128 mm and 160 mm center-to-center in a single part, with a 7-1/2 inch overall length and M-4 metric screws 1 inch long. On the Omnia side, the 1968/102 is a 4 inch center-to-center pull, and the 1969, 1970, and 1971 are separate modern pull series with 1-3/16 inch, 1-1/4 inch, and 1-3/16 inch projections. Standardizing on Omnia means picking a series per opening; the Schaub 302 covers two common metric bores with one part number and one screw size to stock.

They're related lines, not the same part. Emtek sells a Schaub Collection that includes the 8405 Select, Alexander, Art Deco, and Bar cabinet pulls, each its own series. The Skyevale 302 is a Schaub-branded contemporary crystal pull on 128/160mm centers. If a spec sheet calls out an Emtek Schaub Collection series by name, order that series, not the 302.

Yes, Schaub publishes a Proposition 65 warning for this pull for California residents, linked through Schaub and Company's product stewardship information. If you're a California specifier or a facilities buyer with disclosure requirements on your submittal package, pull the warning language from that stewardship page for your file.

It works anywhere the hole spacing and face width allow. At 128mm or 160mm centers, 7-1/2 inches overall and 1-1/8 inch projection, it suits bath vanity drawers, closet built-ins, and furniture-grade casework as readily as kitchen fronts. The crystal detail and the six finishes are why it gets specified on visible millwork rather than back-of-house cabinetry.

No. The SDC SP50 is a 50mm spindle for door controls - it carries a lever or knob through a door lock, and has nothing to do with cabinetry. The Schaub 302 Skyevale is a cabinet pull mounted through a cabinet or drawer front with M-4 metric screws 1 inch long. If you are replacing fasteners on the Schaub 302, you are looking for M-4 machine screws, not a spindle.
