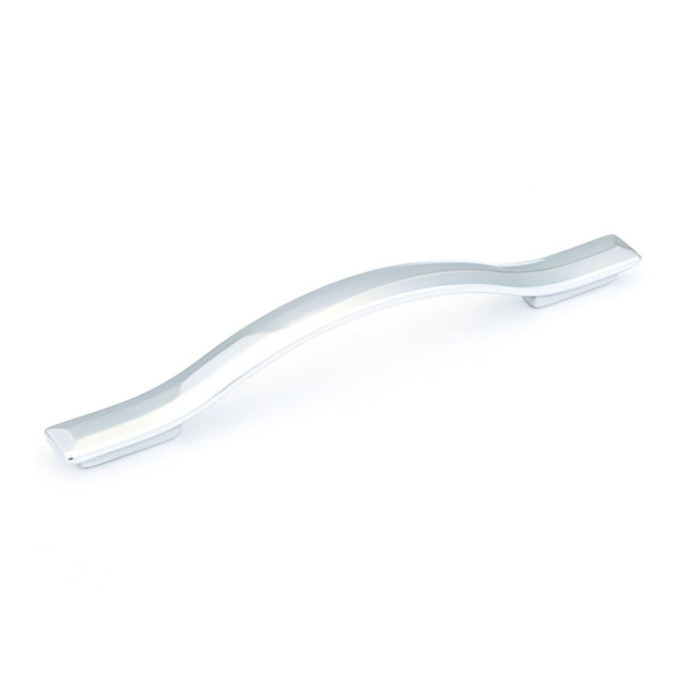

Schaub 305 128mm to 160mm Center to Center Skyevale Cabinet Pull

The Skyevale 305 is drilled to mount at either 128mm or 160mm center to center, so it covers both of the common metric spacings without redrilling. If your doors are already bored on 128mm centers, mount it there; if you are moving to 160mm on a new run of drawers, the same pull works. Overall length is 7-1/2 inches, so allow for that on narrow drawer fronts.

It takes M4 metric screws, supplied 1 inch long. That length covers a standard 3/4 inch cabinet door or drawer front with room to thread in. If you are going through a thicker slab front or adding a backer, you will need longer M4 machine screws, not the standard 8-32 you may have in the truck. Metric thread, so 8-32 will not pick up.

The Schaub 305 Skyevale is a contemporary-style cabinet pull built on a zinc base material. If the specification calls for solid brass, the Omnia 1970 modern cabinet pull is forged solid brass and carries a 1-1/4 inch projection, close to the 1-1/8 inch projection of the Skyevale. The Omnia 1969 and Omnia 1971 are also forged solid brass modern pulls at 1-3/16 inch projection. All three sit slightly further off the door face than the Skyevale, which matters if your drawer fronts are tight to an adjacent wall or appliance.

The Schaub 305 Skyevale has a 7-1/2 inch overall length, which needs a reasonably wide drawer or door stile. For narrower fronts, the Trimco 553 Series drawer pulls are 3 inch center-to-center, and the Trimco 562 Series offers 3-1/2 inch, 4 inch, and 96 mm center-to-center options. The Deltana SBP35 modern square bar pull is a 3-1/2 inch heavy-duty solid brass option. Any of those keeps a much shorter footprint than the Skyevale.

Projection is 1-1/8 inches from the face of the door or drawer to the back of the grip. That is enough hand clearance for a full grip, and it matters where a pull sits near a wall return or a perpendicular cabinet run, since the handle plus your fingers need roughly two inches of swing space.

Six finishes: Satin Nickel, Polished Chrome, Black Chrome, Milano Bronze, Milano Silver, and Signature Satin Brass. That is the full range on the 305, so if you are standardizing an entire kitchen or a multi-unit package, pick one and order the same code across every opening. Finish codes run SN, PC, BC, MBZ, MSV and SSB.

The 305 only drills at 128mm and 160mm, so it is not the part for a 3 inch bank of spice drawers. For shorter spacings, the Trimco 553 Series drawer pull is 3 inch center to center, and the Trimco 562 Series offers 3-1/2 inch, 4 inch and 96mm. Omnia's 1968/102 is a 4 inch center-to-center modern pull. Matching the style across sizes matters more than matching the brand, so pick by profile and finish.

Emtek carries a Schaub Collection of cabinet pulls that includes the 8405 Select, the Alexander, the Art Deco, and the Bar pull. Those are separate designs from the Skyevale, so the profile will not match a Skyevale pull already on the run. If you are mixing pulls and knobs across a kitchen, the Emtek Schaub Collection items are catalogued as cabinet knob/pull, so you can pick a knob for doors and a pull for drawers within one family. For a true visual match to the Schaub 305, stay within the Skyevale collection.

The Schaub 305 Skyevale is a pull, not a knob, so smaller doors in the same run often get a knob instead. The Orca Hardware Bachelor Collection CK-15030 is a round cabinet knob at 1-1/4 inch diameter, and the CK-16030 is the round ring version at the same 1-1/4 inch diameter. The Orca Blackcomb CK-17025 is a square knob at 25 mm diameter if you want a squared profile. Knobs use a single bore, so they will not reuse the two-hole 128 mm or 160 mm drilling the Skyevale needs.

The Schaub 305 Skyevale mounts with M-4 metric screws, 1 inch long, so the screws from a pull using 8-32 threads are not interchangeable with it. The supplied M-4 hardware is what you install with. If a job is standardized on a single screw stock, the Trimco 553 and 562 series drawer pulls and the Deltana SBP35 solid brass bar pull are separate product lines to evaluate against your existing fastener, and the Skyevale's dual 128/160 mm bore pattern is the key dimension to confirm before any swap.

Emtek sells the Schaub Collection through its cabinet line, including the Emtek 8405 Select pulls and the Alexander, Art Deco and Bar cabinet pulls, all under the Schaub Collection. So if part of the job is already Emtek Schaub Collection, the Skyevale 305 comes from the same Schaub design family. Confirm the finish name matches, since finish codes do not always carry across brand lines.

Both. It is a cabinet pull in Schaub's Skyevale collection, contemporary profile, and at 7-1/2 inches overall with 128mm or 160mm mounting it suits wide drawer banks and full-height cabinet doors alike. On narrow doors, check that 7-1/2 inches of handle clears the stile and the hinge side.

Yes, Schaub publishes a Proposition 65 warning for this pull, linked through their product stewardship page. If you are supplying a California project and your submittal package requires the Prop 65 notice on record, pull it from Schaub's stewardship documentation.
