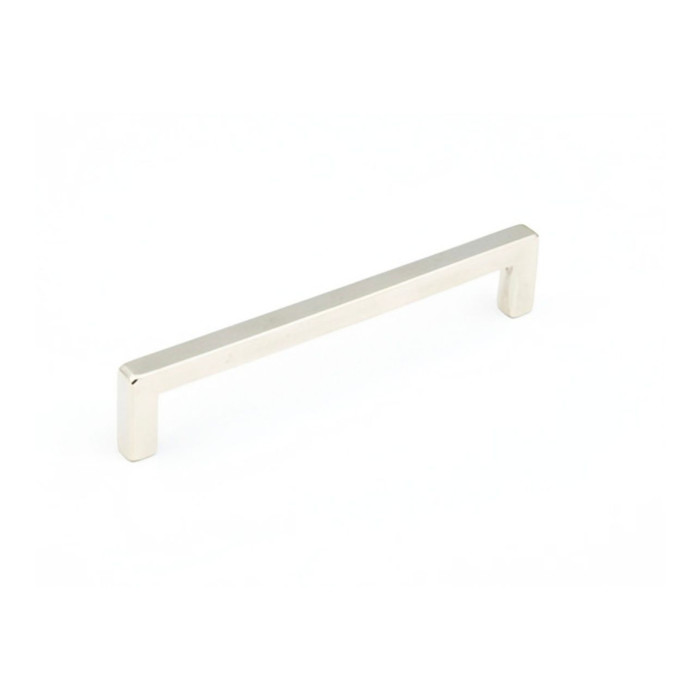

Schaub 788-6 6" Center to Center Vinci Cabinet Pull

Mounting is 8/32 thread with a 1 inch screw length. That covers standard 3/4 inch cabinet fronts with thread to spare. If you are installing on a thicker slab front, a false front, or a door with an applied panel, you will need longer 8/32 machine screws, since the supplied 1 inch screw will not reach through.

The Schaub 788-6 is drilled at 6 inch center to center with a 6-5/16 inch overall length, which is more than a narrow drawer front will take. For tighter spacing, the Trimco 553 Series drawer pull is 3 inch center to center, and the Trimco 562 Series offers 3-1/2 inch, 4 inch, and 96mm center-to-center options. The Deltana SBP35 is a 3-1/2 inch solid brass square bar pull, and the Omnia 1968/102 is a forged solid brass pull at 4 inch center to center.

Projection is 1-1/4 inches, measured from the face of the door to the back of the grip. That is enough hand clearance for a gloved grip, and it is the number to check against anything adjacent, a wall return, an appliance panel, or a drawer that swings past a corner cabinet.

Four finishes: Antique Bronze (AZ), Black Bronze (BB), Natural Bronze (NB), and Polished White Bronze (PWB). All four are finishes on a cast bronze body, so the tone comes from the metal itself rather than a plated coating. Because bronze living finishes vary slightly batch to batch, order the full quantity for a job at once if you need a close match across every door and drawer.

Cast bronze, solid, not a rolled or hollow bar. The grip section measures 3/8 inch, which gives a slim rustic profile with real weight behind it. For high-turnover multifamily or hospitality cabinetry, a cast body holds up better to abuse than a hollow stamped pull.

The Vinci 788-6 is a rustic cast bronze design. For a clean contemporary look, the Deltana SBP35 is a modern square bar pull in solid brass, and Omnia's forged solid brass modern pulls cover the same ground, the 1968/102 at 4 inch center-to-center and the 1970 with a 1-1/4 inch projection that matches the Vinci's standoff. Emtek's Schaub Collection Bar Cabinet Pull is another modern option if you want to stay in the Schaub design family.

They are not interchangeable. The Schaub 788-6 is a two-hole cabinet pull bored at 6 inch center to center with an 8/32 thread x 1 inch screw. The Orca Hardware CK-15030 and CK-16030 Bachelor Collection pieces are cabinet knobs, 1-1/4 inch diameter, and the CK-17025 Blackcomb is a square cabinet knob at 25mm - all single-hole items. Swapping a knob onto a front already drilled for the 788-6 leaves an open second hole.

The Schaub 788-6 belongs to the Vinci collection in cast bronze. Emtek offers several Schaub Collection cabinet pulls if you want to mix styles across one kitchen: the Emtek 8405 Select, the Emtek Alexander, the Emtek Art Deco, and the Emtek Bar cabinet pull. Each is catalogued as a cabinet knob/pull, so confirm the bore spacing you need before ordering against a front already drilled at 6 inch center to center.

The Schaub 788-6 Vinci is cast bronze with a rustic finish set including Antique Bronze, Black Bronze, Natural Bronze, and Polished White Bronze - a decorative choice more common in residential and hospitality millwork. If the specification calls for steel, the Orca Hardware CK-12001 is a T-pull bar in steel with a satin nickel finish and a 2 inch bar width. The Deltana SBP35 is a heavy-duty solid brass square bar pull if you want a metal closer to the bronze family.

Common practice is pulls on drawers and knobs on doors, and the 788-6 works that way. For knobs, Emtek's Schaub Collection offerings, including the 8405 Select line, are catalogued as knob/pull items in the same design family. Orca's Bachelor Collection round knobs at 1-1/4 inch diameter are a simpler option if finish match to the bronze is not critical.

Yes. Schaub publishes a Proposition 65 warning for this cast bronze pull, referenced through their product stewardship page. If you are specifying for a California project and need the warning language on file for the submittal package, pull it from that source.
