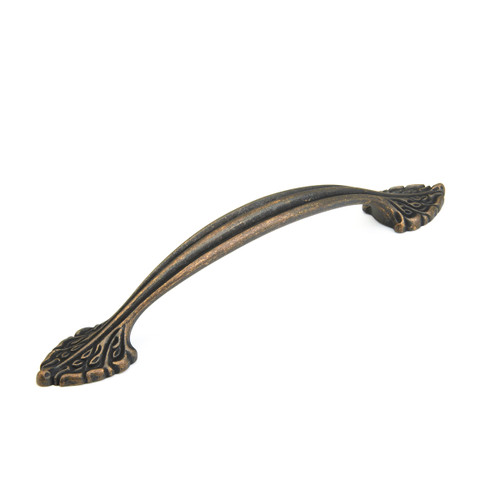

Schaub 871 96mm Center to Center Corinthian Cabinet Pull

It uses 8/32 thread screws at 1 inch long. That length suits standard 3/4 inch cabinet fronts. If you are mounting to a thicker front, a false front, or a front with an applied panel, you will need longer 8/32 machine screws, which are not part of the pull itself.

The Schaub 871 is a traditional-style solid brass cabinet pull on 3-3/4 inch (96mm) centers. If the cabinetry calls for a modern look on that same hole spacing, the Trimco 562 series drawer pull is offered with a 96mm center-to-center option, so it drops onto existing 96mm bores without redrilling. The Omnia 1968/102 is another forged solid brass modern pull, but it is spaced at 4 inch centers, which will not land on 96mm holes.

The Schaub 871 measures 6-1/2 inches overall on 3-3/4 inch centers, which needs a reasonably wide drawer face. For narrower fronts, the Trimco 553 series drawer pull is built on 3 inch centers, and the Deltana SBP35 square bar pull is a 3-1/2 inch solid brass pull. Both reduce the bore spacing and the face width the pull occupies.

Projection is 1 inch, measured from the face of the door or drawer to the outside of the grip. That is enough clearance for a full hand grip, and it is worth checking against any adjacent appliance panel or inside corner where a door swings past a return wall.

Solid brass, not plated zinc or hollow tube. For property managers and hospitality buyers, that matters on high-touch drawers and doors where thin castings loosen or crack at the screw boss over time.

Four: Ancient Bronze (ABZ), Corinthian Silver (CRS), Michelangelo Bronze (MIBZ), and Redington Brass (RB). If you are matching existing hardware across a kitchen or a whole unit, order all of it in one finish code at once, since these are hand-applied tones that read differently side by side.

Traditional. It belongs to Schaub's Corinthian collection, which is ornamental rather than plain bar styling. If the design calls for a clean contemporary look instead, a straight bar pull such as the Deltana SBP35 Modern Square Bar Pull or the Omnia 1968/102 forged brass pull at 4 inch center-to-center is the different direction to look.

The 871 Corinthian is fixed at 96mm (3-3/4 inch) centers. For other hole spacings, the Trimco 562 Series drawer pulls come in 3-1/2 inch, 4 inch, and 96mm options, and the Trimco 553 Series is a 3 inch center-to-center pull. Those are plainer commercial pulls, so they suit an MRO or institutional job more than a decorative kitchen.

The Schaub 871 is a two-hole pull on 3-3/4 inch centers with 8/32 thread screws. For a single-bore application, cabinet knobs are the substitute: the Orca Hardware Bachelor Collection round knob and round ring knob are both 1-1/4 inch diameter, and the Blackcomb Collection square knob is 25mm. These mount on one hole, so converting from the 871 means filling one of the existing bores.

The Schaub 871 Corinthian pull has a 1 inch projection. If you need more clearance between the grip and the face, the Omnia 1970 forged solid brass pull carries a 1-1/4 inch projection, and the Omnia 1969 and Omnia 1971 both list a 1-3/16 inch projection. All three are modern profiles rather than traditional.

The Schaub 871 Corinthian pull is solid brass, which suits residential and hospitality millwork. Where a steel pull is preferred, the Orca Hardware CK-12001 T-pull bar is steel in a satin nickel finish with a 2 inch bar width. Note that the 871 is a traditional decorative profile, so swapping to the CK-12001 changes the appearance of the casework as well as the material.

Yes, and it is a common layout: pulls on drawers, knobs on upper doors. For the knob side, Orca Hardware's Bachelor Collection round knob and round ring knob are both 1-1/4 inch diameter, and the Blackcomb square knob is 25mm. Finish families will not match the Schaub tones exactly, so decide whether you want a deliberate contrast before mixing brands.

Emtek lists several cabinet pulls under a Schaub Collection, including the Emtek 8405 Select, the Alexander, the Art Deco, and the Bar pull. Those are separate products with their own styling and hole spacing, so treat them as design cousins rather than direct matches to the 871 Corinthian. Confirm the center-to-center on whichever Emtek pull you are running before assuming shared hole centers.
