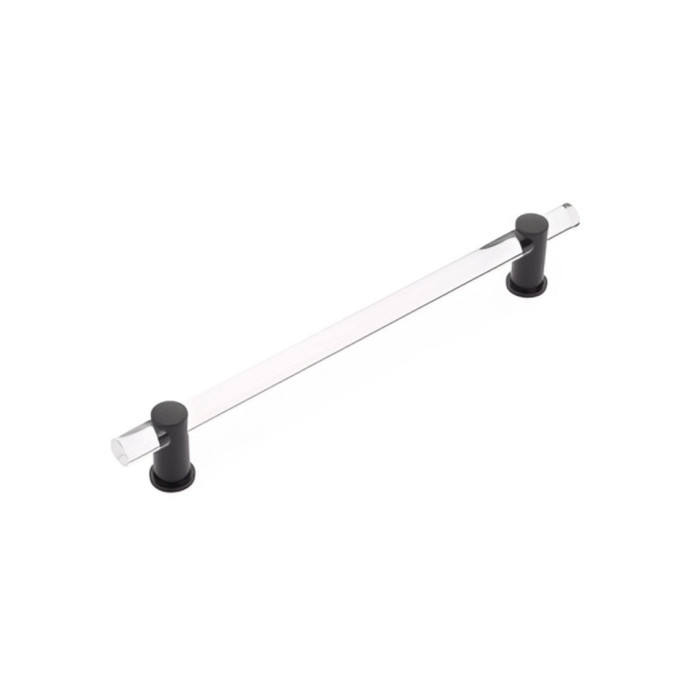

Schaub CS402 Concealed Surface Mounted 12" Center to Center Lumiere Appliance Pull

Yes, if your panel is drilled 12 inches on center. The CS402 Lumiere appliance pull is a 12 inch center-to-center pull with an overall length of 15 inches, so it needs two holes at exactly 12 inches apart. It mounts with 1/4-20 x 1 inch screws, which is the standard appliance pull thread, so an existing appliance panel drilled at 1/4 inch clearance will take it without redrilling.

For a long appliance-style grab, the Orca Hardware CK-12001 T-Pull Bar is a bar pull with a 2 inch bar width in steel, satin nickel. The Schaub CS402 differs in construction and scale: it is solid brass, 12 inch center to center, 15 inch overall, with a 2 inch projection and a contemporary Lumiere styling. Choose the CS402 where a solid brass finish range matters, and the CK-12001 where a steel bar profile suits the door.

The Schaub CS402 stands 2 inch off the face. Where clearance is tight, the Omnia 1970 is forged solid brass with a 1-1/4 inch projection, and the Omnia 1969 and Omnia 1971 are forged solid brass at 1-3/16 inch projection. All three keep the solid brass construction the CS402 uses while sitting closer to the door.

The fasteners do not show on the face of the pull. The CS402 mounts to the surface of the door or drawer front and the 1/4-20 x 1 inch screws are hidden within the posts, so you see clean brass with no exposed screw heads. Posts measure 1-1/8 inches at the base and the pull stands 2 inches off the face.

Two inches of projection, measured from the door face to the back of the grip. That is enough to get a full hand behind it, which is what you want on a heavy appliance panel. Worth checking against adjacent walls or return cabinets, since a 15 inch pull standing 2 inches proud will be the first thing a passing hip hits in a tight galley.

Solid brass, not plated zinc or hollow tube. On an appliance pull that matters because the whole weight of a panel-ready refrigerator door gets yanked through two posts. Solid brass posts with 1/4-20 machine screws are the standard specified for that duty in residential and hospitality kitchens.

You can, but it is sized as an appliance pull. At 15 inches overall with 12 inch hole centers, it needs a door or drawer front wide enough to carry that span and look right. For standard base cabinets and drawers, go to the shorter Lumiere cabinet pulls in the same finish, or a small-format pull like the Trimco 553 Series at 3 inch centers or the Trimco 562 Series in 3-1/2 inch, 4 inch, and 96mm centers.

The CS402 ships as a 1/4-20 x 1 inch screw application, sized for a typical panel thickness. If your fabricator has built a thicker custom panel, you will need longer 1/4-20 machine screws to reach, which is a common substitution on appliance pulls. Measure the panel before install rather than at the door.
