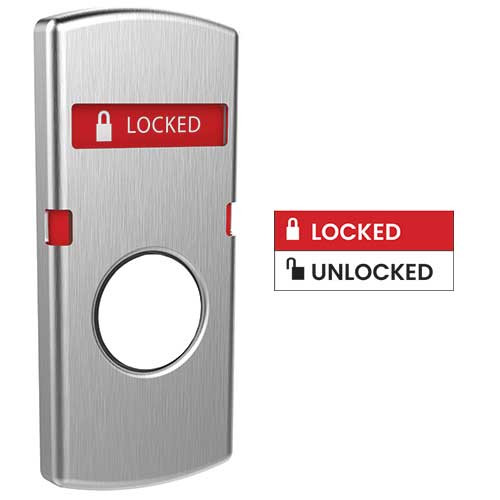

Schlage 47804351 L-Series Gen2 Indicator, Sectional, With Cylinder, “LOCKED/UNLOCKED”, Inside or Outside
The large windows and 180-degree visibility of L Series indication trim lets you Know It’s Locked™. The large viewing window wraps three sides of the lock to deliver patented 180-degree visibility that can be seen even from across the room.
- Gen 2 Indicator replaces L283-413
- Works with L9050, L9070, L460, L463 and more – for Sectional trim only
- Lock(s) and cylinder not included
- Large window features red and white messaging backgrounds to assure readability by for colorblind individuals
- Patented, 180-degree visibility give a three-sided view of the lock status
- Tested and certified to ANSI/BHMA Grade 1 operational and security standards
- High-mount placement for quick assessment during emergency lockdown
Manufacturer Resources
Product Specs
- Warranty:
- Limited Lifetime Mechanical/Finish
- Subcategory:
- Parts and Accessories
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Indicators
- Commercial/Residential:
- Commercial
- Lock Function:
- Occupancy Indicator
- Parts and Accessories Type:
- Installation Accessories
- Product Attribute:
- Parts and Accessories
- Product Function:
- Occupancy Indicator
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Schlage 47804351-626 – Frequently Asked Questions
1) Will the Schlage 47804351 indicator kit fit my L9050 mortise lock?
The 47804351 Gen 2 indicator works with the L9050, L9070, L460 and L463 among other L Series mortise locks, but only where the lock uses sectional trim. If your opening has escutcheon trim rather than sectional, this kit is not the one. The lock itself and the cylinder are separate orders.
2) Does the Schlage 47804351 indicator come with the cylinder and the lock?
Neither. The 47804351 is indicator trim only, built for the version of the lock that takes a cylinder, so you order the mortise lock body, trim, and the cylinder separately. Plan the keyway and cylinder length with the lock, not with this kit.
3) Is the Schlage Gen 2 indicator a direct replacement for an L283-413?
Yes. The Gen 2 indicator replaces the L283-413, so an existing sectional L Series opening running the older indicator can be brought up to the current one without changing the lock.
4) Do I need to replace the whole mortise lock to add lock status indication to my doors?
No, not on an L Series opening with sectional trim. The 47804351 is retrofit indicator trim: the mortise body stays in the door and the indicator goes on with the trim. That is the difference between a trim order and a full lock order when you are adding LOCKED/UNLOCKED status to a run of classroom doors.
5) What does the Schlage 47804351 indicator display, and can it be read from a distance?
It reads LOCKED or UNLOCKED in a window that wraps three sides of the lock for 180-degree visibility, readable from across a room. The messages sit on red and white backgrounds so status still reads for colorblind staff, and the window is mounted high on the trim so it can be checked quickly during a lockdown.
6) Can the Schlage indicator be mounted on the inside or the outside of the door?
Both. The 47804351 is configured for inside or outside mount, so on a classroom or office opening you can put the status window on the corridor side, the room side, or specify per opening across a building.
7) Is the Schlage L Series indicator rated for high-traffic commercial doors?
It is tested and certified to ANSI/BHMA Grade 1 operational and security standards, the highest commercial grade, and is catalogued for commercial use. That covers school, healthcare, and office openings where the lock cycles all day.
8) What finishes does the Schlage 47804351 indicator come in to match my existing trim?
Twelve finishes, so it can be matched to nearly any existing L Series opening: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 643E aged bronze. Match the BHMA number on the lever trim already on the door and the indicator will read as part of the same set.
