Schlage Schlage ALXV50 - Vandlgard Entrance/Office Lock - Grade 2 Cylindrical Non-Keyed Lever Lock SCH-ALXV50-KEYED

Schlage ALXV50 - Vandlgard Entrance/Office Lock - Grade 2 Cylindrical Non-Keyed Lever Lock

(No reviews yet) Write a Review

Model: ALXV50P ATH 626
From the ALX_Series Collection
$402.00
$388.96
Selected Finish is
Selected Lever Type is
  • Schlage ADDER-SCH-A-[CYLINDER-SINGLE]=P6 - Conventional 6-pin Cylinder (Schlage S123 Keyway) ADDER-SCH-A-[CYLINDER-SINGLE]=P6 - Conventional 6-pin Cylinder (Schlage S123 Keyway)
  • Schlage ADDER-SCH-A-[CYLINDER-SINGLE]=P - Conventional 6-pin Cylinder (Schlage C Keyway) ADDER-SCH-A-[CYLINDER-SINGLE]=P - Conventional 6-pin Cylinder (Schlage C Keyway)
  • Schlage ADDER-SCH-ALX-[LATCH]=47267042: Dead Latch - 2-3/4" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function ADDER-SCH-ALX-[LATCH]=47267042: Dead Latch - 2-3/4" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function
  • Schlage ADDER-SCH-ALX-[LATCH]=47267043: Dead Latch - 2-3/4" Backset - Square Corner, 1" x 2-1/4", Non-Restoring Function ADDER-SCH-ALX-[LATCH]=47267043: Dead Latch - 2-3/4" Backset - Square Corner, 1" x 2-1/4", Non-Restoring Function
  • Schlage ADDER-SCH-ALX-[LATCH]=47267051: Dead Latch - 2-3/8" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function ADDER-SCH-ALX-[LATCH]=47267051: Dead Latch - 2-3/8" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function
  • Schlage ADDER-SCH-ALX-[LATCH]=47267054: Dead Latch - 2-3/8" Backset - Round Corner, 1" x 2-1/4", Non-Restoring Function ADDER-SCH-ALX-[LATCH]=47267054: Dead Latch - 2-3/8" Backset - Round Corner, 1" x 2-1/4", Non-Restoring Function
  • Schlage ADDER-SCH-ALX-[STRIKE]=47267101: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/16" Lip Length) ADDER-SCH-ALX-[STRIKE]=47267101: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/16" Lip Length)
  • Schlage ADDER-SCH-ALX-[STRIKE]=10-025: ANSI, No Box, 1-1/4" x 4-7/8" (1-1/2" Lip Length) ADDER-SCH-ALX-[STRIKE]=10-025: ANSI, No Box, 1-1/4" x 4-7/8" (1-1/2" Lip Length)
  • Schlage ADDER-SCH-ALX-[STRIKE]=10-025: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/8" Lip Length) ADDER-SCH-ALX-[STRIKE]=10-025: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/8" Lip Length)
  • Schlage ADDER-SCH-ALX-[STRIKE]=10-013: Square Corner T-strike, Dust Box, 1-1/8" x 2-3/8" (1-1/8" Lip Length) ADDER-SCH-ALX-[STRIKE]=10-013: Square Corner T-strike, Dust Box, 1-1/8" x 2-3/8" (1-1/8" Lip Length)
  • Schlage ADDER-SCH-ALX-[STRIKE]=10-013: Square Corner T-strike, Dust Box, 1-1/8" x 2-3/8" (1-1/2" Lip Length) ADDER-SCH-ALX-[STRIKE]=10-013: Square Corner T-strike, Dust Box, 1-1/8" x 2-3/8" (1-1/2" Lip Length)
  • Schlage ADDER-SCH-ALX-[STRIKE]=10-016: Square Corner T-strike with Deep Dust Box for 3/4" Fire Latch, 1-1/8" x 2-3/4" (1-1/8" Lip Length) ADDER-SCH-ALX-[STRIKE]=10-016: Square Corner T-strike with Deep Dust Box for 3/4" Fire Latch, 1-1/8" x 2-3/4" (1-1/8" Lip Length)

In Stock (leaves warehouse same day if ordered before 3pm ET)

$402.00
$388.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ALXV50 - ENTRACY/OFFICE LOCK

  • Key cylinder outside; push button inside; deadlatch
  • Inside push button locks outside lever
  • Unlock with key outside or by rotating inside lever
  • Field selectable Vandlgard feature
  • Inside lever always free for immediate egress


Schlage ALX SERIES OVERVIEW

The proven AL Series has evolved to ALX

As a Grade 2 lock, the AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.

Why modular design is important

The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation. However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand. So whether you are a distributor wanting to offer same day pickup on configured locks in uncommon levers and finishes, a locksmith wanting truck stock solutions that eliminate call backs, or a facility manager wanting to repurpose rooms and change lock functions without the expense of new hardware, ALX Series can work for you.


FEATURES & BENEFITS

The Schlage ALX Series is a grade 2 lock unlike any other. X Factor qualities define a lock designed to exceed expectations:

Exceeds grade 2 strength

  • Stainless steel latchbolt

Expanded cylinder support

  • Accepts all Schlage plus five competitive cylinder formats
  • High security locking when used with Primus XP UL 437 listed cylinders

Maximum utility

  • One chassis fits all functions and cores to minimize inventory
  • Flexible purchase options: buy as factory configured, lock less levers, or as kits for on site

Exceptional durability

  • Accommodates 1 3⁄8" to 1 3⁄4" door thickness with minimal chassis adjustment Grade 1 compression springs
  • Captured screws in latch, strike and inside spring cage eliminate small, loose parts

Extreme installation simplicity

  • Deep-drawn spindle with 5 points of lever engagement prevents droop and wobble
  • Grade 1 compression springs

Function flexibility

  • Patent pending chassis design allows quick, in-field function set up
  • Field reversible Vandlgard® to non-Vandlgard locked lever engagement

Expansive lever offering

  • 10 total designs
  • Perfectly suited to Schlage ND Series grade 1 locks


FUNCTIONS

View the ALX Series catalog for an in-depth description of all available functions.

Non-keyed functions

  • ALX10 ANSI F75 Passage Lock
  • ALX40 ANSI F76 Privacy Lock
  • ALX44 Hospital Privacy Lock
  • ALX170 Single Dummy Trim
  • ALX172 Doublle Dummy Trim

Keyed functions

  • ALX50 ANSI F82 Entrance/Office Lock
  • ALX53 ANSI F109 Entrance Lock
  • ALX70 ANSI F84 Classroom Lock
  • ALX80 ANSI F86 Storeroom Lock

Keyed functions

Schlage ALX Series suites perfectly with ND Series grade 1 locks which offer an additional 15 functions plus 4 electrified options.


CERTIFICATIONS & TESTING

View the ALX Series catalog to see all specifications and certifications.

Certifications

  • Tested and certified under ANSI/BHMA A156.2-2011 Series 4000, Grade 2
  • UL/cUL listed: All locks 3-hour, A label firedoor 4' x 8' or 4' x 10' single door and 8' x8' pair doors; 90-minute 8' x 10' pair doors with 3/4" grade 1 latch options
  • Meets ADA requirements
  • Florida Building Code and Miami Dade hurricane requirements compliants
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply


DESIGNS & FINISHES

View the ALX Series catalog to see all design and finish options.

Depending on design, material options include:

  • Ten lever designs
  • Two rose designs: both predicated on lever choice
  • Ten finish options

NOTE: Contact our Sales Center for Split Finishes and Split Styles. These have extended manufacturer lead times.


DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Cylindrical Lever Locks
Series:
ALX Series
Grade:
Grade 2
Duty Level:
Heavy Duty
Handle Type:
Lever
Keyed Function:
Non-Keyed
Warranty:
10 Year Limited
Keys Included:
2
Standard Latch:
1-1/8" x 2-1/4", Square Corner
Standard Strike:
1-1/4 x 4-7/8 , ANSI, No Box"""
ANSI/BHMA:
F82
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Electronic:
No
Commercial/Residential:
Commercial
Function Description:
Key cylinder outside, Push button inside, Deadlatch
Lock Type:
Cylindrical
Lock Function:
Entrance/Office
Product Attribute:
Cylindrical Locks
Product Model:
ALXV50
Collection:
ALX_Series
Backset (Distance):
2-3/4",Strike,47267101: ANSI
Product Function:
Entrance/Office
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Product Substrate:
Zinc and Steel
Department:
Door Hardware

Schlage ALXV50P ATH 626 – Frequently Asked Questions

1) What does the Schlage ALXV50 Entrance/Office function actually do at the door?
The ALXV50 is the F82 Entrance/Office function: key cylinder outside, push button inside, deadlatch. Press the inside push button and the outside lever locks; unlock it with the key outside or just by turning the inside lever. The inside lever is always free, so anyone inside gets out in one motion without unlocking anything first. That is the function you want on a private office, a break room, or a staff area where the occupant controls whether the door is locked.
2) What is Vandlgard on the Schlage ALXV50 and can I turn it off?
Vandlgard means the outside lever free-spins when the lock is secured rather than staying rigid, so someone hanging on it or kicking it down does not transfer force into the chassis. It is a common spec on school corridors, dorms, and high-traffic multi-family openings. On the ALX chassis the feature is field selectable and field reversible, so the same lock can be converted between Vandlgard and standard locked-lever engagement on site without a different part number.
3) My doors are prepped for a 2-3/8 inch backset. Can I still use the ALXV50?
Yes. The standard configuration ships a 2-3/4 inch backset deadlatch, but the latch is a selectable component and 2-3/8 inch backset deadlatches are offered as well, in square corner 1-1/8 x 2-1/4 inch and round corner 1 x 2-1/4 inch faceplates. Measure from the door edge to the center of the bore, pick the matching backset, and match the faceplate corner to the mortise already cut in the door edge so you are not chiseling.
4) Can the Schlage ALXV50 go on a fire rated door?
Yes. ALX locks are UL/cUL listed 3-hour on A label fire doors up to 4 x 8 or 4 x 10 foot single doors and 8 x 8 foot pairs, and 90-minute on 8 x 10 foot pairs when specified with the 3/4 inch Grade 1 latch option. The series is also certified to ANSI/BHMA A156.2-2011 Series 4000 Grade 2, meets ADA requirements, and complies with Florida Building Code and Miami Dade hurricane requirements.
5) I need the levers on my new offices to match the classroom and storeroom doors already in the building. Will ALX match?
ALX suites with Schlage ND Series Grade 1 locks, and the lever designs are shared, so an ALXV50 office door reads identically to an ND Series classroom or storeroom door beside it. That is the usual way to spec a building: ND Grade 1 on the corridor and high-abuse openings, ALX Grade 2 on the offices, one lever design and one finish throughout. ND also brings 15 more functions and four electrified options where you need them.
6) What other Grade 2 entrance/office lever locks could I use instead of the Schlage ALXV50?
Closest same-grade, same-function options we stock: the Falcon B511CP6D, a Grade 2 cylindrical entry/office lever, and the Hager 2525 Grade 2 commercial cylindrical entry lock, rated 1-3/8 to 2 inch door thickness. Cal-Royal AG00 is a Grade 2 entrance lever on a 2-3/8 inch backset with a 6-pin Schlage C keyway, which keys into a Schlage C system the same way the ALXV50 does. If budget drives the job and the opening is light duty, Cal-Royal AUS00 is a Grade 3 entrance/office lever, 1-3/8 to 1-3/4 inch doors. What none of those carry is the field reversible Vandlgard free-spinning lever, so if abuse resistance is why you are here, stay on the ALXV50.
7) What is the closest equivalent to a Schlage ALXV50 entrance/office lever from another manufacturer?
The ALXV50 is a Grade 2 cylindrical lever with ANSI F82 entrance/office function - key cylinder outside, push button inside, deadlatch. The Falcon B511CP6D is also a Grade 2 cylindrical lever lock in entry/office function, rated medium duty. The Dexter C1000 entry/office lever carries the same entrance/office function at Grade 1 with a door thickness range of 1-3/8 inch to 1-3/4 inch. Cal-Royal's AUS00 covers entrance/office as a Grade 3 lever with a solid brass forged body, over a 1-3/8 inch to 1-3/4 inch door range.
8) I need a heavier lever than a Grade 2 entrance/office lock for a high-traffic tenant door - what should I use instead?
For an opening that needs a Grade 1 chassis in the same entrance/office function, the Dexter C1000 entry/office cylindrical lever is Grade 1, keyed, with a clutching lever and a 1-3/8 inch to 1-3/4 inch door thickness range. The Schlage ALXV50 is certified to ANSI/BHMA A156.2 Series 4000, Grade 2, and accommodates 1-3/8 inch to 1-3/4 inch doors, so the Dexter swaps into the same door range at the higher grade.
9) For a storeroom door that must stay locked at all times, is an entrance/office lever the right function?
No - the ALXV50 entrance/office function leaves the outside lever unlocked until someone presses the inside push button, and the inside lever unlocks it again. A storeroom function keeps the outside lever locked permanently and is entered by key only. The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt covering 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever over a 1-3/8 inch to 2 inch range.
10) Is a privacy lever the same thing as an entrance/office lever with a push button?
They are different functions even though both use an inside button. The ALXV50 entrance/office lock has a key cylinder outside and is released by key or by rotating the inside lever, which suits an office or tenant door. A privacy lock has no outside key cylinder and is meant for a bathroom or bedroom - the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 to 2 inch doors, and the Arrow MK02-TA is a non-keyed privacy lock with a Tudor knob for 1-3/4 inch to 2 inch doors. If the door needs key entry from the corridor side, the privacy versions will not do the job.
11) The opening needs a classroom lever rather than entrance/office - what should I order?
An entrance/office lock is set from the inside push button, which is not what a classroom function does. For key control from the corridor side, the Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway keyed different and a 2-3/4 inch backset - the same backset the ALXV50 uses as standard. The Dexter C1000 classroom lever is Grade 1, clutching and keyed, for 1-3/8 inch to 1-3/4 inch doors, and the Dexter C1000 classroom security version adds key control from both sides over the same door range.
12) My door is 2 inches thick - which entrance lever fits when the Schlage ALXV50 does not?
The ALXV50 chassis accommodates 1-3/8 inch to 1-3/4 inch doors with minimal adjustment. For a thicker leaf, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle covering 1-3/8 inch to 2 inch doors, and the Deltana 6201 Manchester lever entry covers 1-3/8 inch to 2 inch. The Corbin Russwin CL3110 covers 1-3/4 inch to 2 inch in a Grade 1 chassis if the opening needs passage function only.
13) Do I have to worry about handing when ordering a Schlage ALX lever lock?
No. The ALX cylindrical lock is non-handed, so one lock covers left and right hand openings and you do not need to survey your doors before ordering. That matters if you are buying a pallet of locks for a building with mixed swings, or carrying truck stock.

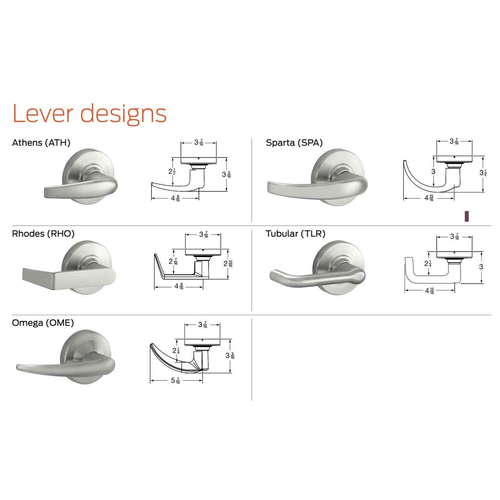

14) What lever styles and finishes does the Schlage ALXV50 come in?
Ten lever designs: Athens, Boardwalk, Broadway, Latitude, Longitude, Omega, Rhodes, Saturn, Sparta and Tubular. Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial and 643E aged bronze. For a healthcare or food service facility the 626AM antimicrobial satin chrome is the one to look at, since the lever is the touch point. Split finishes and split styles are available but carry extended manufacturer lead times.
15) Is a Grade 2 lock like the ALXV50 enough for a commercial office, or should I step up to Grade 1?
Grade 2 under ANSI/BHMA A156.2 is the standard commercial office and light institutional tier, and the ALX is built above the minimum for it: stainless steel latchbolt, Grade 1 compression springs, and a deep drawn spindle with five points of lever engagement to stop the droop and wobble that generates callbacks. Schlage rates it heavy duty. Where you have real abuse, a corridor, a stairwell, a detention or dorm opening, go Grade 1 instead: Schlage ND Series is the direct step up, or from other lines the Falcon T Series and the Corbin Russwin CL3100 vandal resistant cylindrical are Grade 1 alternatives we carry.
16) What is the difference between the ALX50 Entrance/Office and the ALX53 Entrance lock?
Both are keyed outside, but they lock differently. ALX50 is ANSI F82, push button inside, and the button releases when you turn the inside lever, so the door unlocks itself as someone leaves. ALX53 is ANSI F109 Entrance. If you want the door to stay locked after each exit rather than reset, F82 is the wrong pick. For a door that is always locked outside and always free inside with no button at all, the storeroom function ALX80 (F86) is the one to order.
17) Can I buy the Schlage ALX as parts to build locks on the truck instead of ordering each configuration?
Yes, and that is the point of the modular design. One chassis covers every ALX function and every core, so you can stock chassis, function kits and lever kits separately and build the lock you need on site, or buy it factory configured, or buy it less levers. Functions set up in field on the patent pending chassis, which lets a facility repurpose a room from office to storeroom without buying new hardware, and lets a locksmith carry far less inventory to cover the same call list.
18) Does the Schlage ALXV50 meet ADA and California accessibility requirements for lever hardware?
The ALX Series meets ADA requirements. For the California Referenced Standards Code, compliance depends on the lever you pick: all levers with a return to door of 1/2 inch (64 mm) or less comply, so confirm the specific lever design against that return dimension when the job is in California.
19) Which lever should I order for a door that only needs to latch, with no locking at all?
An entrance/office lock like the ALXV50 locks the outside lever from an inside push button; a door that never needs to be secured takes a passage lever instead. The Falcon B101 is a Grade 2 cylindrical passage lever with a non-handed design, and the Hager 2510 is a Grade 2 passage cylindrical lever in the Withnell design covering 1-3/8 inch to 2 inch doors. For a Grade 1 passage chassis, the Falcon K101 is non-handed, fire rated, and covers 1-3/8 inch to 2-1/4 inch doors.
20) Can I use a dummy lever to match the look of an entrance/office lever on a door that does not latch?
Yes, that is the usual pairing on an inactive leaf or a closet slab with no latch. A dummy trim has no chassis and no latch at all, so it cannot replace an ALXV50, which uses a deadlatch and a keyed outside cylinder. The BEST 7KC single dummy trim cylindrical lever is Grade 2 medium duty, and the BEST 9K 1DT single dummy trim is Grade 1 heavy duty. The Accentra 455LN Augusta is a Grade 1 single dummy cylindrical lever in the 5400 Series.
21) Is a Kwikset lever an acceptable substitute for a commercial entrance/office lever?
The residential-grade sets serve a different duty class. The Kwikset 200BRNL Breton passage lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Kwikset 300BRNL Breton privacy lever is also Grade 3 over the same range - both are non-keyed functions. The Schlage ALXV50 is a commercial, heavy duty Grade 2 lever in entrance/office function with a keyed outside cylinder, so a Breton set neither keys nor carries the same rating.
22) I need a vandal resistant lever but the door is a passage opening - what takes the place of a Vandlgard entrance lock?
The Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical lever lock in passage/closet function, fire rated, for 1-3/4 inch to 2 inch doors. It handles the abuse-resistance requirement on an opening that needs no locking, where the Schlage ALXV50 is a keyed entrance/office lock with a field selectable Vandlgard feature and an inside lever that is always free for immediate egress.
23) Does a keypad or electronic lever do the same job as a mechanical entrance/office lock?
They cover the same access need by different means. The Schlage ALXV50 is a mechanical, non-electronic lock keyed to a conventional 6-pin cylinder and supplied with two keys. The Delaney LP250 is a Grade 2 electronic keypad leverlock, and the Lockey 1150 is a heavy duty mechanical keypad lever set with a double combination for 1-1/8 inch to 2 inch doors - no key, code entry instead. Choose on whether the facility runs a key system or wants codes at the door.
24) What lever works for a utility or institutional room instead of an entrance/office function?
Asylum and institution functions key both sides, which an entrance/office lock does not do - the ALXV50 releases from the inside lever for immediate egress. The Dexter C1000 asylum lock is a Grade 1 F87 cylindrical lock for 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a Grade 2 heavy duty asylum lock with a ball knob and a conventional Schlage C keyway cylinder.
25) Is an escutcheon lever trim or an exit device lever the same as a cylindrical entrance/office lock?
No. The ALXV50 is a complete cylindrical lockset with its own chassis, deadlatch and strike. The Corbin Russwin 585F715 is a Grade 1 lock lever for the ED8000 pushpad exit device and the CL3300 cylindrical lock series, covering 1-3/4 inch to 2 inch doors, and the Imperial USA ED-EL500HD is a heavy duty escutcheon lever trim in entry function from the ED-500 series. Those are trim that mounts to an exit device, not a standalone lock for a bored door prep.
26) What is the ALXV50 lock body made of?
Zinc and steel, with a stainless steel latchbolt. It is specified as commercial hardware, not residential, and Schlage rates the duty level heavy duty. For exterior or coastal openings, note the ALX line is compliant with Florida Building Code and Miami Dade hurricane requirements.
