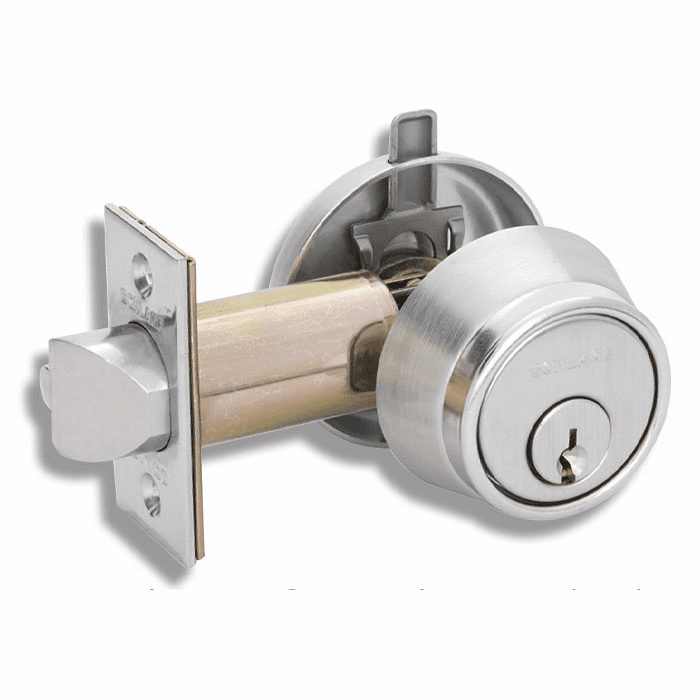

B250 SERIES OVERVIEW
The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. This makes it ideal for pool gates as a double cylinder and similar applications where relocking is essential to security. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch.
FEATURES & BENEFITS
Strength and security
- 5/8" throw deadlatch resists prying attacks and "shimming" of the latch
- Concealed frame reinforcer protects wood jamb against kick-in attacks
- Free spinning, tapered cylinder collar with security insert resists wrenching and prying
- Thumbturn "holdback" feature retains the deadlatch in a retracted position when desired
- UL 437 listed option resists drilling and physical attack on the cylinder
Key System Security
- Open and restricted keyway options
- Primus XP program geographic exclusivity
- Factory master keying available
- Orderable in two cylinder formats: Conventional and FSIC
Functional and aesthetic options
- Functions include single and double cylinder options
- 7 finish options
CERTIFICATIONS
- ANSI/BHMA A156.36 Grade 2 certified
- ADA compliant thumbturn design
- BAA (Buy American Act) compliant product
FINISHES
Finishes
- Weather-resistant for interior and perimeter applications
- 605 (US3) bright brass
- 606 (US4) satin brass
- 609 (US5) satin brass, blackened
- 613 (US10B) oil rubbed bronze
- 622 (US19) matte black
- 625 (US26) bright chrome plated
- 626 (US26D) satin chrome plated
Finish Considerations
606, 609, 622, and 625 may have extended lead time.
Suiting
Designed to create an attractive and cohesive building-wide look when paired with other Schlage, Von Duprin or LCN devices.
PRODUCT SPECIFICATIONS
Functions
Keyed single cylinder B250 (E0122) - thumbturn x cylinder (night latch).
Keyed double cylinder B252 (E0112) - cylinder x cylinder.
Standard features
Latch: 1" housing diameter, 9/16" throw
Faceplate: 1-1/8" x 2-1/4" with square corners
Strike: 1-1/8" x 2-3/4" with square corners (ANSI and round corner options available)
Backset: 2-3/8" (2-3/4" option available)
Door range: 1-1/2"-1-3/4" conventional cylinders; 1-1/2"-2-1/8" Full Size Interchangeable Core cylinders
Trim ring: 1/8" or 7/16" wrought brass or bronze reinforced with security insert
Cylinder: 6-pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Keys: Two nickel silver cut keys per lock
DOWNLOADS & RESOURCES
Key Systems, Cylinders and Keys catalog
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Deadbolts
- Series:
- B250 Series
- Grade:
- Grade 2
- Duty Level:
- Medium Duty
- Keys Included:
- 2
- Warranty:
- 3 Year
- Standard Latch:
- 12-100: Deadbolts - 2-3/8" Backset - Square corner, 1-1/8" x 2-1/4", 1" Housing Diameter
- Standard Strike:
- 10-001: Square corner, T Strike, box, 1-1/8" x 2-3/4"
- Keyed:
- Yes
- Backset:
- 2-3/8"
- ANSI/BHMA:
- E0122
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Deadbolts
- Model:
- B250
- Electronic:
- No
- Function:
- Cylinder x Thumbturn
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- Conventional 6-Pin Cylinder, C Keyway
- Function Description:
- Deadlocking latchbolt retracted by key from outside or by inside turn unit. Rotating turn unit and activating hold-back feature keeps latch retracted.
- Lock Function:
- Deadbolt
- Lock Type:
- Deadbolts
- Product Attribute:
- Deadbolts
- Segment:
- Door Hardware
