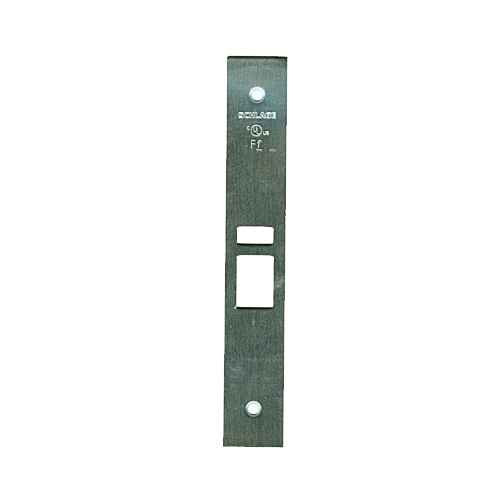

Schlage Commercial 09-663 Armor Front, L Series
The Schlage 09-663 is a replacement armor front for the L Series mortise lockset, covering the latch and auxiliary latch. It is a genuine Schlage part, finish-matched to the original hardware.
Compatibility
- For use with: L9010, L9040, L9044
- Door thickness: 1-3/4"
- Front size: 1-1/4"
Construction
- Material: Stainless Steel
- Finish-specific part: select the finish that matches the installed lockset
Available Finishes
- 605 Bright Brass
- 606 Satin Brass
- 609 Antique Brass
- 612 Satin Bronze
- 613 Oil Rubbed Bronze
- 619 Satin Nickel
- 622 Matte Black
- 625 Bright Chrome
- 626 Satin Chrome
- 629 Bright Stainless Steel
- 630 Satin Stainless Steel
- 643E Aged Bronze
Warranty
- Limited Lifetime Mechanical/Finish
Manufacturer Resources
Product Specs
- For Use With:
- L9010; L9040; L9044
- Warranty:
- Limited Lifetime Mechanical/Finish
- Product Group:
- Mechanical Locks
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Armor Fronts
- Commercial/Residential:
- Commercial
- Front Size:
- 1-1/4"
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Model:
- 09-663
- Door Thickness Range:
- 1-3/4"
- Product Category:
- Mechanical Locks
- Product Substrate:
- Stainless Steel
- Department:
- Door Hardware
Schlage 09-663 626 – Frequently Asked Questions
1) Which Schlage L Series mortise locks does the 09-663 armor front fit?
The 09-663 armor front is the latch by auxiliary latch front for Schlage L Series mortise locks, and it's specified for the L9010, L9040 and L9044 functions. Those are the passage and privacy-type bodies that use a latch plus an auxiliary deadlatch and no deadbolt cutout, which is why the front has that hole pattern. If your lock body is a deadbolt function, this is the wrong front for it.
2) Can I replace just the armor front on a Schlage L9010 without swapping the whole mortise lock?
That's exactly what the 09-663 is for. It's a genuine Schlage replacement part, so a damaged, painted-over, or mismatched front on an L9010, L9040 or L9044 comes off and this goes on without pulling the lock body or re-prepping the door edge. Common fix after a paint crew or a finish change on an occupied opening.
3) What finishes does the Schlage 09-663 armor front come in, and do I have to match my existing lever trim?
Twelve finishes: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 643E aged bronze. Order to match the trim already on the door, since the front sits on the door edge in plain view. Property managers standardizing a building usually run 626 satin chrome or 630 satin stainless.
4) Do I need to know the finish before ordering a Schlage L Series armor front?
Yes, and it isn't optional on this part. L Series fronts are finish specific, so the 09-663 ships in the one finish you select and there's no field finishing it to match. Pull the finish code off the existing lever or the old front (the 605 through 643E numbers) before you place the order.
5) Is the Schlage 09-663 armor front stainless steel or plated brass?
Stainless steel is the base material on the 09-663, with the finish applied over it. That matters on high-traffic and exterior openings where the door edge takes strike contact and cleaning chemicals, and it's why the same part carries brass-look finishes like 605 and 612 as well as the stainless 629 and 630.
6) Is the Schlage 09-663 a residential part or rated for commercial use?
Commercial. The 09-663 is a component of the Schlage L Series mortise line, used on office, institutional, and multi-family openings rather than residential bored locks. If you're working on a house with a tubular latch, no mortise lock is involved and this part doesn't apply.
