Schlage Commercial 20-001 C 20...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$969.00
$625.61

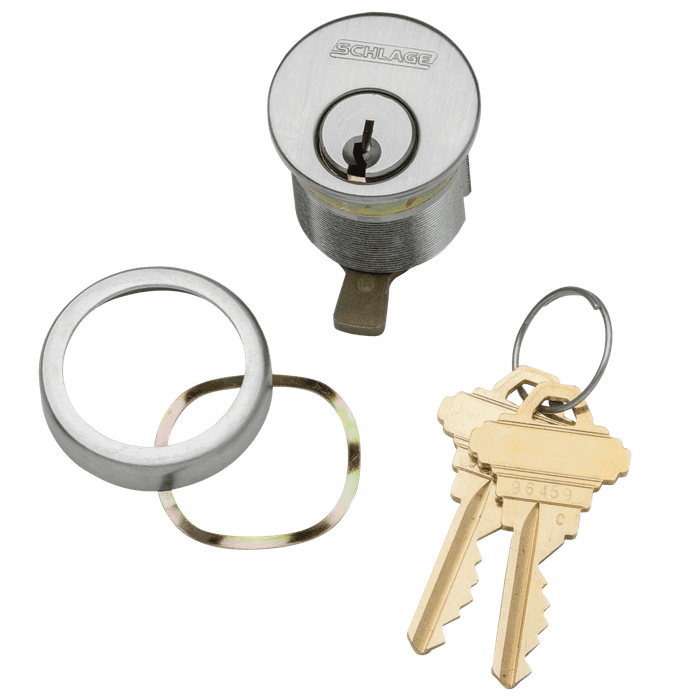

Schlage Commercial 20-001 C 200 XB03-418 2" Mortise Cylinder, 6-pin, C Keyway, Keyed Different, Straight Cam, Compression Ring & Spring, 2 Keys, Non-Handed

Schlage Commercial 20-001 C 200 XB03-418 2" Mortise Cylinder, 6-pin, C Keyway, Keyed Different, Straight Cam, Compression Ring & Spring, 2 Keys, Non-Handed

(No reviews yet) Write a Review

Model: 20-001 C 200 626 XB03-418
$969.00
$625.61
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$969.00
$625.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Modular Cylider Overview

One cylinder is the foundation for every lock you need, add more flexibility with less inventory dollars, and make your job easier, faster and more profitable.
Now you can service almost any lock on any door with just one cylinder. Simply by adding or changing the front and back housing you can convert a modular cylinder into multiple cylinder types, including mortise, rim and key-in-lever. The revolutionary Schlage® Modular cylinder will dramatically reduce your inventory because you will be able to make almost any cylinder type from a series of modular components and parts.
Now, one cylinder changes everything.

Our modular cylinder is the foundation for every lock you neeS

  • One cylinder converts to three differnt cylinder types by changing the tailpiece, cam or rear housing
  • Accomadates thicker doors with six available lengths of rear housing sizes
  • Front housing available in all finishes to match the locks
  • Supports interchangeability between Everest 29™, Primus®XP, and Classic key systems
  • Fewer parts required to fill orders means less inventory and lower costs
  • Never be caught on the job without the right part

One cylinder really does fit all

Thanks to the extraordinary versatility of the Schlage® modular cylinder you’ll never be caught on the job again without the right part. You’ll be able to assemble almost any Schlage cylinder on the spot, while providing your customers the same security, toughness and quality that has made Schlage one of the best names in the business.

  • Adaptable to mortise, rim and key-in-lever or key-in-knob applications
  • Available in all Schlage keyways, including Everest 29TM and Primus® XP


DOWNLOADS

Schlage Key Systems, Cylinders and Keys Catalog

Manufacturer Resources

Product Specs

Features:
Basic Security, Enhanced Security
Application:
Compression Ring & Spring
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
ANSI/BHMA:
BHMA certified to ANSI A156.5 2001
Keys Included:
2
Commercial/Residential:
Commercial
Cylinder and Keyways:
Mortise Cylinder
Lock Type:
Mortise
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage 20-001 C 200 626 XB03-418 – Frequently Asked Questions

1) Will a Schlage modular mortise cylinder fit a thick door, or is it only good for a standard 1-3/4 inch door?
Cylinder length on the Schlage modular cylinder is set by the rear housing, and six rear housing lengths are offered specifically to accommodate thicker doors. The same cylinder body therefore covers a standard 1-3/4 inch commercial door and the thicker openings you run into on exterior and retrofit work; you change the rear housing instead of buying a different cylinder. Measure the lock face to the outside of the door before choosing the housing length.
2) Can one Schlage modular cylinder be used in a rim exit device and a key-in-lever lock, or do I need a separate cylinder for each?
One modular cylinder covers all three. Changing the tailpiece, cam or rear housing converts it between mortise, rim and key-in-lever or key-in-knob use, which is the reason the platform exists: a locksmith carries one cylinder on the truck instead of three. As supplied here it is set up as a mortise cylinder with a straight cam. If you would rather stock a purpose-built rim housing, the Corbin Russwin 3070 is a 6-pin rim cylinder housing with a 1-7/8 inch tailpiece, though it is a Corbin Russwin part, not a Schlage one.
3) Does the Schlage mortise cylinder come with the compression ring and spring, or are those ordered separately?
Compression ring and spring are part of the assembly, and two cut keys come with it. That is everything needed to put the cylinder into a mortise lock. What you add is only what the application changes: a different tailpiece or cam if you are converting it to rim or key-in-lever service, or a longer rear housing if the door is thicker than standard.
4) Do I have to specify left hand or right hand when ordering a Schlage mortise cylinder?
No handing to specify. The cylinder is non-handed, so the same part goes into a left hand or right hand mortise lock. Handing is decided by the lock body and the trim, not by the cylinder. The two things that do have to match your lock are the cam and the cylinder length.
5) What standard is this Schlage mortise cylinder certified to for a commercial hardware spec?
BHMA certified to ANSI A156.5 2001, and it is a commercial cylinder rather than a residential one. A156.5 is the auxiliary lock and cylinder standard, so it is normally the line an institutional or facility spec cites when it calls out mortise cylinders. That certification is the piece a school, hospital or government submittal usually wants documented.
6) Can this Schlage cylinder be keyed into my building's existing master key system?
The modular cylinder ships on the Schlage C keyway with two keys of its own, so as delivered it will not turn with your building keys; a locksmith re-pins it to your system. C is a Classic keyway, and the modular platform supports interchangeability between Everest 29, Primus XP and Classic key systems, which is why the same cylinder can sit on a basic security keying job or an enhanced security one. If a wing of the building is on Primus XP and the rest is on Classic, that is a housing and keying decision, not a different cylinder.
7) Will the cylinder finish match the Schlage locks already on my other doors?
Two finishes are offered here, 605 bright brass and 626 satin chrome, both on the C keyway. 626 satin chrome is the standard commercial finish and is what most mortise locks in an office building or apartment property are already wearing, so it is the safe match on a fleet of doors. Beyond those two, the modular cylinder's front housing is produced in all finishes to match the locks, so correcting a finish mismatch later means changing a housing, not replacing the cylinder.
8) The mortise lock I am fitting calls for a cloverleaf cam rather than a straight cam. What do I order in place of the Schlage 20-001?
Two Corbin Russwin parts carry that cam. CR1070-114-A01 is a 1070 Grade 1 Series 1-1/4 inch six pin mortise housing with an A01 cloverleaf cam. CR1080-112-A01 is a 1080 Grade 1 Series 1-1/2 inch LFIC mortise cylinder, six pin, with an A01 cloverleaf cam described as a Schlage L cam and built for Schlage L9000 mortise locks. Cam shape and cylinder length both have to match the lock case. The Schlage 20-001 is a mortise cylinder supplied with a compression ring and spring.
9) What is a comparable 6-pin mortise cylinder from another brand if I cannot get the Schlage?
Two sit close. The Corbin Russwin 1000 Grade 1 Series mortise cylinder is 1-1/2 inches long with an A02 straight cam, which is the same cam style as the Schlage. The Detex MC65 is a 1-1/8 inch 6-pin commercial mortise cylinder cut for the Schlage C keyway, so it stays on the same key system while giving you a shorter body. Length is usually what decides it, since the cylinder has to sit flush in the lock face at the door thickness you actually have.
10) I have an aluminum storefront door with an Adams Rite deadlock. Will a Schlage mortise cylinder work in it?
No. The Schlage modular cylinder is built for standard commercial mortise locks; a narrow stile aluminum storefront running an Adams Rite MS deadlock takes an Adams Rite cylinder. The Adams Rite 4036 is a Grade 1 five-pin mortise cylinder good down to a 1/2 inch minimum door thickness, which is the range a storefront stile actually gives you. If the opening needs the cylinder built into a pull for an MS1847 deadlock, the Adams Rite 4024 mounts with a trim plate and the 4025 uses through-screws. For a wood door running the 5017 deadlock, the 4026 is the pull.
11) Our facility is standardized on interchangeable core. Can this Schlage modular cylinder take an IC core?
It cannot. The modular cylinder converts between mortise, rim and key-in-lever service by swapping the tailpiece, cam or rear housing, and interchangeable core is not one of those configurations. For a facility on small format IC, the BEST 1C Series standard 5-pin core and the BEST 1CB Peaks 150 Series interchangeable core cylinder are the usual pieces, with the BEST 1CDF as the drill resistant patented 7-pin brass core in that same 150 series family. If you need large format IC in a Schlage L9000 mortise lock, the Corbin Russwin 1080 Grade 1 Series is a 1-1/2 inch LFIC mortise cylinder.
12) I need a straight cam mortise cylinder from another manufacturer that will work where the Schlage 20-001 does. What is the closest match?
Corbin Russwin CR1000-112 is the nearest cross-brand counterpart: a 1000 Grade 1 Series mortise cylinder in the 1-1/2 inch length carrying an A02 straight cam, so it presents a straight cam drive to the lock case. The Schlage 20-001 is a commercial mortise cylinder BHMA certified to ANSI A156.5 2001 and is supplied in the C keyway, so an opening moved to the Corbin Russwin comes off the C key system and onto a separate one. Confirm the cylinder length the lock case requires before you swap, since the Corbin Russwin is fixed at 1-1/2 inch.
13) Our building is keyed to Schlage C. Is there a mortise cylinder from a different maker that takes those same keys?
Detex MC65 is a 1-1/8 inch six pin commercial grade mortise cylinder cut for the Schlage C keyway, so it can be brought into an existing C system alongside the Schlage 20-001, which is supplied in the C keyway. The two differ in length, so check what the lock case and door thickness call for before mixing them on the same fleet of doors. The Schlage modular cylinder also supports interchangeability between Everest 29, Primus XP and Classic key systems, which matters on a property running more than one keyway family.
14) What mortise cylinder suits a narrow aluminum stile door, where the Schlage 20-001 is going on the heavier commercial openings?
Adams Rite 4036 is a Grade 1 mortise cylinder with five pin security that works on doors from a 1/2 inch minimum thickness, which is the range narrow aluminum stile doors sit in. The Schlage 20-001 is a commercial mortise cylinder BHMA certified to ANSI A156.5 2001, and the Schlage modular design accommodates thicker doors through six available rear housing lengths. Measure the stile depth you actually have, then pick the cylinder whose length range covers it.
15) The doors on this floor are lever locks, not mortise locks. What cylinder goes there instead of the Schlage 20-001?
Falcon A23161-05 G is a key in lever cylinder from the RU/T Series, six pin, G keyway, keyed different, with two cut keys. Kaba Ilco 1539 Series is a key in knob and lever universal cylinder, and Kaba Ilco 1579 is a knob and lever cylinder for Sargent locks. The Schlage 20-001 is a mortise cylinder, so it belongs on the mortise openings; the Schlage modular cylinder itself is adaptable to mortise, rim and key in lever or key in knob applications by changing the tailpiece, cam or rear housing.
16) What cylinder covers a deadbolt or a handleset, given the Schlage 20-001 is a mortise cylinder?
Kaba Ilco 1549 Series is a key in deadbolt cylinder and Kaba Ilco 1599 is a key in knob replacement cylinder. Medeco 1075127 is a five pin rim type lazy motion single cylinder for handlesets and deadbolts, and Medeco 1012040 is a six pin lazy motion rim cylinder for Kwikset single cylinder deadbolts. For Emtek and Arrow work, Medeco 1065140 is a five pin retrofit cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder, Medeco 1065244 is a five pin rim lazy motion cylinder with an Emtek tailpiece, and Emtek CY4 is a cylinder sold each. The Schlage 20-001 is a commercial mortise cylinder and belongs in a mortise lock rather than any of those preps.
17) Our storefront runs Adams Rite MS1847 deadlocks. Does the Schlage 20-001 serve those openings or is there a dedicated part?
Adams Rite builds dedicated cylinder pulls for that system. The 4024 is a cylinder pull with trim plate mounting for MS1847 deadlock and deadlatch systems, the 4025 is a five pin tumbler cylinder pull with through screws for the same MS1847 deadlock and deadlatch, and the 4026 is a five pin tumbler cylinder pull for wood door applications, designed for the Adams Rite 5017 wood door deadlock and deadlatch. Each of those is a pull and a cylinder in one part. The Schlage 20-001 is a mortise cylinder on its own, supplied with a compression ring and spring, and is non-handed.
18) Is the BEST 12E dummy cylinder an alternative to the Schlage 20-001?
No, they do different jobs. BEST 12E Series is a dummy rim cylinder at 1-5/32 inch diameter, so it fills a cylinder opening without operating a lock, and it is a rim format rather than mortise. The Schlage 20-001 is a keyed mortise cylinder supplied with two keys and covering basic and enhanced security. Use the dummy where an inactive leaf or an unused prep needs to look finished, and the mortise cylinder where the door has to lock.
19) What is the difference between ordering a Corbin Russwin 1070 mortise housing and a complete cylinder like the Schlage 20-001?
Corbin Russwin CR1070-114-A01 is a 1070 Grade 1 Series 1-1/4 inch six pin mortise housing with an A01 cloverleaf cam, while Corbin Russwin CR1000-112 is a 1000 Grade 1 Series mortise cylinder at 1-1/2 inch with an A02 straight cam. The Schlage 20-001 is a mortise cylinder shipped with two keys and a compression ring and spring, in 605 bright brass or 626 satin chrome with the C keyway. On the Schlage modular platform, front housing, rear housing, cam and tailpiece are the parts that define the finished cylinder type, which is why housings and complete cylinders are stocked as separate line items.
