Schlage Commercial 20-062 6-Pi...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$229.00
$162.55

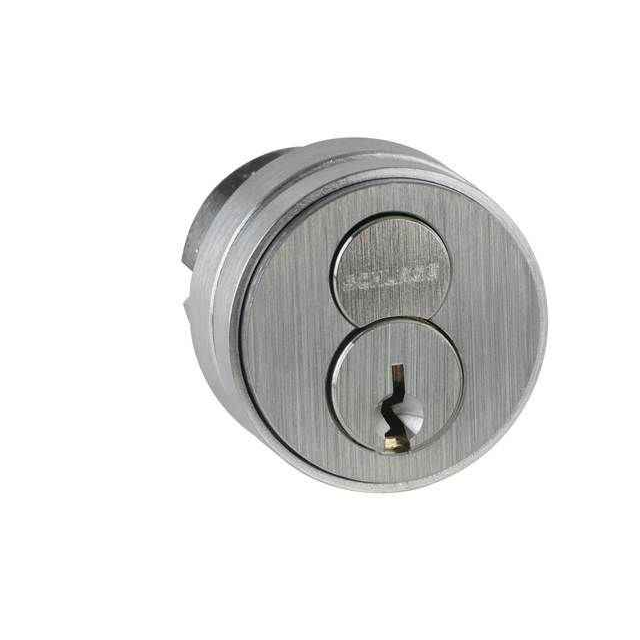

Schlage Commercial 20-062 6-Pin 1-1/2 In. FSIC Mortise Cylinder, Adams Rite Cam, Compression Ring, Spring, 3/16 In. & 3/8 In. Blocking Rings, 2 Keys

Schlage Commercial 20-062 6-Pin 1-1/2 In. FSIC Mortise Cylinder, Adams Rite Cam, Compression Ring, Spring, 3/16 In. & 3/8 In. Blocking Rings, 2 Keys

(No reviews yet) Write a Review

Model: 20-062 S123 626
$229.00
$162.55
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$229.00
$162.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Modular Cylider Overview

One cylinder is the foundation for every lock you need, add more flexibility with less inventory dollars, and make your job easier, faster and more profitable.
Now you can service almost any lock on any door with just one cylinder. Simply by adding or changing the front and back housing you can convert a modular cylinder into multiple cylinder types, including mortise, rim and key-in-lever. The revolutionary Schlage® Modular cylinder will dramatically reduce your inventory because you will be able to make almost any cylinder type from a series of modular components and parts.
Now, one cylinder changes everything.

Our modular cylinder is the foundation for every lock you neeS

  • One cylinder converts to three differnt cylinder types by changing the tailpiece, cam or rear housing
  • Accomadates thicker doors with six available lengths of rear housing sizes
  • Front housing available in all finishes to match the locks
  • Supports interchangeability between Everest 29™, Primus®XP, and Classic key systems
  • Fewer parts required to fill orders means less inventory and lower costs
  • Never be caught on the job without the right part

One cylinder really does fit all

Thanks to the extraordinary versatility of the Schlage® modular cylinder you’ll never be caught on the job again without the right part. You’ll be able to assemble almost any Schlage cylinder on the spot, while providing your customers the same security, toughness and quality that has made Schlage one of the best names in the business.

  • Adaptable to mortise, rim and key-in-lever or key-in-knob applications
  • Available in all Schlage keyways, including Everest 29TM and Primus® XP


DOWNLOADS

Schlage Key Systems, Cylinders and Keys Catalog

Manufacturer Resources

Product Specs

Features:
Basic Security, Enhanced Security
Warranty:
3 Year
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Cylinders
Keys Included:
2
Commercial/Residential:
Commercial
Cylinder and Keyways:
Full Size Interchangeable Core, 6-Pin
Lock Type:
Mortise
Compatibility:
Adams Rite 4500, 4700 Deadlatches
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
20-062
Product Function:
FSIC Core
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Schlage 20-062 S123 626 – Frequently Asked Questions

1) Is the Schlage 20-062 a full size interchangeable core cylinder, and does a core come with it?
The 20-062 is a full size interchangeable core (FSIC) mortise housing, 6-pin, and it comes with a core and two keys as ordered. FSIC means a control key pulls the core out in seconds, so you can rekey an opening without taking the cylinder out of the door. If you already run FSIC across your building and keep your own cores on the shelf, you can order it with the None (Select for Less Cylinder Options) keying choice and drop your own core in.
2) Can I get the Schlage 20-062 keyed alike to the rest of my Schlage cylinders?
Keyed alike is an ordering option on the 20-062, alongside keyed different as the standard. There's a key code field on the order, so if your building already runs a Schlage system you can give the existing code and have these cut to it. Twenty-five keyways are offered, from the standard C and the C1xx/S1xx series through E, EF, F, FG, G, P and CE, so match the keyway your existing cylinders use before you pick.
3) Will the Schlage 20-062 work in a rim exit device or a key-in-lever lock?
Not as it ships. The 20-062 is configured as a mortise cylinder with an Adams Rite cam. The Schlage modular platform does convert between mortise, rim and key-in-lever by changing the tailpiece, cam or rear housing, but for a rim device out of the box you want a rim cylinder such as the Corbin Russwin 3070 6-pin rim housing with a 1-7/8 inch tailpiece, and for a key-in-lever a lever cylinder like the Falcon A23161-05 G, 6-pin G keyway.
4) What is the difference between the Schlage 20-062 mortise cylinder and the Corbin Russwin 1080 LFIC mortise cylinder?
Both are 1-1/2 inch 6-pin mortise cylinders, but they take different cores. The Schlage 20-062 is a full size interchangeable core (FSIC) 6-pin cylinder and ships with an Adams Rite cam for Adams Rite 4500 and 4700 deadlatches. The Corbin Russwin 1080 is a 1-1/2 inch LFIC (large format interchangeable core) 6-pin mortise cylinder built with an A01 cloverleaf cam for Schlage L9000 mortise locks. Choose by the core system your facility already keys to and by the cam the lock body needs: an Adams Rite deadlatch and a Schlage L9000 mortise lock do not take the same cam.
5) What is a simpler alternative to a Schlage FSIC mortise cylinder for an Adams Rite deadlock opening?
If the opening does not need interchangeable core keying, the Adams Rite 4036 mortise cylinder is the straightforward fixed-core route. It is a five-pin Grade 1 mortise cylinder in the 4036 series with a 1/2 inch minimum door thickness. The Schlage 20-062 is the choice when the cylinder has to accept a full size interchangeable core so cores can be swapped without pulling the lock, and it carries a 6-pin core rather than five.
6) What should I order for an Adams Rite MS1847 deadlock instead of a mortise cylinder?
The MS1847 deadlock family takes a cylinder pull rather than a plain mortise cylinder. The Adams Rite 4024 cylinder pull mounts with a trim plate and the 4025 five pin tumbler cylinder pull mounts with through-screws, both designed for the Adams Rite MS1847 deadlock/deadlatch. For a wood door application, the 4026 five pin tumbler cylinder pull is built for the Adams Rite 5017 wood door deadlock/deadlatch. The Schlage 20-062 mortise cylinder is the part for Adams Rite 4500 and 4700 deadlatches, which is a different lock family.
7) What are the ICA, ICB and ICC options on the Schlage 20-062 cylinder?
Those are construction keyway cores, and they ship with zero keys. They're for a jobsite where trades need access during construction and the permanent keying gets installed at turnover. On an FSIC cylinder that changeover is a core swap, no cylinder removal. If you want a working cylinder out of the box, pick one of the standard keyways instead, which come 1-bitted with two keys.
8) What's the difference between the Schlage 20-062 and a standard non-interchangeable mortise cylinder?
Both thread into the same mortise cylinder prep, but the 20-062 is a full size interchangeable core: the core comes out with a control key, so rekeying a door is a 10 second swap with no tools and no disassembly. A conventional mortise cylinder like the Corbin Russwin 1000 Series, also 1-1/2 inch, has to be pulled and pinned by a locksmith to rekey. If you manage a lot of doors and turnover is frequent, FSIC pays back; for one or two doors that rarely change, a conventional cylinder is fewer parts.
9) I need a mortise cylinder for an Adams Rite lock but not interchangeable core. What else is there?
For a straight conventional cylinder in an Adams Rite application, the Adams Rite 4036 mortise cylinder is the native part, five-pin, Grade 1, with a stated 1/2 inch minimum door thickness. The Schlage 20-062 is the choice when you want the Adams Rite cam but on a Schlage keyway with a removable FSIC core. Another Adams Rite specific route is the Detex MC65, a 1-1/8 inch 6-pin mortise cylinder cut to the Schlage C keyway, which is shorter than the 20-062 and suits a shallower prep.
10) Can I use the Schlage 20-062 with Primus XP or Everest 29 keys?
Yes. The Schlage modular cylinder platform supports interchangeability between Everest 29, Primus XP and Classic key systems, so a facility standardized on any of those can carry the 20-062 on the same system. The keyway you select at order determines which family the cylinder is cut to, so specify the one your master system already uses.
11) What is the difference between a mortise cylinder and a rim cylinder when replacing hardware?
A mortise cylinder threads into the lock body and drives it through a cam. The Schlage 20-062 is a mortise cylinder supplied with an Adams Rite cam. A rim cylinder mounts behind the door and drives the lock through a tailpiece instead: the Corbin Russwin 3070 is a 6-pin rim cylinder housing with a 1-7/8 inch tailpiece, and the Medeco 1012040 is a 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts. Confirm whether the lock takes a cam or a tailpiece before ordering, because the two are not interchangeable.
12) Which cylinder do I use for a key-in-lever or key-in-knob lock rather than a mortise lock?
Key-in-lever and key-in-knob locks take a cylinder built for that trim, not a mortise cylinder. The Falcon A23161-05 G is a key-in-lever cylinder for the RU/T series with a 6-pin G keyway, keyed different, with 2 cut keys. The Kaba Ilco 1539 is a key-in-knob and lever universal cylinder, the 1579 is a knob and lever cylinder for Sargent, and the 1599 is a key-in-knob replacement cylinder. The Schlage 20-062 is a mortise cylinder and belongs in a mortise lock body.
13) What cylinder replaces the one in a deadbolt if the Schlage 20-062 is not the right part?
For deadbolt applications, the Kaba Ilco 1549 key-in-deadbolt cylinder is built for that function, and the Medeco 1065140 is a 5-pin retrofit cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder. The Medeco 1075127 is a 5-pin rim type lazy motion single cylinder for handlesets and deadbolts. The Schlage 20-062 is a mortise cylinder for Adams Rite 4500 and 4700 deadlatches, which is a latch rather than a deadbolt.
14) Does the Schlage 20-062 cylinder come in a finish that matches my storefront hardware?
Six finishes: 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 622 matte black, 625 bright chrome and 626 satin chrome. On aluminum storefront, 626 satin chrome is the usual match for clear anodized and 613 or 622 for dark bronze and black anodized. The body is brass underneath.
15) Does handing matter when ordering the Schlage 20-062 mortise cylinder?
No handing to specify. The 20-062 is non-handed, so the same part goes on a left or right hand door. The cam orientation is set when you thread the cylinder in and tighten the set screw, not by which version you bought.
16) Is the Schlage 20-062 cylinder rated for commercial use?
It's a commercial product, brass bodied, and Schlage lists it with both basic and enhanced security options depending on the keyway family you order. High traffic storefront and multi-family entrances running Adams Rite 4500 or 4700 deadlatches are the intended application.
17) Is a dummy cylinder an acceptable substitute for a keyed mortise cylinder?
Only where nothing is being locked. The BEST 12E series dummy rim cylinder with a 1-5/32 inch diameter fills an opening for appearance and takes no key. The Schlage 20-062 is a keyed 6-pin full size interchangeable core mortise cylinder supplied with 2 keys and is what you order when the door has to secure. A dummy is useful on an inactive leaf or a matched pair where only one side operates.
18) Which cylinder matches an Emtek lockset rather than a commercial mortise application?
Emtek trim is served by cylinders built for it. The Emtek CY4 cylinder is sold individually as an Emtek part, and the Medeco 1065244 is a 5-pin rim lazy motion rim type cylinder supplied with an Emtek tailpiece. The Schlage 20-062 is a commercial mortise cylinder for Adams Rite 4500 and 4700 deadlatches and will not drive an Emtek residential handleset.
