Schlage B502-486 Non-Modular Straight Mortise Classic Conventional Cylinder Cam for Corbin Russwin Master Ring

Schlage B502-486 Non-Modular Straight Mortise Classic Conventional Cylinder Cam for Corbin Russwin Master Ring

(No reviews yet) Write a Review

Model: B502-486

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.30
$50.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B502-486 Non-Modular Straight Mortise Classic Conventional Cylinder Cam for Corbin Russwin Master Ring

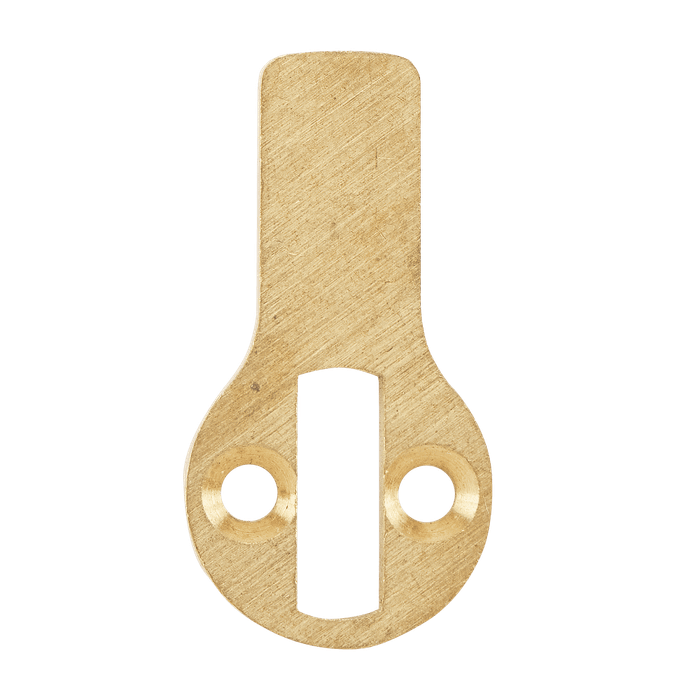

The Schlage B502-486 is a Non-Modular Straight Mortise Classic Conventional Cylinder Cam engineered for use with the Corbin Russwin Master Ring. Designed as a precision replacement component for commercial mortise lock applications, this cam provides a reliable mechanical interface between the cylinder and lock body. Intended for commercial door hardware installations, the B502-486 ensures proper cylinder function when paired with the specified Corbin Russwin Master Ring configuration.

Key Features

  • Corbin Russwin Master Ring Compatibility: Specifically designed for use with Corbin Russwin Master Ring assemblies, ensuring proper fit and mechanical engagement in compatible mortise lock systems.
  • Non-Modular Design: Features a classic conventional non-modular construction for straightforward installation in traditional mortise cylinder applications.
  • Straight Cam Configuration: Straight mortise cam geometry provides positive, reliable actuation of the mortise lock mechanism for consistent performance.
  • Commercial-Grade Quality: Manufactured to Schlage's commercial standards as a genuine Schlage part, supporting dependable operation in demanding commercial environments.
  • Precision Replacement Part: Serves as a purpose-built replacement component for restoring proper cylinder cam function in existing mortise lock installations.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cams & Cam Locks
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: B502-486
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Schlage B502?

Schlage replacement parts like the B502-486 are manufactured to the same exacting commercial standards as original equipment, ensuring reliable mechanical performance in mortise lock systems. As a genuine Schlage component, the B502-486 is engineered for precise compatibility with Corbin Russwin Master Ring configurations, making it the dependable choice for maintaining and restoring commercial mortise lock function.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cams & Cam Locks
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
B502-486
Features:
Schlage Parts

Schlage B502-486 – Frequently Asked Questions

1) What does the Schlage B502-486 cam actually do in a mortise lock?
The B502-486 is the cam that bolts to the back of a conventional mortise cylinder and transfers key rotation into the lock body. It is a straight cam, so the tailpiece geometry runs flat off the cylinder rather than offset, and it is the mechanical link between the cylinder and the lock mechanism. If a key turns freely but the lock does not retract, the cam is the part you replace.
2) Will the Schlage B502-486 cam work with a Corbin Russwin master ring cylinder?
That is exactly what it is built for. The B502-486 is specified for use with the Corbin Russwin Master Ring configuration, so a locksmith servicing a master ring system in a mortise lock uses this cam to get correct fit and mechanical engagement. For a standard Schlage conventional mortise cylinder with no master ring, you want a different cam from the B502 family.
3) Is the B502-486 a modular cam or a non-modular one?
Non-modular. It is a classic conventional cam, meaning it is made for traditional one-piece mortise cylinders rather than Schlage's modular cylinder platform. If your cylinder is a modular type with an interchangeable housing, this cam is not the right part.
4) Do I get a cylinder with the Schlage B502-486, or just the cam?
Just the cam. The B502-486 is sold as a replacement component only, so you supply the mortise cylinder, the master ring assembly, and any screws that came with your existing cylinder. Order it when the cam is worn, wrong, or missing and the cylinder itself is still good.
5) Is the Schlage B502-486 cam suitable for commercial buildings or is it a residential part?
Commercial. Schlage classifies the B502-486 as a commercial replacement part, and it is used in mortise lock openings in office buildings, schools, healthcare facilities, government buildings, retail, industrial sites, and multi-tenant residential properties. For a facility standardizing cylinder service parts across many mortise locks, this is the cam to stock where Corbin Russwin master ring cylinders are in use.
6) Is the Schlage B502-486 a genuine Schlage part or an aftermarket copy?
Genuine Schlage. It is produced as a Schlage part to the same commercial standards as the original equipment cam, which matters when you are rebuilding a mortise cylinder that has to keep working on a high-traffic opening.
How fast can I get the Schlage B502-486 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Schlage B502-486 come with a warranty?
Absolutely. The Schlage B502-486 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Schlage B502-486?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Schlage B502-486 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
