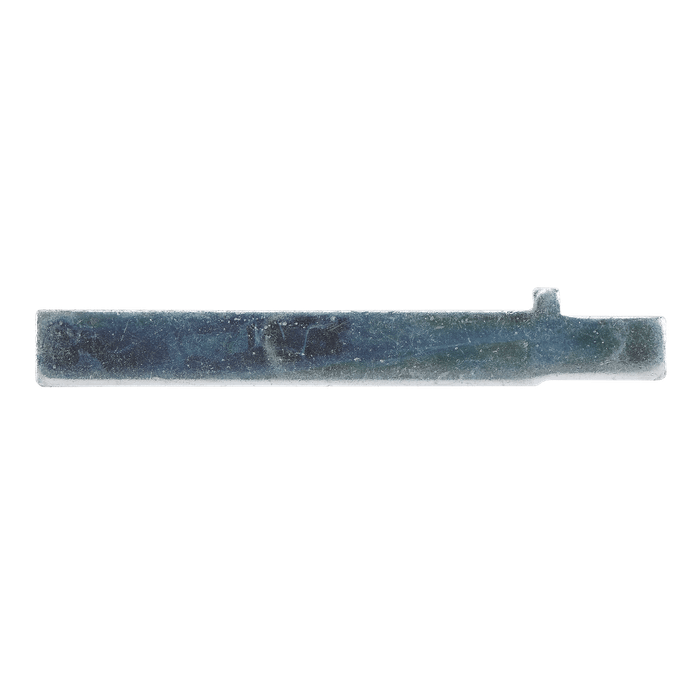

Schlage B520-242 Lazy Tailpiece for B250/460 and H Series IC Core Locks, Single Cylinder Replacement Part

Schlage B520-242 Lazy Tailpiece for B250/460 and H Series IC Core Locks, Single Cylinder Replacement Part

(No reviews yet) Write a Review

Model: B520-242

In Stock (leaves warehouse same day if ordered before 3pm ET)

$23.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B520-242 Lazy Tailpiece for B250/460 and H Series IC Core Locks, Single Cylinder Replacement Part

The Schlage B520-242 is a commercial-grade Lazy Tailpiece replacement part designed for precise compatibility with a range of Schlage IC Core lock applications. This 2.2" Single Cylinder tailpiece is engineered for use with B250/460 IC Core cylinders installed in doors with thickness ranges of 1-5/16" to 2-1/8" or over 2-5/8" to 3-1/8", H Series (except H160) IC Core cylinders on 1-3/4" or 1-3/8" doors, and S200 Series (manufactured before February 26, 2008) IC Core cylinders on doors ranging from 1-3/8" to 1-5/8" in thickness. Ideal for maintaining proper cylinder operation in demanding commercial lock installations.

Key Features

  • Door Thickness Compatibility, B250/460 IC Core: Fits doors with thickness ranges of 1-5/16" to 2-1/8" or over 2-5/8" to 3-1/8" for versatile commercial door applications.
  • Door Thickness Compatibility, H Series IC Core: Compatible with H Series (except H160) IC Core installations on 1-3/4" or 1-3/8" doors, covering a broad range of commercial door preparations.
  • Door Thickness Compatibility, S200 Series IC Core: Designed for S200 Series IC Core cylinders (manufactured before February 26, 2008) on doors from 1-3/8" to 1-5/8" thick, ensuring proper legacy system support.
  • Single Cylinder Configuration: 2.2" Single Cylinder design ensures correct tailpiece length and engagement for reliable lock operation across all compatible IC Core applications.
  • Broad IC Core Series Compatibility: Works across B250/460, H Series (except H160), and S200 Series (pre-February 26, 2008) IC Core lock families, making it a versatile replacement solution.
  • Commercial-Grade Replacement Part: Engineered as an OEM-specification Schlage replacement part for use in commercial mechanical lock systems, maintaining original performance standards.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinder Tailpiece
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: B520-242
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Mixed-Use Properties

Why Schlage B520?

Schlage replacement parts like the B520-242 Lazy Tailpiece are manufactured to OEM specifications, ensuring proper fit and function within Schlage IC Core lock systems across multiple compatible series. Designed for commercial applications, this tailpiece maintains the performance integrity of B250/460, H Series, and S200 Series IC Core installations, delivering the reliable cylinder operation that professional lock technicians and facility managers depend on.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylinder Tailpiece
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
B520-242
Features:
Schlage Parts

Schlage B520-242 – Frequently Asked Questions

1) What is the Schlage B520-242 lazy tailpiece used for?
The B520-242 is the tailpiece that transfers the turn of a Schlage interchangeable core cylinder to the lock mechanism. It is a 2.2 inch single cylinder lazy tailpiece used with B250/460 IC core cylinders, H Series IC core cylinders (except H160), and S200 Series IC core cylinders built before February 26, 2008. If a key turns in the core but the bolt does not move, the tailpiece is usually the part being replaced.
2) What door thickness does the Schlage B520-242 tailpiece cover on a B250 or B460 deadbolt?
With B250/460 IC core cylinders the B520-242 covers doors from 1-5/16 to 2-1/8 inches, and also doors over 2-5/8 up to 3-1/8 inches. Doors falling between 2-1/8 and 2-5/8 inches are outside what this length handles.
3) I have Schlage S200 Series locks in my building. Does this tailpiece fit them?
Only the older ones. The B520-242 applies to S200 Series IC core cylinders manufactured before February 26, 2008, on doors 1-3/8 to 1-5/8 inches thick. S200 cylinders made after that date use a different tailpiece, so check the manufacture date before ordering for a legacy retrofit.
4) Is the B520-242 for a single cylinder or double cylinder lock?
Single cylinder. The 2.2 inch length is sized for single cylinder IC core applications, so a double cylinder deadbolt with a keyed core on both faces needs a different tailpiece.
5) Can one tailpiece part number cover a mixed building of Schlage IC core locks?
Across a lot of it, yes. The B520-242 spans three Schlage IC core families, B250/460, H Series other than H160, and pre-2008 S200, which is why facility and MRO buyers keep it on the shelf. What decides it on each opening is door thickness, since each family has its own stated range for this length.
6) Is the Schlage B520-242 an OEM part or an aftermarket copy?
It is a Schlage part built to OEM specification, model B520-242, intended for commercial mechanical lock systems rather than residential grade hardware. For a facility standardized on Schlage IC cores, it keeps the original fit and engagement in the cylinder.
