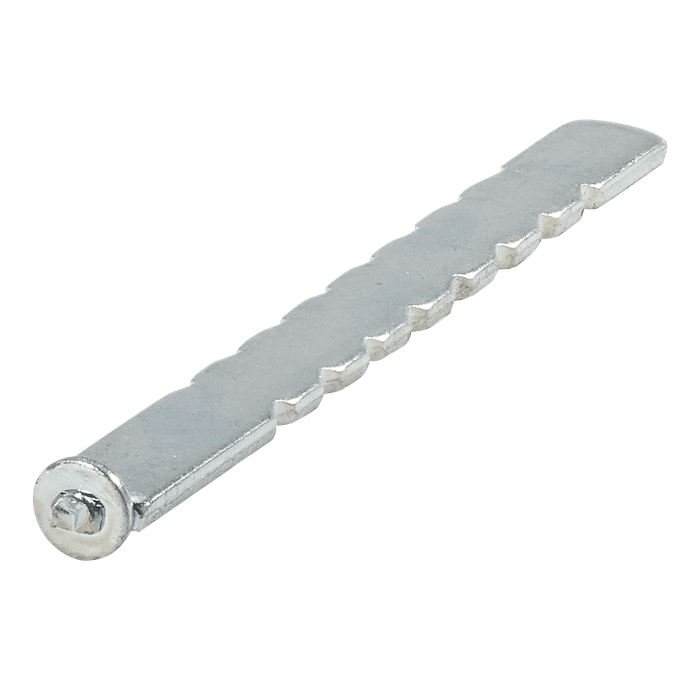

Schlage E205-204 Lazy Tailpiece for B250/460 and B460N 6-Pin Conventional Single Cylinder

Schlage E205-204 Lazy Tailpiece for B250/460 and B460N 6-Pin Conventional Single Cylinder

(No reviews yet) Write a Review

Model: E205-204

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage E205-204 Lazy Tailpiece for B250/460 and B460N 6-Pin Conventional Single Cylinder

The Schlage E205-204 is a commercial-grade Lazy Tailpiece replacement part engineered for precise compatibility with multiple Schlage cylinder and lock series. Designed for use with B250/460 6-Pin Conventional Single Cylinder configurations featuring a 3" breakoff on doors over 2-3/8" up to 2-9/16" thick, as well as B460N, E/EB51N, and EB52 lower 6-Pin Conventional Single Cylinder 3" breakoff applications on doors ranging from 1-3/4" to 2-1/4" and over 2-3/8" to 2-9/16". This genuine Schlage replacement part ensures reliable mechanical function and a proper fit within compatible locking systems used in demanding commercial environments.

Key Features

  • Door Thickness Compatibility: Supports doors from 1-3/4" to 2-1/4" and over 2-3/8" up to 2-9/16" thick for broad commercial door compatibility.
  • Cylinder Compatibility: Designed for use with B250/460 6-Pin Conventional Single Cylinder (3" breakoff) and B460N, E/EB51N, and EB52 lower 6-Pin Conventional Single Cylinder (3" breakoff) configurations.
  • 3" Breakoff Cylinder Support: Specifically engineered for 3" breakoff cylinder formats, ensuring correct mechanical engagement and tailpiece travel.
  • Genuine Schlage Part: An authentic Schlage replacement component, maintaining the fit, finish, and mechanical integrity of the original hardware.
  • Commercial-Grade Construction: Built to the quality standards required for commercial mechanical lock applications in high-use environments.
  • Drop-In Replacement: Engineered for straightforward integration with compatible Schlage lock series, minimizing downtime during replacement or service.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinder Tailpiece
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: E205-204
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Schlage E205?

Schlage replacement parts like the E205-204 Lazy Tailpiece are manufactured to the same specifications as original components, ensuring consistent mechanical performance in commercial lock systems. Engineered for compatibility across multiple Schlage cylinder series, this tailpiece provides a dependable, professional-grade solution for service technicians and facility managers maintaining high-use door hardware installations.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylinder Tailpiece
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
E205-204
Features:
Schlage Parts

Schlage E205-204 – Frequently Asked Questions

1) What door thickness does the Schlage E205-204 lazy tailpiece cover?
The E205-204 covers two thickness bands, depending on the cylinder it's serving. With a B250/460 6-pin conventional single cylinder on a 3 inch breakoff, it's for doors over 2-3/8 inches up to 2-9/16 inches. With the B460N, E/EB51N and EB52 lower 6-pin conventional single cylinder on a 3 inch breakoff, it covers 1-3/4 to 2-1/4 inches as well as over 2-3/8 up to 2-9/16 inches. Standard 1-3/4 inch commercial doors fall in that second group, so match the tailpiece to the cylinder series first, then the door.
2) Can I use the E205-204 tailpiece on residential Schlage locks?
It's specified as a commercial part, matched to commercial mechanical lock lines like the B250/460 and B460N deadbolts. For a residential-grade Schlage deadbolt, the tailpiece that shipped with that lock is the one to source; this one is cut for the commercial 6-pin conventional single cylinder with a 3 inch breakoff.
3) What is a lazy tailpiece and why would a lock need one instead of a standard tailpiece?
A tailpiece is the flat blade off the back of the cylinder that transmits key rotation to the lock mechanism. A lazy tailpiece is free to rotate independently rather than being fixed to the plug, so the cylinder can turn without driving the mechanism through its full travel in both directions. The E205-204 is the lazy version Schlage specifies for the 6-pin conventional single cylinder setups listed for it. Swapping in a standard fixed tailpiece changes how the lock behaves, so replace like for like.
4) What does the 3 inch breakoff mean when ordering the E205-204?
The 3 inch breakoff refers to the cylinder length format the tailpiece is cut for, with scored break points so the installer snaps it to the depth the door requires. The E205-204 is engineered specifically for the 3 inch breakoff cylinder format so the engagement and tailpiece travel come out right. Confirm your cylinder is the 3 inch breakoff version before ordering, because tailpiece length is what drives the door thickness range.
5) Do I need to order anything else with the E205-204, or does it come with the cylinder?
The E205-204 is the tailpiece on its own, a service part. The cylinder, plug, pins, and any mounting screws are not part of it. If you're rebuilding a B250/460 or B460N single cylinder, order the cylinder separately and use this tailpiece to complete the drive to the lock body.
6) I'm standardizing deadbolt service parts across a campus. Does one E205-204 cover multiple Schlage lock series?
Yes, and that's the practical reason to stock it. The same E205-204 serves B250/460, B460N, E/EB51N and EB52 6-pin conventional single cylinders on the 3 inch breakoff, across doors from 1-3/4 up to 2-9/16 inches. For a facility running a mix of those series, one tailpiece part number covers the fleet instead of several.
7) Is the Schlage E205-204 a genuine Schlage part or an aftermarket equivalent?
It's a genuine Schlage component, model E205-204, sold as a factory replacement part rather than an aftermarket copy. That matters on a cylinder tailpiece because the blade thickness and slot engagement have to match the lock chassis exactly.
