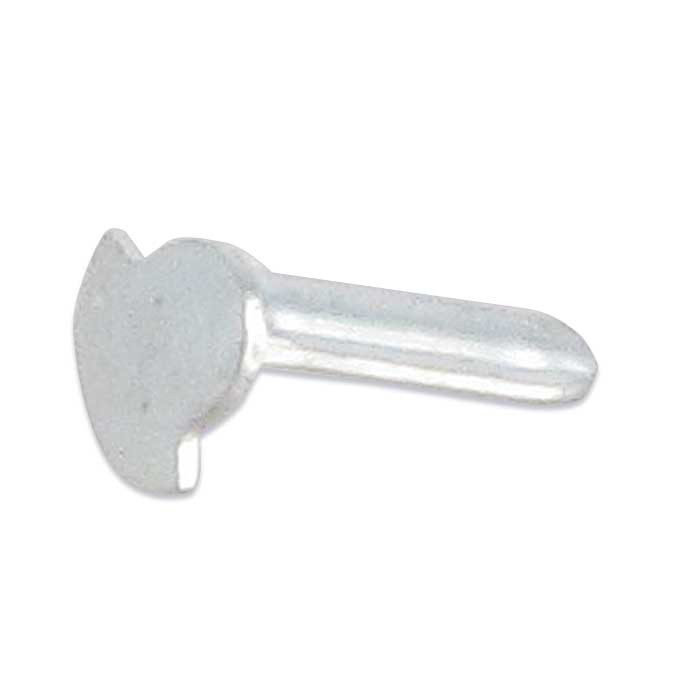

Schlage Commercial B600-085 B562 Classic Modular and Everest/Primus Double Cylinder Tailpiece, 1-3/8 " to 1-3/4" Door Thickness

Schlage Commercial B600-085 B562 Classic Modular and Everest/Primus Double Cylinder Tailpiece, 1-3/8 " to 1-3/4" Door Thickness

(No reviews yet) Write a Review

Model: B600-085

In Stock (leaves warehouse same day if ordered before 3pm ET)

$12.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Commercial B600-085 B562 Classic Modular and Everest/Primus Double Cylinder Tailpiece, 1-3/8 " to 1-3/4" Door Thickness

Manufacturer Resources

Product Specs

Warranty:
Limited Lifetime Mechanical/Finish
Product Group:
Mechanical Locks
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage B600-085 – Frequently Asked Questions

1) What door thickness does the Schlage B600-085 tailpiece cover?
The B600-085 tailpiece is sized for doors from 1-3/8 to 1-3/4 inches thick, which covers both the common older interior door and the standard commercial 1-3/4 inch door. If your opening falls in that range, this is the tailpiece length you want for a B562 double cylinder deadbolt.
2) Is the Schlage B600-085 a complete deadbolt or just a replacement part?
It's a part, not a lock. The B600-085 is the tailpiece only, the flat driver bar that transmits cylinder rotation to the deadbolt mechanism. You still need the cylinders and the deadbolt body. Order it when you're rebuilding or re-cylindering a B562 double cylinder deadbolt, or when a tailpiece has sheared or is the wrong length for the door.
3) Will the B600-085 tailpiece work with Everest and Primus cylinders?
Yes. This tailpiece is specified for Schlage Classic modular cylinders as well as Everest and Primus cylinders, so it carries across a standard-keyway building and a high security restricted-keyway one. That matters if you're standardizing tailpiece stock across a property where some doors are keyed Primus and the rest are conventional.
4) Does the B600-085 tailpiece fit a single cylinder deadbolt with a thumbturn?
No. This one is the double cylinder tailpiece, meaning key operation on both sides of the door. A single cylinder deadbolt with an inside thumbturn uses a different tailpiece. Pulling the right part number off the deadbolt function first will save you a return.
5) I'm a property manager rekeying several Schlage B562 deadbolts. Do I need new tailpieces?
Usually not for a straight rekey, since the tailpiece stays with the deadbolt. You need the B600-085 when you're swapping cylinder types, moving from Classic to Everest or Primus, or when the existing tailpiece is damaged or the wrong length for a door that falls between 1-3/8 and 1-3/4 inches thick.
