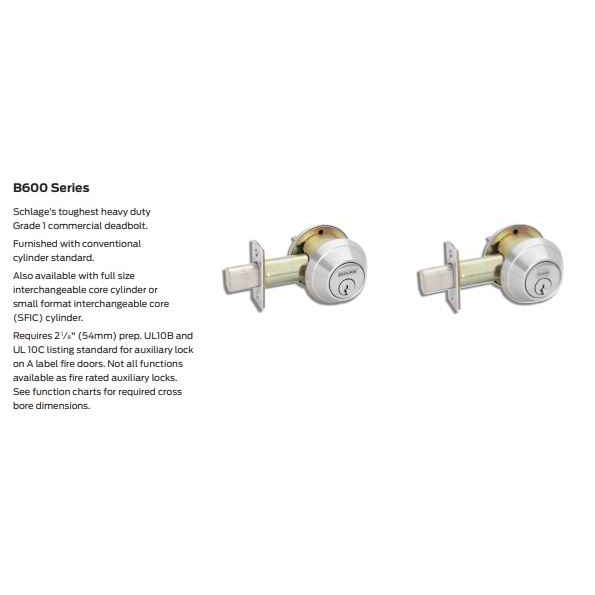

Schlage B662 Cylinder, Primus, 1-3/8 - 2 Inch Thick Door

Schlage 20-745 B662 Cylinder, Primus, 1-3/8 - 2 Inch Thick Door

(No reviews yet) Write a Review

Model: B662P 626-1
$392.00
$238.38
Selected Finish is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$392.00
$238.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B662 Double Cylinder Deadbolt, Primus Cylinder

Product Description

The Schlage B662 Primus is a commercial-grade, heavy-duty Grade 1 double cylinder deadbolt designed for maximum physical security and advanced key control. Engineered to withstand high-impact physical attacks, drill attempts, and forced entry, this deadbolt requires key operation from both the interior and exterior sides, making it an ideal choice for exterior doors with glass inserts or narrow-stile commercial entries.

Equipped with Schlage's high-security Primus cylinder system, this deadbolt provides a dual-locking mechanism utilizing side pins and a specialized sidebar alongside standard key pins. Accommodating standard door thicknesses from 1-3/8" to 2", the B662 combines an anti-drill, anti-saw solid steel bolt with restricted key duplication to protect high-security commercial, institutional, and government facilities.

Product Features

  • Double Cylinder Function (ANSI E0141): Operated by key from both sides. Provides enhanced security for glass-paneled doors to prevent unauthorized entry via glass breakage.

  • Schlage Primus High-Security Cylinder: Integrates a patented dual-locking pin and sidebar mechanism, offering exceptional resistance against lock picking, prying, and unauthorized key duplication.

  • Grade 1 Heavy-Duty Performance: Built with a thick solid sintered steel bolt and a hardened steel anti-saw pin to withstand severe physical attacks and force-entry attempts.

  • Anti-Drill & Anti-Pry Shielding: Free-spinning cylinder collars resist wrenching and prying, while hardened steel ball bearings protect mounting screws from drill attacks.

  • Universal Door Range: Designed to fit door thicknesses ranging from 1-3/8" to 2" (35mm – 51mm).

  • Reinforced Strike Plate: Supplied with a metal dustbox and 3-inch anchor screws to securely anchor the strike into the structural door frame.

Technical Specifications

Specification Details
Brand / Series Schlage (Allegion) — B600 Series Grade 1 Commercial Deadbolts
Model / SKU B662 (Double Cylinder) with Primus Cylinder
ANSI / BHMA Grade ANSI/BHMA A156.36 Grade 1 Certified
Fire Rating UL 10C / cUL Listed for up to 3-hour fire doors
Function Double Cylinder Deadbolt (ANSI E0141) — Keyed Outside / Keyed Inside
Cylinder Type Schlage Primus High-Security 6-Pin Cylinder (Patented sidebar mechanism)
Door Thickness Fits 1-3/8" to 2" (35mm to 51mm) standard doors
Backset Adjustable 2-3/8" (60mm) or 2-3/4" (70mm)
Bolt & Throw 1" (25mm) throw solid sintered steel deadbolt with hardened steel anti-saw roller pin
Faceplate 1-1/8" x 2-1/4" Square Corner standard
Strike 1-1/8" x 2-3/4" Square Corner with heavy-duty frame reinforcer plate & 3" screws
Cross Bore / Edge Bore Standard 2-1/8" (54mm) cross bore; 1" (25mm) edge bore
Warranty 3-Year Limited Commercial Mechanical Warranty

Product Specs

Subcategory:
Deadbolts
Series:
B600 Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Keys Included:
2
Warranty:
10 Year
Standard Latch:
12-296: Deadbolts - Adjustable 2-3/8" or 2-3/4"- Square corner, 1-1/8" x 2-1/4", 1" Housing Diameter
Standard Strike:
10-094: Square corner, no box, 1-1/8" x 2-3/4"
Keyed:
Yes
ANSI/BHMA:
E0141
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Deadbolt
Electronic:
No
Keyed Function:
Double Cylinder
Commercial/Residential:
Commercial
Cylinder and Keyways:
6-pin Conventional Cylinder (C Keyway)
Lock Function:
Deadbolt
Lock Type:
Deadbolts
Product Attribute:
Deadbolts
Tags:
schlage b662p
Product Model:
B662
Product Function:
Double Cylinder
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage B662P 626-1 – Frequently Asked Questions

1) Will the Schlage B662 deadbolt fit a 1-3/4 inch commercial door with a 2-3/4 inch backset?
Yes. The B662 covers door thicknesses from 1-3/8 to 2 inches, and the deadbolt latch is adjustable for either a 2-3/8 or 2-3/4 inch backset, so a standard 1-3/4 inch commercial door with either common backset is covered without ordering a special latch.
2) Can I drop the B662 into an existing deadbolt prep, or does the door need new boring?
It uses the standard deadbolt prep: a 2-1/8 inch cross bore in the face and a 1 inch edge bore, with a 1 inch housing diameter latch. If your door is already bored for a conventional commercial deadbolt at 2-3/8 or 2-3/4 inch backset, the B662 goes in without new holes. The face plate is a 1-1/8 x 2-1/4 inch square corner.
3) Is a double cylinder deadbolt like the B662 legal on an exit door, or should I use a single cylinder instead?
Keyed both sides means nobody leaves without a key, which is why the B662 is specified for storefronts and glass-insert doors where a thumbturn could be reached through broken glass. On a required means of egress, most codes will not allow a double keyed deadbolt on an occupied space, so for those openings use a single cylinder with an interior thumbturn from the same B600 Series. Check the occupancy with your AHJ before committing to E0141.
4) Can I use the Schlage B662 on a fire rated door?
The B662 is UL 10C / cUL Listed for use on fire doors up to 3 hours, and it is ANSI/BHMA A156.36 Grade 1 certified. Note that fire door assemblies generally require positive latching, so a deadbolt alone is not the latching device, it supplements a latching lock or exit device.
5) What is the difference between the P6, B and J cylinder options on the Schlage B662?
Three cylinder builds are offered. P6 ships as a 6-pin conventional cylinder in the C keyway, ready to key. B is SFIC less core, so you supply and install your own small format interchangeable core. J is FSIC less core, for Schlage full size interchangeable cores. If you already run a facility-wide interchangeable core system, order B or J and pin your own cores; if you just need a keyed deadbolt, take P6.
6) Will the B662 latch into the strike already in my frame?
The bolt throws a full 1 inch, and the supplied strike is a 1-1/8 x 2-3/4 inch square corner. An existing 1-1/8 x 2-3/4 square corner deadbolt strike will accept it. If the frame has a radius corner strike cutout, you will need to swap the strike or file the prep. The package includes a heavy duty frame reinforcer plate and 3 inch anchor screws to catch the stud behind the frame.
7) If I order the SFIC or FSIC version of the B662, do I get keys with it?
Two keys are listed as included, but the B and J options are supplied less core, so the core itself is not in the box. Plan on providing SFIC or FSIC cores and keys from your own keying system for those. The P6 conventional option is the one that arrives with a cylinder already in it.
8) Which finishes does the Schlage B662 come in, and is there anything for a healthcare corridor?
Twelve finishes are offered: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial, and 643E aged bronze. For patient rooms and clinical corridors, 626AM is the antimicrobial satin chrome. Each finish is available against all three cylinder options.
9) Is the Primus B662 worth it over a standard commercial deadbolt for key control?
The reason to pay for Primus is restricted key duplication. The cylinder adds a sidebar and side pins alongside the normal pin stack, so a blank cut on a standard machine will not operate it and copies have to come through controlled channels. Physically it also resists picking and prying. If your concern is only forced entry and not unauthorized keys, the same Grade 1 heavy duty body with a conventional C keyway cylinder gets you the 1 inch sintered steel bolt and anti-drill ball bearings without the key control program.
10) Can I standardize the B662 across a building and key it into my existing Schlage master key system?
Yes, that is what the cylinder options are for. Order J for FSIC or B for SFIC and pin the cores to your existing system so one master runs every opening; conventional systems are covered by the P6 6-pin C keyway. Being a B600 Series Grade 1 commercial deadbolt, the same body and prep repeats across all 33 cylinder and finish combinations, so a fleet stays on one prep and one parts list.
11) Is the Schlage B662 an electronic or access control lock?
No, it is purely mechanical. The B662 is a key-operated deadbolt with no wiring, no credential reader and no monitoring, so there is nothing to power or tie into an access control panel. If you need the bolt position reported or remote release, this is the wrong device.
