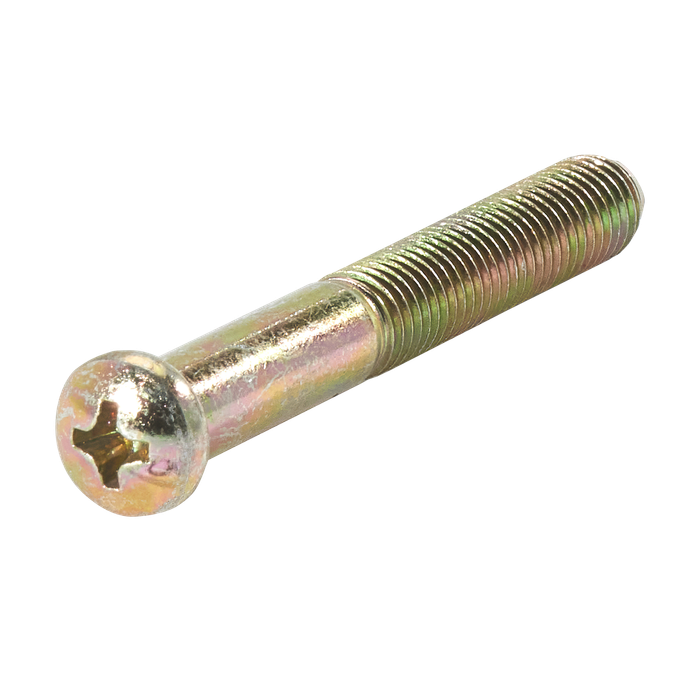

Schlage B600-100 Phillips Oval Head Machine Mounting Screw 1/4"-28 x 1-15/16" for B560/63 Conventional Cylinder and 1-3/8" to 1-3/4" Doors

Schlage B600-100 Phillips Oval Head Machine Mounting Screw 1/4"-28 x 1-15/16" for B560/63 Conventional Cylinder and 1-3/8" to 1-3/4" Doors

(No reviews yet) Write a Review

Model: B600-100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B600-100 Phillips Oval Head Machine Mounting Screw, 1/4"-28 x 1-15/16" for B560/63 Conventional Cylinder

The Schlage B600-100 is a Phillips Oval Head Machine Mounting Screw engineered as a genuine Schlage replacement part for use with B560/63 P Conventional Cylinder installations. Sized at 1/4"-28 x 1-15/16", this screw is specifically designed for doors ranging from 1-3/8" to 1-3/4" in thickness, ensuring a secure and precise fit in compatible commercial door hardware applications.

Key Features

  • Precise Thread Specification: 1/4"-28 thread pitch at 1-15/16" length provides a secure, factory-matched fastening solution for Schlage cylinder hardware.
  • Door Thickness Compatibility: Designed for use with doors ranging from 1-3/8" to 1-3/4" thick, covering the most common commercial door thickness range.
  • Cylinder Compatibility: Specifically engineered for use with the Schlage B560/63 P Conventional Cylinder, ensuring accurate fitment and reliable performance.
  • Oval Head Phillips Drive: Phillips oval head design provides flush, professional-grade installation with standard Phillips screwdrivers for convenient installation.
  • Genuine Schlage Part: Authentic Schlage replacement component, maintaining the integrity and performance of the original hardware assembly.
  • Commercial Grade: Rated for commercial applications, this screw pack meets the demands of high-use door hardware environments.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Screw Pack
  • Parts and Accessories Type: Installation Accessories
  • Commercial/Residential: Commercial
  • Product Model: B600-100
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Schlage B600-100?

The Schlage B600-100 delivers the precision and reliability expected from a genuine Schlage replacement component, purpose-built for B560/63 P Conventional Cylinder installations. With an exact 1/4"-28 x 1-15/16" specification and compatibility with 1-3/8" to 1-3/4" door thicknesses, this screw pack ensures proper assembly integrity in demanding commercial door hardware applications.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Screw Pack
Parts and Accessories Type:
Installation Accessories
Commercial/Residential:
Commercial
Product Model:
B600-100
Features:
Schlage Parts

Schlage B600-100 – Frequently Asked Questions

1) What is the Schlage B600-100 screw used for?
The B600-100 is the mounting screw that holds a Schlage B560/63 P conventional cylinder in place. It is a Phillips oval head machine screw, 1/4"-28 thread, 1-15/16" long, sold as a replacement part for commercial door hardware.
2) Will the Schlage B600-100 screw be long enough for a 1-3/4 inch door?
Yes. At 1-15/16" long, the B600-100 covers doors from 1-3/8" through 1-3/4" thick, which is the standard commercial range. If your door is thicker than 1-3/4", this is not the right screw length.
3) Can a Corbin Russwin ML2000 screw pack be used in place of the Schlage B600-100 cylinder mounting screw?
No. The Schlage B600-100 is a Phillips oval head machine mounting screw sized 1/4"-28 x 1-15/16" for the Schlage B560/63 conventional cylinder in 1-3/8" to 1-3/4" doors. The Corbin Russwin 429F31 is a screw packet for the ML2000 N escutcheon, and the 433F77 is a screw pack for ML2000 M and P escutcheons. Those serve Corbin Russwin mortise lock trim, not a Schlage cylinder, so the thread and length are matched to a different lock family. Order the B600-100 when you are remounting a Schlage B560/63 cylinder.
4) Is the B600-100 thread 1/4-28, and will a coarse-thread screw work instead?
The thread is 1/4"-28, a fine pitch. A coarse 1/4-20 screw will not thread into the Schlage cylinder housing, so substituting one risks stripping the tapped hole. Match the 1/4"-28 spec.
5) I need a short machine screw for a mortise strike, not a cylinder - is the B600-100 the right one?
No. At 1-15/16" long the Schlage B600-100 is sized to pass through a 1-3/8" to 1-3/4" door and secure a B560/63 conventional cylinder. For short strike and trim fastening on a Corbin Russwin ML2000, the 425F86-8 is a flat screw in 8-32 x 3/8", and the 206F57-8 is a strike combo screw for the ML2000. Those are the short fasteners; the B600-100 is the long cylinder screw.
6) Is this a genuine Schlage part or an aftermarket screw?
It is a genuine Schlage replacement component, model B600-100, catalogued as an installation accessory for commercial use. For facilities standardizing on Schlage B-series deadbolts, using the factory screw keeps the cylinder clamped to spec.
7) For standardizing fasteners across a commercial facility, how does the Schlage B600-100 differ from the ML2000 screw packs?
The Schlage B600-100 is a single commercial-grade screw specification - Phillips oval head, 1/4"-28 x 1-15/16" - tied to the B560/63 conventional cylinder, so it standardizes cleanly across Schlage cylinder openings in 1-3/8" to 1-3/4" doors. The Corbin Russwin 429F31 and 433F77 are screw packs organized by ML2000 escutcheon style, N on one and M and P on the other, so a Corbin Russwin facility stocks by trim style instead. Stock to whichever lock line your doors carry.
8) What tool do I need to install the B600-100 cylinder screw?
A standard Phillips screwdriver. The head is a Phillips oval head, which seats close to flush against the cylinder collar or plate.
