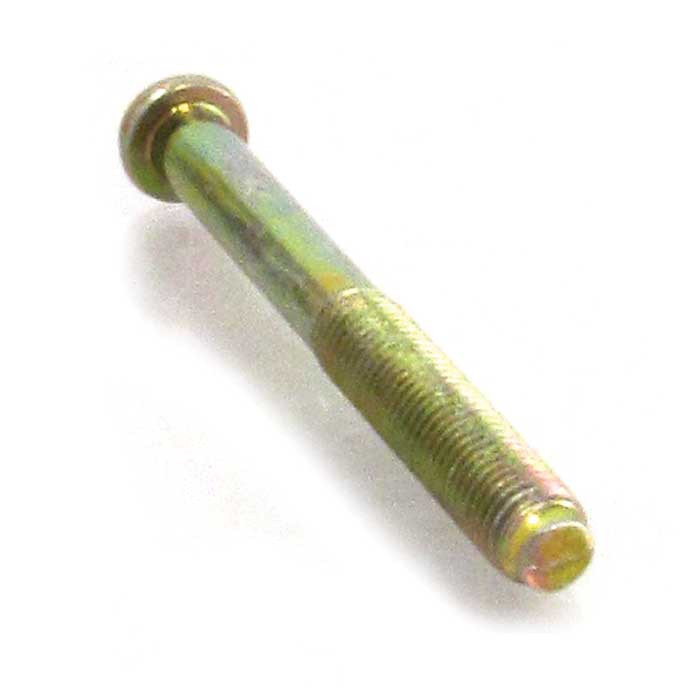

Schlage Commercial B600-101 Mounting Screw for B560P, B563P Deadlock, 1/4-28 x 1-15/16", For 1-3/4" to 2-1/4" Door Thickness
Manufacturer Resources
Product Specs
- Warranty:
- Limited Lifetime Mechanical/Finish
- Product Group:
- Mechanical Locks
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Schlage B600-101 – Frequently Asked Questions
1) My Schlage deadbolt is on a door thinner than 1-3/4 inches. Can I still use this screw?
No. The B600-101 is cut for the 1-3/4 to 2-1/4 inch thickness range. On a thinner door, such as a 1-3/8 inch interior leaf, the 1-15/16 inch screw runs past the mating post and the lock will not pull tight. You need the shorter screw from the B600 series sized for that thickness.
2) What thread size is the Schlage B600-101 deadbolt screw?
1/4-28, a fine machine thread, not a wood screw. It threads into the mating post on the opposite side of the deadlock, so it is not something you substitute with hardware store screws without matching both the 1/4-28 thread and the 1-15/16 inch length.
3) Is the B600-101 a complete deadbolt or just a part?
Just the screw. The B600-101 is an individual mounting fastener for Schlage B560P and B563P deadlocks, not a lock, cylinder, or trim. Property managers restocking a maintenance shop usually buy these in quantity because the mounting screw is the piece most often lost when a deadbolt comes off a door.
4) Does the B600-101 fit any Schlage B-series deadbolt or only certain models?
Schlage calls it out for the B560P and B563P deadlocks. Those are the models the 1/4-28 x 1-15/16 inch screw is specified against. Before ordering for a different B-series body, match the existing screw's thread and length rather than assuming the part carries across the whole line.
