Schlage Commercial Blocking Ring, For Use With Compression Ring

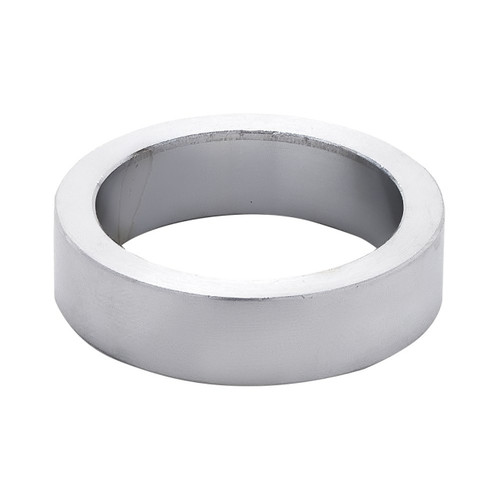

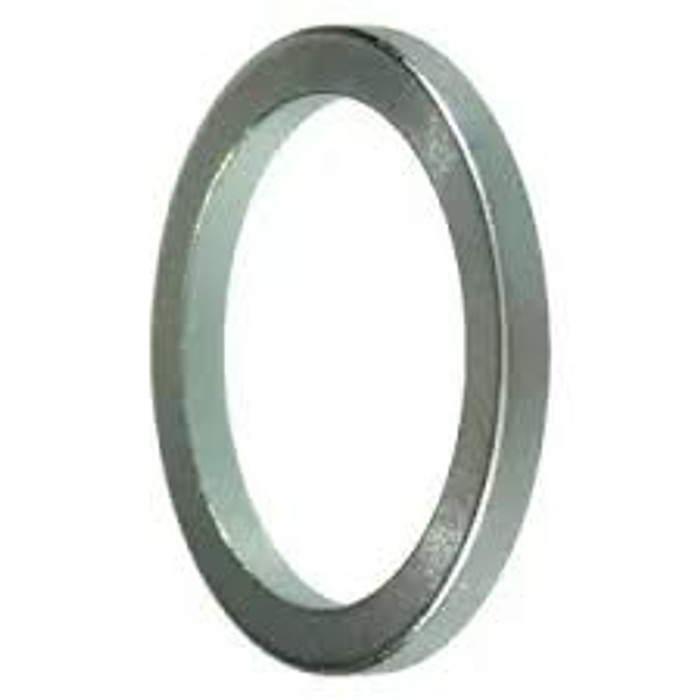

A blocking ring is a spacer that sits behind the cylinder collar to take up excess space when the cylinder sits proud of the door face. It works together with a Schlage compression ring, which is the spring ring that holds tension on the assembly. The blocking ring itself has no moving parts, it just fills the gap so the cylinder seats tight and the trim sits flush.

Schlage blocking rings come in 1/4 inch, 3/8 inch and 1/2 inch. The thickness you want is the amount the cylinder currently stands off the face of the door or trim once the compression ring is in place. Measure that gap and pick the ring that closes it. If you are between sizes, order the pair that brackets your measurement, since these stack behind the collar and the wrong thickness leaves either a wobbling cylinder or a cylinder you cannot fully seat.

The blocking ring is sold on its own. It is made to be used with a Schlage compression ring, so if your existing assembly is missing the compression ring or you are building the stack from scratch, order that separately. The blocking ring alone will not hold tension on the cylinder.

No. A blocking ring adds space behind the collar, it does not shorten the cylinder. If the cylinder projects too far, you need a shorter cylinder length. Blocking rings solve the opposite problem, where the cylinder sits too deep or loose in the prep and the collar has slop behind it.

Three finishes: 613 oil rubbed bronze, 625 bright chrome and 626 satin chrome. Every one of the three thicknesses (1/4, 3/8 and 1/2 inch) is offered in all three finishes, so you are not forced to change finish to get the spacing you need. For a property manager standardizing a building, 626 satin chrome is the usual match for satin chrome and satin stainless trim already hung on commercial openings.

Usually yes. Door thickness, trim depth and cylinder length vary opening to opening, so a locksmith or maintenance shop working a whole building typically carries all three thicknesses (1/4, 3/8 and 1/2 inch) in the finish that matches the building's hardware. That way the correct spacer is on the truck instead of the job stalling on a cylinder that will not seat.
