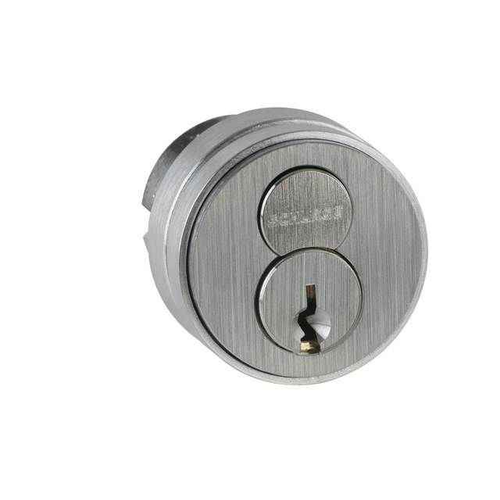

Schlage Commercial 30-137 1-1/2 In. FSIC Mortise Housing, Schlage L Cam, Compression Ring, Spring, 3/8 In. Blocking Ring

Schlage Commercial 30-137 1-1/2 In. FSIC Mortise Housing, Schlage L Cam, Compression Ring, Spring, 3/8 In. Blocking Ring

(No reviews yet) Write a Review

Model: 30-137 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$115.00
$68.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Modular Cylider Overview

One cylinder is the foundation for every lock you need, add more flexibility with less inventory dollars, and make your job easier, faster and more profitable.
Now you can service almost any lock on any door with just one cylinder. Simply by adding or changing the front and back housing you can convert a modular cylinder into multiple cylinder types, including mortise, rim and key-in-lever. The revolutionary Schlage® Modular cylinder will dramatically reduce your inventory because you will be able to make almost any cylinder type from a series of modular components and parts.
Now, one cylinder changes everything.

Our modular cylinder is the foundation for every lock you neeS

  • One cylinder converts to three differnt cylinder types by changing the tailpiece, cam or rear housing
  • Accomadates thicker doors with six available lengths of rear housing sizes
  • Front housing available in all finishes to match the locks
  • Supports interchangeability between Everest 29™, Primus®XP, and Classic key systems
  • Fewer parts required to fill orders means less inventory and lower costs
  • Never be caught on the job without the right part

One cylinder really does fit all

Thanks to the extraordinary versatility of the Schlage® modular cylinder you’ll never be caught on the job again without the right part. You’ll be able to assemble almost any Schlage cylinder on the spot, while providing your customers the same security, toughness and quality that has made Schlage one of the best names in the business.

  • Adaptable to mortise, rim and key-in-lever or key-in-knob applications
  • Available in all Schlage keyways, including Everest 29TM and Primus® XP


DOWNLOADS

Schlage Key Systems, Cylinders and Keys Catalog

Manufacturer Resources

Product Specs

Subcategory:
Parts and Accessories
Application:
Compression Ring, Spring, 3/8 In. Blocking Ring
Warranty:
3 Year
Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Commercial/Residential:
Commercial
Cylinder and Keyways:
L583-255 Cam
Lock Type:
Mortise
Product Type:
Cylinders
Compatibility:
Schlage L Mortise Locks less L9060 Exterior
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
30-137
Product Function:
SFIC Mortise Housing/Shell
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Product Substrate:
Stainless Steel
Department:
Door Hardware

Schlage 30-137 626 – Frequently Asked Questions

1) What is the difference between an SFIC mortise housing and a standard mortise cylinder?
An SFIC housing like the 30-137 is a shell only. It threads into the mortise lock and holds a small format interchangeable core, so a locksmith can pull and swap the core with a control key without touching the lock body. A conventional mortise cylinder such as the Corbin Russwin 1000 Series, 1-1/2 inch with an A02 straight cam, is a one piece cylinder that has to be removed from the lock to rekey. Pick the housing route when you want to rekey a building fast or rotate cores between openings, and the conventional cylinder when the opening is a one off.
2) Where do I get the SFIC core that goes into the Schlage 30-137 housing?
The core is a separate order. The BEST 1C Series standard 5-pin interchangeable core is the classic small format core, and the 1CB 150 Series and the drill resistant 1CDF 7-pin patented core are the higher security options in the same format. Match the core pinning to the master key system already running in the building, then drop it into the 30-137 shell.
3) Will the Schlage 30-137 mortise housing fit a rim exit device or a key-in-lever lock?
No. The 30-137 is configured as a mortise housing with the Schlage L cam, so it threads into a mortise lock case only. For a rim device you want a rim cylinder such as the Corbin Russwin 3070 6-pin rim housing with the 1-7/8 inch tailpiece. The modular Schlage platform does convert between mortise, rim, and key-in-lever, but that conversion is done by changing the tailpiece, cam, or rear housing, which means a different part number than this one.
4) What is the closest equivalent to a Schlage 30-137 1-1/2 inch FSIC mortise housing from another manufacturer?
The Corbin Russwin 1080 Grade 1 series is the nearest match: it is a 1-1/2 inch large-format interchangeable core mortise cylinder, 6-pin, built for Schlage L9000 mortise locks, and it uses the A01 cloverleaf cam. The Schlage 30-137 is a 1-1/2 inch FSIC mortise housing supplied with the Schlage L cam and fits Schlage L mortise locks less the L9060 exterior. Both land on the same opening - a Schlage L-series mortise lock taking a large-format interchangeable core at 1-1/2 inch - so the practical difference is which cam and core system your facility is already keyed to.
5) If the door does not need an interchangeable core, what mortise cylinder can be used instead of the Schlage 30-137?
A conventional one-piece mortise cylinder covers that opening. The Corbin Russwin 1000 Grade 1 series mortise cylinder comes in the same 1-1/2 inch length with an A02 straight cam, and the Adams Rite 4036 is a Grade 1 five-pin mortise cylinder rated down to a 1/2 inch minimum door thickness. The Schlage 30-137 is a housing built to accept a full-size interchangeable core, so it only earns its keep where cores get swapped without pulling the lock apart - master keying changes, tenant turnover, contractor rekeys. A fixed cylinder does the same locking job with one fewer part to stock.
6) Is a BEST 1C core the same thing as a Schlage 30-137?
No, and they are not alternatives to each other - they are the two halves of a cylinder. The BEST 1C is a standard 5-pin interchangeable core, the removable figure-eight piece that carries the pinning. The Schlage 30-137 is the mortise housing that the core drops into, supplied with the Schlage L cam, compression ring, spring, and a 3/8 inch blocking ring. Ordering the housing alone leaves you without a core to key, and ordering a core alone leaves you nothing to mount it in. BEST also lists the 1CB Peaks 150 series core and the 1CDF drill-resistant patented 7-pin brass core in the same interchangeable-core family.
7) The lock is a rim device, not a mortise lock - what takes the place of the Schlage 30-137?
A rim cylinder housing, not a mortise housing. The Corbin Russwin 3070 is a 6-pin rim cylinder housing with a 1-7/8 inch tailpiece, and BEST lists the 12E series dummy rim cylinder at 1-5/32 inch diameter for openings that need the look without the function. The Schlage 30-137 is threaded mortise-style and drives a cam - the L583-255 cam, specifically - so it engages a mortise lock body. A rim device is driven by a tailpiece through the door and will not accept a cam-driven mortise housing.
8) Do I need to order a left hand or right hand version of the Schlage 30-137 housing?
Handing does not apply. The 30-137 mortise housing is non-handed, so the same part goes into a left hand or right hand L Series mortise lock. What you do specify is finish, and the cam is fixed as the Schlage L cam.
9) What finishes does the Schlage 30-137 mortise housing come in?
Eleven finishes, so the housing face can be matched to the lock trim already on the door: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial, and 643E aged bronze. The 626AM option is the one to specify for healthcare or food service openings where an antimicrobial finish is being standardized.
10) Can I use the Schlage 30-137 housing with Everest 29 or Primus XP keys?
Yes. The Schlage modular cylinder platform the 30-137 belongs to supports interchangeability between Everest 29, Primus XP, and Classic key systems, and the housing is available across all Schlage keyways. The keyway decision lives with the core you drop in, not with the housing itself.
11) Is the Schlage 30-137 a repair part or a complete lock?
It is a replacement part, not a lock. The 30-137 is the mortise cylinder housing that goes into an existing Schlage L Series mortise lock case. If the lock body itself is failing, this part will not fix it.
12) Will a Schlage 30-137 work on an aluminum storefront deadlock?
No - narrow stile storefront hardware uses its own cylinder formats. Adams Rite lists the 4024 cylinder pull with trim plate mounting and the 4025 five-pin cylinder pull with through-screws, both for the MS1847 deadlock and deadlatch, and the 4026 five-pin cylinder pull for the 5017 wood door deadlock and deadlatch. The Schlage 30-137 is a mortise housing built around the Schlage L cam for Schlage L mortise locks, which is a hollow metal or wood door application, not a glass front stile.
13) For a facility standardizing on one interchangeable core system, how does the Schlage 30-137 compare to the BEST core family?
They represent two different core standards on the same idea. The Schlage 30-137 is the FSIC mortise housing side, taking a full-size interchangeable core and driving the Schlage L cam for Schlage L mortise locks. BEST covers the core side with the 1C standard 5-pin core, the 1CB Peaks 150 series core, and the 1CDF drill-resistant patented 7-pin brass 150 series core. Standardizing means picking one core format facility-wide and then buying housings in each body style - mortise, rim, key-in-lever - that accept it, so the decision is made at the core, and the housing follows.
14) Is the Schlage 30-137 mortise housing durable enough for a high traffic commercial door?
The housing is stainless steel and specified as commercial, which is what you want on an entry that cycles all day. It goes into Schlage L Series mortise locks, the heavy duty line for institutional and multi-family openings.
15) What does the 3/8 inch blocking ring on the Schlage 30-137 do?
The blocking ring and compression ring set how far the housing projects out of the lock face so the cylinder sits flush with the trim rather than proud of it or sunk below it. The 30-137 comes with a 3/8 inch blocking ring, a compression ring, and the spring, which is the standard stack for L Series mortise applications. Get this wrong and the core either binds or stands out past the escutcheon.
16) What cylinder replaces a Schlage 30-137 on a residential-style deadbolt or handleset?
A rim-type lazy motion cylinder, not a mortise housing. Medeco lists the 1075127 5-pin rim type lazy motion single cylinder for handlesets and deadbolts, the 1012040 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts, the 1065244 5-pin rim lazy motion cylinder with Emtek tailpiece, and the 1065140 5-pin retrofit cylinder for Arrow JL interconnected locks and Emtek handleset and deadbolt outside cylinders; Emtek also lists the CY4 cylinder. The Schlage 30-137 is a commercial mortise housing for Schlage L mortise locks and does not drive a deadbolt tailpiece.
