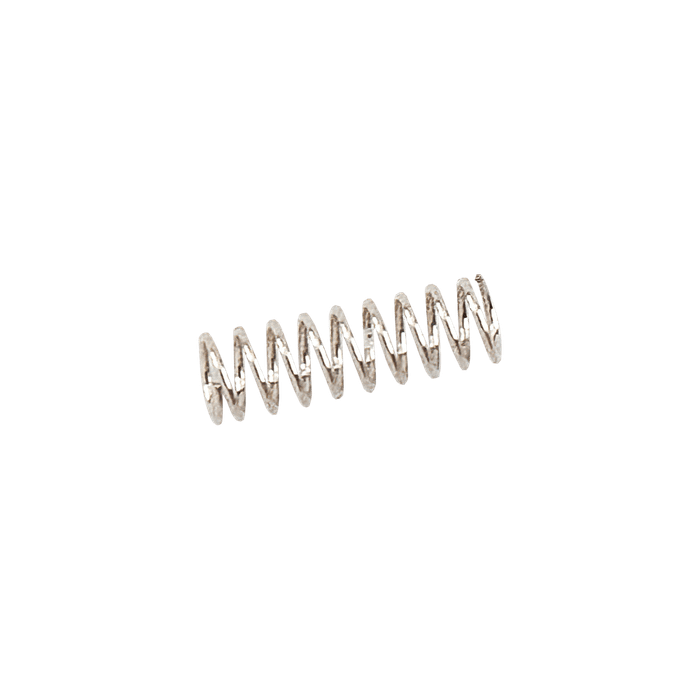

Schlage C504-116 Everest and Everest 29 SFIC Check Spring Pin Replacement Part

Schlage C504-116 Everest and Everest 29 SFIC Check Spring Pin Replacement Part

(No reviews yet) Write a Review

Model: C504-116

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage C504-116 Everest and Everest 29 SFIC Check Spring Pin Replacement Part

The Schlage C504-116 is a genuine OEM Check Spring Pin engineered specifically for use with Schlage Everest and Everest 29 Small Format Interchangeable Core (SFIC) cylinder systems. Designed as a precision replacement component for commercial-grade mechanical lock cylinders, this spring pin ensures proper tumbler engagement and smooth, reliable key operation in demanding institutional and commercial environments. As an authentic Schlage part, it maintains the performance standards expected from the Everest and Everest 29 SFIC platform.

Key Features

  • Genuine Schlage OEM Component: Authentic factory replacement part manufactured to Schlage's precise specifications for consistent fit and function.
  • SFIC System Compatibility: Designed exclusively for Schlage Everest and Everest 29 Small Format Interchangeable Core (SFIC) cylinders, ensuring correct integration without modification.
  • Check Spring Pin Function: Provides essential spring tension for proper pin tumbler alignment and reliable key operation within the cylinder core.
  • Commercial-Grade Quality: Manufactured to the performance standards required for high-use commercial and institutional lock cylinder applications.
  • Direct Replacement: Drop-in replacement that restores cylinder function, minimizing downtime during servicing or cylinder rebuilding.
  • Precision Manufacturing: Tight dimensional tolerances ensure proper seating within the cylinder housing for dependable day-to-day operation.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Rings, Spindles and Springs
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: C504-116
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Building Lock Cylinder Maintenance
  • Educational Facility Master Key System Servicing
  • Healthcare Institution SFIC Cylinder Rebuilding
  • Government and Municipal Building Lock Maintenance
  • Institutional Property Management Lock Servicing
  • Industrial and Warehouse Facility Hardware Maintenance
  • Multi-Tenant Commercial Property Lock Cylinder Repair

Why Schlage C504?

Schlage parts like the C504-116 are engineered to exact factory tolerances, ensuring that Everest and Everest 29 SFIC cylinder systems continue to perform as designed after servicing. Using genuine Schlage replacement components preserves the integrity of the cylinder assembly and the security of the master key system, making this the trusted choice for locksmiths and facility maintenance professionals working with commercial Schlage installations.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Rings, Spindles and Springs
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
C504-116
Features:
Schlage Parts
Package Quantity:
100

Schlage C504-116 – Frequently Asked Questions

1) Which Schlage cylinders does the C504-116 check spring pin work with?
The C504-116 check spring pin is made for Schlage Everest and Everest 29 Small Format Interchangeable Core (SFIC) cylinders. It is a genuine Schlage part that drops into those cores without modification. It is not intended for conventional Schlage C keyway cylinders or large format cores.
2) How many check spring pins come in a pack of Schlage C504-116?
They ship 100 to a package. That is a bench quantity aimed at a locksmith or maintenance shop rebuilding or re-pinning Everest and Everest 29 SFIC cores in volume, not a one-off repair part.
3) Can a Corbin Russwin swivel spindle pin be used in place of the Schlage C504-116 check spring pin?
No. The Schlage C504-116 is a check spring pin that sits inside Everest and Everest 29 Small Format Interchangeable Core cylinders, providing spring tension for pin tumbler alignment and key operation. The Corbin Russwin 499F838 is a swivel spindle pin with set screw, a knob and lever spindle retention part for doors 1-3/4 inches thick. They serve different assemblies entirely: one is a cylinder internal, the other is a trim and spindle fastener. Order the C504-116 when you are rebuilding or repinning a Schlage SFIC core.
4) What does the check spring pin actually do inside an SFIC core?
It supplies the spring tension that keeps the pin tumbler stack seated and returning properly, so the key turns smoothly and the core relocks. If a core is sticking, keying erratically, or a pin stack is not returning after a key pull, a failed or fatigued check spring pin is one of the parts you replace during a rebuild.
5) Can I use an aftermarket spring instead of the genuine Schlage C504-116?
Stick with the Schlage part if you are servicing an Everest or Everest 29 SFIC core. The C504-116 is the factory component built to Schlage's tolerances so it seats correctly in the core housing; substituting a spring with different tension or length is how a re-pinned master keyed core ends up with a key that drags or a core that will not relock in the housing.
6) Do I need anything else to rebuild a Schlage Everest SFIC core besides the C504-116?
The C504-116 covers only the check spring pin. A full Everest or Everest 29 SFIC rebuild also needs the bottom, master, and top pins in the depths your keying calls for, plus the control and operating key cuts to match your system. Order the spring pins alongside the pin kit for the same Everest platform so the stack heights stay correct.
7) Is the Schlage C504-116 spring pin rated for commercial use or is it a residential part?
Commercial. Schlage classes the C504-116 as a commercial mechanical lock component, which matches where SFIC master key systems actually live: offices, schools, hospitals, and government buildings on master keyed hardware.
