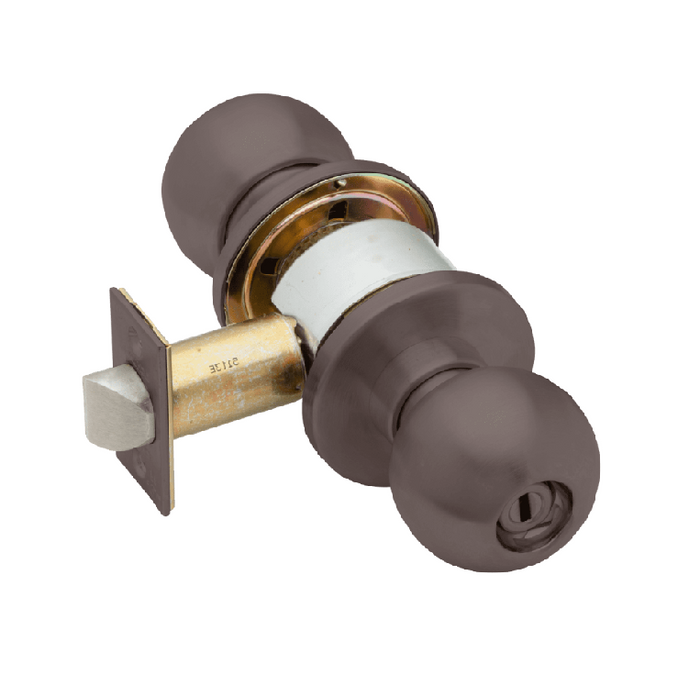

Schlage D40S - Grade 2 Privacy Cylindrical Lock Set, Orbit Knob

Schlage D40S - Grade 2 Privacy Cylindrical Lock Set, Orbit Knob

(No reviews yet) Write a Review

Model: D40S ORB 613
Selected Finish is
Selected Knob Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$840.00
$542.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Available while supplies last (No returns allowed)

Schlage D40S ORB Privacy Lock - ANSI F76 - Orbit Style

Push-button locking. Can be opened from outside with small screwdriver. Turning inside knob or closing door releases button. Inside knob is always free for immediate egress.

Knob Styles: Orbit (ORB)

Finishes: 605 - Bright Brass, 613 - Oil Rubbed Bronze, 626 - Satin Chrome, 630 - Satin Stainless Steel, 612 - Satin Bronze


Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. (Formerly FF-H-106C Series 161.) UL Listed.

Door Range: Knob and decorative designs: 1 3/8" - 2" (35 mm - 51 mm) standard.

Handing: Keyed functions of knob designs are field reversible.

Backset: 2" (70 mm) standard. 2 3/8" (60 mm) and 3" (95 mm) backset latches available. 5" (127 mm) backset link available.

Latches & Strikes
Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Latches: 1 1/8"x 2" (29 mm x 57 mm)," (13 mm) throw standard, a" (19mm) throw, fire door latch is available.

Strikes: ANSI 1" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) lip standard. Optional 1 3/8" (35 mm) lip available. Optional square corner T-strike 1 1/8" x 2" (30 mm x 70 mm) with 1 1/8" - 1" (29 mm - 34 mm) lip available.

Manufacturer Resources

Product Specs

Subcategory:
Cylindrical Knob Locks
Series:
D Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Handle Type:
Knob
Keyed Function:
Non-Keyed
Warranty:
10 Year
Standard Latch:
Spring Latch (Unguarded)
Standard Strike:
1-1/4" x 4-7/8", ASA
ANSI/BHMA:
F76
Product Group:
Mechanical Locks
Product Subgroup:
Clearance Center
Product Type:
Knobsets
Keyed:
No
Electronic:
No
Commercial/Residential:
Commercial
Function Description:
Both levers always unlocked. Inside lever is always free for immediate egress. Also available with Request to Exit (RX) function.
Lock Function:
Privacy/Bed/Bath
Lock Type:
Cylindrical
Product Attribute:
Cylindrical Locks
Segment:
Door Hardware
Product Model:
D40
Product Function:
Privacy/Bed/Bath
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage D40S ORB 613 – Frequently Asked Questions

1) What backset does the Schlage D40 privacy lock use, and will it drop into an existing bore?
The D40 is specified with a 2-3/4 inch backset, which is the standard commercial backset. If the door you are retrofitting was bored at 2-3/8 inches, it will not line up, and the D Series does offer 2-3/8 inch and 3 inch backset latches, plus a 5 inch backset link for wide-stile applications. Measure from the door edge to the center of the bore before you order.
2) How does a Schlage D40S bed and bath privacy knob unlock in an emergency?
Push-button locking on the inside knob. From the corridor side it can be released with a small screwdriver through the outside knob, which is how staff or a property manager gets into a bathroom when someone is in trouble. The button also releases when the inside knob is turned or the door is closed, and the inside knob is always free, so nobody is ever locked in.
3) What strike comes with the Schlage D40S, and will it match the ASA prep already cut in my frame?
A 1-1/4 inch by 4-7/8 inch ASA strike is the standard, so it drops into a frame already prepped for a standard ANSI strike with no filing. The D Series also offers an optional 1-3/8 inch lip and a square corner T-strike measuring 1-1/8 by 2 inches for frames that are not ASA prepped. Latch faceplates and strikes are adjustable brass or bronze, furnished in a finish that matches the lock trim.
4) Is the Schlage D40S rated for commercial traffic or is it a residential knob?
Commercial. The D40 is a heavy duty Grade 1 cylindrical lock carrying the ANSI F76 privacy function designation, and the D Series is UL Listed. That is a different class of hardware from a builder-grade privacy knob, and it is what an institutional or MRO buyer standardizing restroom and dorm doors is normally after.
5) Can I key the Schlage D40S, or lock a closet door with it?
No key. The D40 privacy function is non-keyed, and it is meant for bedroom and bathroom doors where the occupant locks from inside. If you need a keyed knob on the same doors, the Corbin Russwin CK4851 is a keyed entrance/office cylindrical knob covering 1-3/8 to 2 inch doors, and the Sargent 8XG04 is a Grade 1 heavy duty storeroom knob on a 2-3/4 inch backset. For a closet or hall door that needs no lock at all, the Corbin Russwin CK4310 is a Grade 1 non-keyed passage knob over the same 1-3/8 to 2 inch range.
6) What should I use instead of the D40S on a hall or closet door that does not need to lock?
A privacy knob like the Schlage D40S has a push-button locking function, so on a hall or closet door you want a passage set instead. The Falcon X101 is a heavy duty Grade 1 cylindrical passage knobset, fire rated, for doors 1-3/8 inch to 2-1/4 inch. The Corbin Russwin CK4310 is a Grade 1 passage/closet cylindrical lock with a Global knob for doors 1-3/8 inch to 2 inch. Both are latch-only with no locking button.
7) Do I have to specify handing when ordering a Schlage D40 knob set?
No. The D40 privacy knob is non-handed, so one part works on a left or right hand door with no field reversing step. That is what makes it easy to stock one box for a whole building.
8) What latch comes standard on the Schlage D40 knob lock, and can I use it on a fire rated door?
A spring latch with an unguarded (plain) latchbolt is the standard on the D40, with a 1-1/8 by 2 inch faceplate. The D Series also lists a fire door latch as an option, so if the opening is a rated door you need to order that latch rather than the standard one.
9) I need a privacy knob but not Grade 1 heavy duty. What else can I use on a bathroom door?
For lighter traffic there are lower-grade privacy knobs. The Dexter C2000 Series privacy ball knob is Grade 2 and fits 1-3/8 to 1-3/4 inch doors, and the Pamex FTF Baron and Cal-Royal BER20 are Grade 3 privacy knobs over the same thickness range. The Schlage D40 is the heavy duty Grade 1 option of the group, so it is the one to keep on high-traffic restrooms and pick a lighter grade for an apartment interior door.
10) Will a dummy knob work in place of a D40S privacy knob?
No. A dummy knob such as the BEST 6K Series single dummy trim or the Cal-Royal BA40 dummy knob cylindrical lock is surface trim with no latch and no push-button, so it will not close or secure a bathroom door. The Schlage D40S is a cylindrical privacy lock with a spring latch and an ASA strike. Dummy trim is for an inactive leaf or a door held by a ball catch.
11) What privacy knob works on a thicker door than a standard 1-3/4 inch leaf?
The Deltana 6112 St. Thomas privacy knob is rated for doors 1-3/8 inch to 2 inch. Among passage-function knobs for thicker leaves, the Falcon X101 covers 1-3/8 inch to 2-1/4 inch and the Corbin Russwin CK4310 covers 1-3/8 inch to 2 inch. Grade 2 knob sets such as the Dexter C2000 privacy and the Corbin Russwin CK4410 stop at 1-3/4 inch.
12) What finishes does the Schlage D40S Orbit knob come in?
Three finishes are orderable in the Orbit knob design: 605 bright brass, 612 satin bronze, and 613 oil rubbed bronze. If you are matching existing doors in a building, 613 oil rubbed bronze is the dark bronze most commonly already hanging.
13) Is the Schlage D40 an electronic or access control lock?
Purely mechanical. There are no electrified options on the D40 privacy knob, no wiring and no power supply to plan for. If the opening needs monitoring, a Request to Exit function is offered on the D Series, but the privacy knob itself is a standalone push-button lock.
