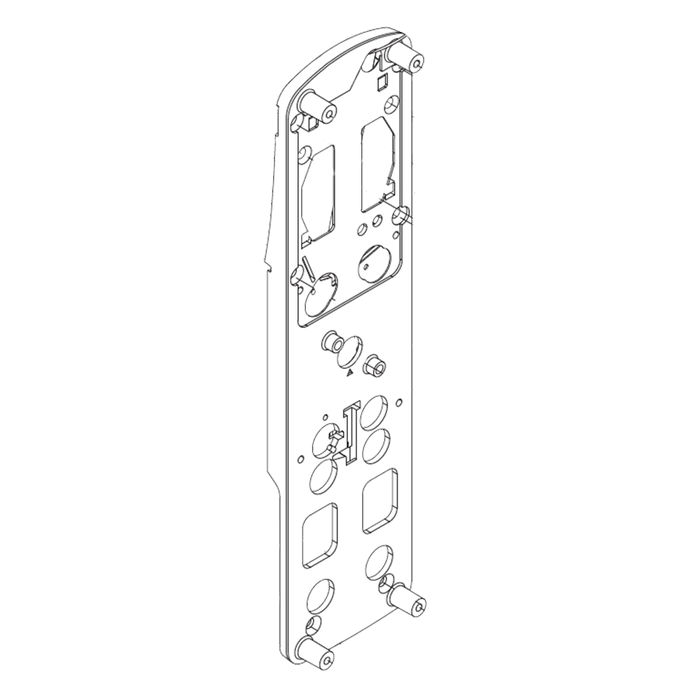

Schlage Electronics 47260739-JDCO7 AD Series Exterior Baseplate Sub-Assembly for Exit Trim with FSIC Corbin 7-Pin Prep

Schlage Electronics 47260739-JDCO7 AD Series Exterior Baseplate Sub-Assembly for Exit Trim with FSIC Corbin 7-Pin Prep

(No reviews yet) Write a Review

Model: 47260739-JDCO7

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,305.00
$1,256.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Electronics 47260739-JDCO7 AD Series Exterior Baseplate Sub-Assembly for Exit Trim with FSIC Corbin 7-Pin Prep

The Schlage Electronics 47260739-JDCO7 is an AD Series Exterior Baseplate Sub-Assembly engineered specifically for exit trim applications. Designed to accommodate a Full-Size Interchangeable Core (FSIC) with a Corbin 7-Pin cylinder prep, this commercial-grade installation accessory ensures precise, reliable integration with compatible AD and CO Series door hardware. Purpose-built for demanding commercial environments, this sub-assembly provides a secure and accurate foundation for exit trim configurations requiring FSIC Corbin cylinder compatibility.

Key Features

  • FSIC Corbin 7-Pin Cylinder Prep: Specifically configured for Full-Size Interchangeable Core with Corbin 7-Pin preparation, enabling seamless cylinder integration for exit trim applications.
  • AD and CO Series Compatibility: Engineered for use with Schlage Electronics AD and CO Series hardware, providing reliable interoperability within these product families.
  • Exterior Baseplate Design: Sub-assembly functions as an exterior baseplate, delivering a precise mounting foundation for exit trim configurations in commercial door applications.
  • Commercial-Grade Construction: Rated for commercial use, this installation accessory is built to withstand the demands of high-traffic facilities and professional door hardware systems.
  • Purpose-Built Sub-Assembly: Designed as an installation accessory within the AD Series parts and accessories ecosystem, ensuring proper fitment and function when replacing or upgrading exit trim baseplates.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Electrical Accessories
  • Parts and Accessories Type: Installation Accessories
  • Commercial/Residential: Commercial
  • Product Model: 47260739-JDCO7
  • Features: Schlage Electronics AD and CO Series Parts

Typical Applications

  • Commercial Office Buildings with AD Series Exit Trim Hardware
  • Educational Facilities Requiring FSIC Corbin Cylinder Integration
  • Healthcare Institutions Utilizing Schlage Electronics AD or CO Series Systems
  • Government and Municipal Buildings with Interchangeable Core Keying Systems
  • Retail Establishments Requiring Exit Trim Baseplate Replacement or Upgrade
  • Industrial and Warehouse Facilities with Commercial-Grade Door Hardware
  • Multi-Tenant Commercial Properties Maintaining AD Series Access Control Systems

Why Schlage Electronics AD Series?

Schlage Electronics AD and CO Series components are engineered to exacting commercial standards, ensuring consistent fitment and dependable performance across a broad range of exit trim configurations. The 47260739-JDCO7 sub-assembly reflects that commitment to precision, providing a reliable baseplate solution specifically prepared for FSIC Corbin 7-Pin cylinder applications in demanding commercial environments.

Manufacturer Resources

AD Series Exit Trim Data Sheet

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Electrical Accessories
Parts and Accessories Type:
Installation Accessories
Commercial/Residential:
Commercial
Product Model:
47260739-JDCO7
Features:
Schlage Electronics AD and CO Series Parts

Schlage Electronics 47260739-JDCO7 – Frequently Asked Questions

1) What exactly is the Schlage 47260739-JDCO7 part, and is it a complete exit trim?
It's a sub-assembly, not a finished trim. The 47260739-JDCO7 is the exterior baseplate that mounts to the outside face of the door and gives AD Series exit trim its mounting foundation. You still need the exit trim itself and the cylinder core. Order it when you're replacing or upgrading the baseplate on an existing AD Series exit trim installation.
2) Will this Schlage baseplate take a Corbin Russwin interchangeable core?
Yes, and that is the whole point of this version. The 47260739-JDCO7 is prepped for a Full-Size Interchangeable Core with a Corbin 7-pin cylinder. If your facility keys on Corbin Russwin FSIC, this baseplate drops into that keying system. If you're keyed on Schlage FSIC or a small-format core, this is the wrong prep and you need a different baseplate variant.
3) My AD Series exit trim baseplate is damaged. Can I replace just the baseplate instead of the whole trim?
Yes. That's what this sub-assembly is for. The 47260739-JDCO7 is sold as an installation accessory so you can replace or upgrade the exterior baseplate on an AD Series exit trim without swapping the complete trim or the exit device. Match the cylinder prep: this one is FSIC Corbin 7-pin.
4) Does the 47260739-JDCO7 baseplate work with both AD Series and CO Series Schlage Electronics hardware?
It's built for Schlage Electronics AD and CO Series parts, so it integrates with exit trim in either family. What it does not do is adapt other manufacturers' exit devices or older Schlage mechanical trim, so confirm the trim you're mounting is an AD or CO Series exit trim before ordering.
5) Do I need to order a cylinder core separately with this Schlage exterior baseplate?
Yes. The baseplate is prepped to accept a Full-Size Interchangeable Core with Corbin 7-pin preparation, but the core itself is a separate line item. Facilities standardizing on an interchangeable core system usually key the cores in-house, which is why the prep and the core are ordered apart.
6) Is this baseplate suitable for a high-traffic commercial building, or is it a residential part?
Commercial only. The baseplate is rated for commercial use and is intended for high-traffic facilities running AD or CO Series access control, such as schools, hospitals, government buildings and multi-tenant office properties. It isn't a residential item and there's no residential-grade version of it.
