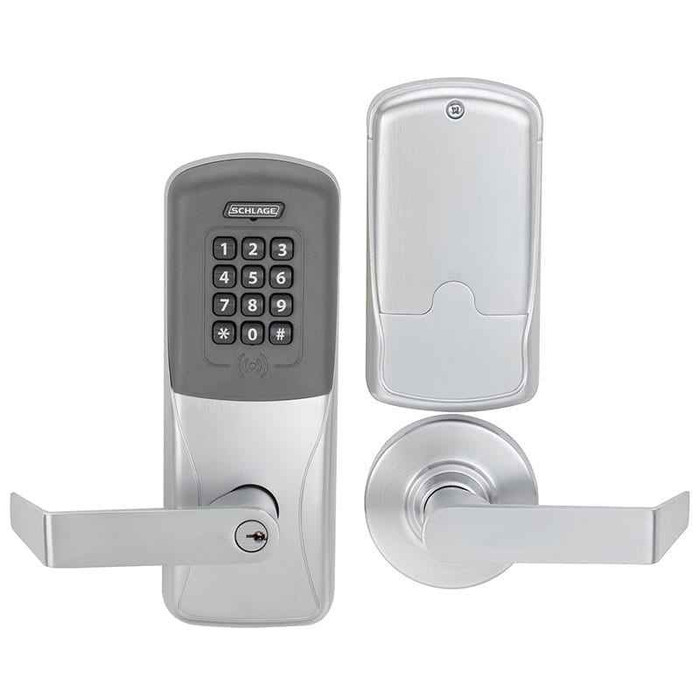

Schlage Electronics CO-200 Standalone Electronic Cylindrical Lock, Classroom/Storeroom Function, Proximity and Keypad Reader

No cylinder ships with it. The CO-200 is sold less cylinder in three of its four configurations, and you pick the prep: B takes a 7-pin SFIC core (Schlage, Falcon, or competitive OEM), J takes a Schlage 6-pin FSIC, L takes a Schlage or Falcon 6-pin key-in-lever cylinder. Only the P option comes with a Schlage standard conventional cylinder. If you keep a house keyway on an existing SFIC system, order B and drop your own core in; otherwise you are buying a cylinder or core on top of the lock.

Classroom/storeroom on the CO-200 means the outside lever stays locked and a valid credential or the key retracts the latch for entry; the inside lever always gives free egress. The lock's electronics carry ANSI/BHMA A156.25 full outdoor testing on the 70 function specifically. If you want the door to sit unlocked during class hours, the CO-200 supports holidays and time zones for scheduled auto lock and unlock. Office and privacy functions exist in the CO-200 family if you need hold-open by credential at the lever or a bathroom-style occupancy setup instead.

That is the point of the proximity and keypad version. The CO-200 works with the same credential carried at the building perimeter, and accepts 3 to 6 digit PINs, proximity cards, and magnetic stripe cards. With both a keypad and a card reader on the lock you can also require card plus PIN as dual authentication on higher security doors. It holds up to 2,000 users with an audit trail of up to 2,000 events, so you get who, where, and when on the opening without a networked head end.

Grade 1 heavy duty, and the certification list includes UL 10C along with UL 294 for access control, UL Canada, FCC Part 15, and ADA. As a cylindrical lock it meets or exceeds ANSI/BHMA A156.2, Series 4000, Grade 1. For an institutional spec that calls for a Grade 1 cylindrical electronic lock on a rated opening, those are the lines that answer it.

The closest cross-brand equivalent we carry is the TownSteel FCE-2000 Series, a Grade 1 heavy duty standalone motorized cylindrical lockset with RFID, classroom function, rated for 1-3/4 inch doors, the same thickness the CO-200 covers. If the requirement includes lockdown from inside the room, the TownSteel FCE-4000 Series is an RFID electronic intruder classroom lockset. For a keypad-only door with no cards, the TownSteel XCE-2000 Series is Grade 1 classroom function and covers 1-3/4 to 2 inch doors, which is a wider thickness range than the CO-200 handles.

The CO-200 will not work there, it is a single thickness lock at 1-3/4 inches. The Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock rated for 1-5/8 to 1-7/8 inch doors, with a digital keypad, 100 user codes, and IC/SFIC compatibility. The Alarm Lock DL5200 double-sided electronic cylindrical lock covers the same 1-5/8 to 1-7/8 inch range if you need credential control on both faces. Both are keypad rather than card, so if proximity credentials are a requirement they are not a straight swap.

Yes, with the B cylinder option. That prep takes a 7-pin SFIC core from Schlage, Falcon, or competitive OEMs, so your existing cores and master key system carry straight over and the mechanical key override stays on your system. If your building runs Schlage full size interchangeable core instead, order J for the 6-pin FSIC prep. Either way the core is not included, so pull one from stock or order it alongside.

The CO-200 is battery operated on four AA cells with up to two years of battery life and a status indicator. Where the opening is already wired, the SDC Electra 7200 Series is a solenoid controlled cylindrical lock running dual voltage 12/24VDC for doors 1-3/4 inch to 2 inch, which covers the same door thickness the CO-200 is built for. The 7200 takes its access decision from an upstream access control system; the CO-200 makes it at the lock, holding up to 2,000 users and an audit trail of up to 2,000 events with no wiring to the frame.

The closest peers are TownSteel's classroom-function electronic cylindrical locksets. The TownSteel XCE-2000 Series is a Grade 1 heavy duty electronic cylindrical lockset with keypad, classroom function, for doors 1-3/4 inch to 2 inch. The TownSteel FCE-2000 Series is a Grade 1 heavy duty standalone motorized cylindrical lockset with RFID technology in classroom function, fitting 1-3/4 inch doors. The CO-200 is Grade 1 heavy duty, classroom/storeroom function, cylindrical, standalone, battery operated on four AA cells, with a proximity and keypad reader on 1-3/4 inch doors. The XCE-2000 matches the CO-200 on keypad credentials; the FCE-2000 matches on card credentials, where the CO-200 carries both reader types in one device.

If cards are not part of the plan, a keypad-only standalone lock covers the same door. The Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock with a digital keypad, 100 user codes, and IC/SFIC compatibility, for doors 1-5/8 inch to 1-7/8 inch. The Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with keypad access and audit trail. The SDC E75 Series is a battery-powered electronic cylindrical lockset with keypad access control for 1-3/4 inch to 2-1/8 inch doors. The CO-200 carries a proximity and keypad reader and stores up to 2,000 users with a 2,000 event audit trail, so the difference is credential type and user capacity rather than the door prep.

The CO-200 is built for a 1-3/4 inch door. For thinner stock, the Alarm Lock Trilogy T2 DL2700 covers 1-5/8 inch to 1-7/8 inch, the Lockey E985 and E995 electronic keypad lever locks cover 1-3/8 inch to 1-3/4 inch, and the Kwikset 912TNL ZW500 SmartCode electronic Tustin lever covers 1-3/8 inch to 2 inch. All three are electronic. The CO-200 is Grade 1 heavy duty commercial with a classroom/storeroom function, so where an opening needs that grade and function on a thinner door, confirm the grade of the alternative before committing.

The CO-200 is classroom/storeroom function, which is locked and unlocked from the outside by credential or key. For an opening specified to secure from the inside, the TownSteel XCE-9000 Series is a Grade 1 heavy duty electronic classroom intruder cylindrical lockset with keypad for 1-3/4 inch to 2 inch doors, and the TownSteel FCE-4000 Series is a Grade 1 heavy duty RFID electronic intruder classroom cylindrical lockset for 1-3/4 inch doors. Both stay cylindrical and Grade 1, so the door prep class is the same as the CO-200.

The CO-200 ships less cylinder in three of its cylinder options: B for Schlage, Falcon and competitive OEM 7 pin SFIC, J for Schlage 6 pin FSIC, and L for Schlage and Falcon 6 pin key-in-lever, with P covering a Schlage standard conventional cylinder. If the facility keys to a different manufacturer's small format core, the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock with digital keypad and IC/SFIC compatibility, and the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with key override. The Marks USA 175RF SFIC is a Grade 2 storeroom clutched lever lockset with small format IC less core on a 2-3/4 inch backset with an ANSI strike, matching the CO-200's 2-3/4 inch backset, though it is mechanical rather than electronic.

The CO-200 stores up to 2,000 users with an audit trail of up to 2,000 events, and can be managed with PC-based Schlage Express software or configured through the Schlage Utility Software mobile app. Among the standalone peers, the Alarm Lock Trilogy T2 DL2700 carries 100 user codes and the Alarm Lock DL5200 is a double-sided electronic cylindrical lock with 100 user capacity and battery operation. The Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with audit trail and keypad access. Where a facility issues and revokes hundreds of credentials, user capacity is the spec that separates these, not the door prep, which is cylindrical on all of them.

No. The Stanley QCL150 entry lever is Grade 2 in the QCL100 Series, supplied less cylinder with a square 2-3/4 inch backset latch and an ASA strike 4-7/8 inch by 1-1/4 inch, and the Orca OCL250 is a Grade 2 medium duty entrance cylindrical lockset. The CO-200 is Grade 1, heavy duty, and carries ANSI/BHMA A156.2 Series 4000 Grade 1 along with UL 294, UL 10C and ADA. Its 2-3/4 inch backset and ANSI strike at 1-3/16 inch lip, 4-7/8 inch, mean the QCL150 shares the prep dimensions, but a drawing calling Grade 1 is not satisfied by a Grade 2 lockset.

Handing is a required selection on the CO-200, but the lock itself is field reversible, so a field reversible unit can be swapped on site without a return if the opening turns out to be the other hand. The choices are field reversible, RH, LH, RHR, and LHR. Property managers stocking spares for a mixed building are usually better off with the field reversible option so one lock covers any door.

Two ways. Manual programming at the lock covers basic user setup, or you manage it with PC-based Schlage Express software and push downloads at the door using the Schlage Utility Software mobile app on a compatible Android device with an SUS-A cable. Budget for that cable and an Android handset if you plan to run more than a handful of doors. The CO-200 shares an offline system with AD-200, CO-220, and CT5000, so it drops into an existing Schlage offline program rather than forcing a second one.

The CO-100 is keypad programmed only and stays a basic standalone lock. The CO-200 steps up: it can be manually or computer programmed, takes proximity and magnetic stripe cards as well as 3 to 6 digit PINs, holds 2,000 users, and keeps an audit trail of 2,000 events. If you need to know who opened the door and when, or you want to issue cards instead of codes, that audit and credential capability is the reason to go to the CO-200.

Wrong tool for that opening. The CO-200 configuration with proximity and keypad reader is classroom/storeroom function, built for a door that stays locked and opens on a credential. For a restroom or single occupant office you want a privacy lockset: the Cal-Royal CAL20 is a Grade 1 extra heavy duty privacy lock covering 1-3/8 to 2 inch doors, and the Alarm Lock Trilogy 4100 is a Grade 1 electronic privacy lockset with keypad for 1-5/8 to 1-7/8 inch doors if you still want electronics on it.

They are different classes of lock. The Kwikset 912TNL ZW500 SmartCode is an electronic Tustin lever with Z-Wave technology in a keyed-one-side function for doors 1-3/8 inch to 2 inch. The CO-200 is a commercial, Grade 1, heavy duty standalone cylindrical lock in classroom/storeroom function with a proximity and keypad reader, holding up to 2,000 users with audit trail. The 912TNL runs over Z-Wave as part of a home automation network; the CO-200 runs standalone with programming done at the lock. For a commercial opening carrying a Grade 1 classroom/storeroom spec, the CO-200 or the TownSteel XCE-9000 Series, a Grade 1 heavy duty electronic classroom intruder cylindrical lockset with keypad for 1-3/4 inch to 2 inch doors, is the right family to price.

The CO-200 covered here is the classroom/storeroom function. For a privacy opening, the Alarm Lock Trilogy 4100 is a Grade 1 electronic cylindrical lock with privacy function and keypad for doors 1-5/8 inch to 1-7/8 inch, and the CENTRIOS CEB100 Series is a Grade 1 smart Bluetooth cylindrical lock in privacy function. Both stay Grade 1 cylindrical, matching the CO-200's grade and lock type, and differ in the function the door prep serves.

Yes, if the opening does not need credentials or an audit trail. The Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever lockset supplied less core, and the Marks USA 195N is a Grade 1 Survivor Series passage lever lockset that is ADA compliant. The Dorma C150 is a Grade 1 heavy duty cylindrical lock in entry/office function for doors 1-3/8 inch to 2-1/4 inch. What is given up against the CO-200 is electronic access: the CO-200 stores up to 2,000 users with an audit trail of up to 2,000 events and reads both proximity credentials and 3 to 6 digit PINs, and it is ADA listed as well.

The Lockey 1600 is a heavy duty mechanical keyless knob lock with adjustable backset for doors 1-1/8 inch to 2 inch, and the Lockey 2830 is a mechanical pushbutton keyless knob lock with auto-locking passage function for the same 1-1/8 inch to 2 inch range. Both are mechanical: one code, set at the lock, with no power and no record of who came through. The CO-200 is a battery operated standalone electronic lock on four AA cells with a proximity and keypad reader, up to 2,000 users, an audit trail of up to 2,000 events, and support for holidays and time zones to auto lock and unlock on schedule. For a single service door with one shared code, the Lockey units do that job; for turnover control or per-person credentials, they do not.

Six lever designs on the CO-200: Athens, Latitude, Longitude, Rhodes, Sparta, and Tubular. Finishes are 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, and 643E aged bronze. If you are matching a building that is already on Schlage mechanical hardware, picking the same lever design and 626 satin chrome keeps the electronic door looking like the rest of the floor.
