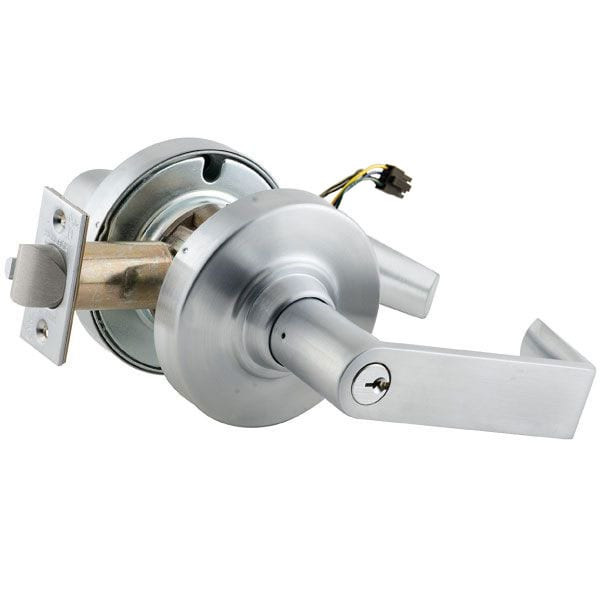

Schlage ND80EU - Storeroom Lock, Electrically Unlocked (Fail Secure) - Grade 1 Cylindrical Keyed Lever Lock

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: 13-247: 2-3/4" Backset-with 1-1/8" x 2-1/4" Square Corner Faceplate.
Strike: 10-025: 1-3/16" - Lip ANSI, No Box, 1-1/4" x 4-7/8".
Door thickness: 1-3/4".
Strike lip length: 1-3/16".
Keying (for P6, P and T cylinders): KD:Keyed different.
Keys (for P6, and P cylinders): Two nickel silver cut keys per lock.

ND80EU - STOREROOM LOCK, ELECTRICALLY UNLOCKED (FAIL SECURE)

Outside lever continuously locked until unlocked by key or electric current. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

Schlage ND SERIES OVERVIEW

The Schlage ND Series offers a full breadth of commercial lock options with a suited combination of mechanical, electrified and electronic options. This overview covers common characteristics for the mechanical and electrified lock information.

Beyond grade 1 performance is the hallmark of the mechanical and electrified locks. ND Series locks are tested to withstand 3,100 in-lb. of abusive lever torque - more than 2 1/2 times the Grade 1 standard requirement. Offset lever pull testing up to 1,600 lbs. assures you of the lock's superb resistance against pry bar attacks. More than strong, ND Series is built to last and shows nearly zero droop or wobble after 16 million cycles.

All ND Series locks including electronic and ligature-resistant trim use the common cylindrical ANSI 161 door preparation making them easily interchangeable. They are ideal for all new construction and retrofit applications.

ND Series Mechanical Lock

The ND mechanical lock, along with being Schlage’s best selling mechanical lock, is the foundation for both the wired electrified and NDE wireless electronic lock. Not only did Schlage invent the cylindrical lock, but they continue to make it better with capabilities such as:

• Unparalleled strength - the lock prevents access even when subjected to torque loads up to 3,100 in-lbs (2.6x BHMA1), withstands pry bar attacks of 1,600 lbs (8x BHMA requirements1), and withstands 100 hammer blows (20x BHMA requirements1, 2)
• Exceptional durability - cycle tested to over 16M cycles (16x BHMA requirements1) with near zero droop or wobble - without the use of set screws or O-rings
• Improved feel - improved strength and durability are more than numbers, you can actually feel it in the lock
• Improved installation - installation is even easier than before (and withoutany set screws or O-rings)

FEATURES & BENEFITS

Security

• Significantly exceeds ANSI/BHMA Grade 1 requirements
• No access with minimum 3,100 in-lb. abusive lever torque, the equivalent of over 690 lbs. applied to the end of a 4-1/2" lever, 2.6 times over the BHMA requirement*
• No access with minimum 1,600 lbs. offset lever pull for protection against pry bar attacks, 8 times over the BHMA requirement*
• 5 points of engagement provide nearly zero droop and wobble after 16 million cycles, 16 times over the BHMA requirement*, without the use of set screws or o-rings
• High security locking when used with Primus XP UL 437 listed cylinders


Function availability and convenience

• 24 mechanical/4 electrified functions in the ND Series (custom functions available upon request)
• Multiple key systems available: open, patented and restricted
• Four electrified functions auto-detect 12/24V DC operation and, with maximum current draws of 0.4 amps and 0.1 amps holding current eliminate heated levers
• Indicator roses for classroom applications
• Three spring cage sets support all Schlage plus eight competitive cylinder formats


Aesthetics

• Nine lever and four rose designs
• Ten available finishes
• Perfectly suited to Schlage ALX Series grade 2 locks
• Suites with Von Duprin exit devices and other Schlage products


Options

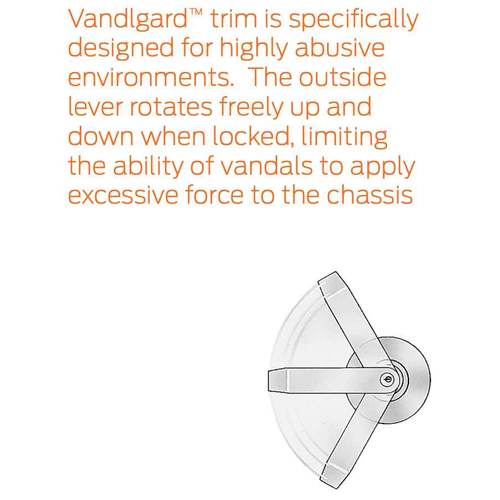

• Vandlgard™ models have a lever that freely rotates up and down when locked to protect the chassis from excessive force on the lever to prevent vandlism.

_{*Beyond Grade 1 performance for ND Series locks with Schlage cylinders only (Conventional, FSIC & SFIC). Performance with non-Schlage cylinders will exceed BHMA grade 1 requirements, but the product performance may be less than that of Schlage cylinders.}

AVAILABLE ND SERIES FUNCTIONS

Other ND Series models can be found in the ND Series section and in-depth function description are available in the ND Series catalog linked below, or in the image carousel above.

Non-keyed functions

• ND10 ANSI F75 Passage Lock
• ND12 ANSI F89 Exit Lock (mechanical and electrified)
• ND40 ANSI F76 Privacy Lock
• Plus four additional functions


Keyed functions

• ND50 ANSI F82 Entrance/Office Lock
• ND53 ANSI F109 Entrance Lock
• ND70 ANSI F84 Classroom Lock
• ND80 ANSI F86 Storeroom Lock (mechanical and electrified)
• Plus six additional functions


Special functions

• ND30 ANSI F77 Patio Lock
• ND72 ANSI F80 Communicating Lock
• Plus five additional functions

CERTIFICATIONS & TESTING

To see all specifications and certifications, review the ND Series catalog in the links below.

Certifications

• Tested and certified under ANSI/BHMA A156.2 Series 4000, Grade 1
• UL/cUL listed: All locks 3-hour, A label fire door 4' x 10' single door and 8' x8' pair doors; 90-minute 8' x 10' pair doors with 3/4" latch option
• Meets ADA requirements
• Meets BAA (Buy American Act)
• ANSI/BHMA Certifications: All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices.
• ICC Certifications: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities.
• UL/cUL Certifications: All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option.
• CA Fire Code Certifications: All levers with a return to door of 1⁄2" (64 mm) or less comply (Rhodes, Sparta, Tubular, Omega, Longitude, Boardwalk).
• FL Building Code Certifications: Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes.
• Federal Certifications: Meets FF-H-106C Series 161.
• Other Certifications: UL294, CSA C22.2 No. 205-M1983, FCC Part 15, IC RSS-210, RoHS.


Testing

• ANSI Cycles Tested: 3 million cycles (3x ANSI grade requirement).
• Abusive locked lever torque: Minimum 3,100 inch-pounds without gaining access.
• Offset lever pull: Mminimum 1,600 foot pounds without gaining access.
• Vertical lever impact: Minimum 100 impacts without gaining access.
• Cycle life: Minimum 16 million cycles; 1) with no visible lever sag; 2) without the use of performance aids (i.e. set screws, spacers, etc.).
