Schlage NDEBBD Mobile Enabled ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,410.00
$1,071.91

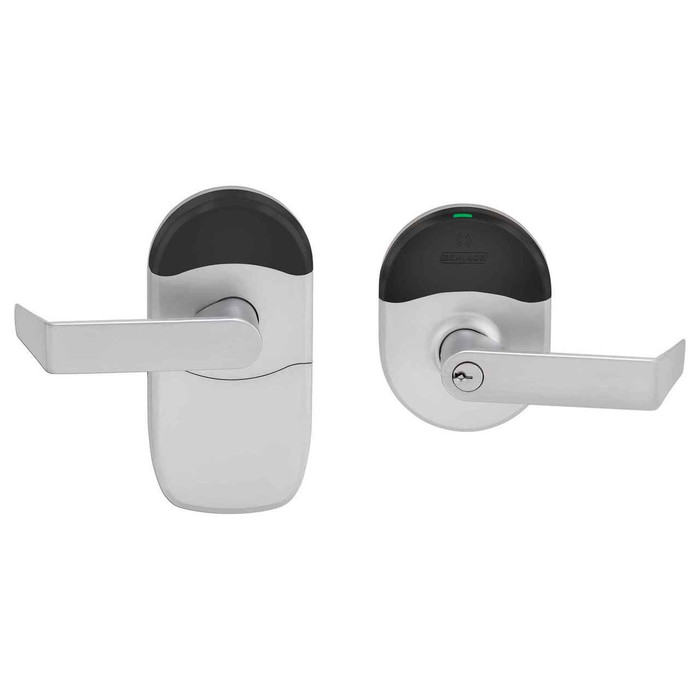

Schlage NDEBBD Mobile Enabled Cylindrical With Vandlgard, Interior Pushbutton with Indicator, SFIC Construction Core

Schlage NDEBBD Mobile Enabled Cylindrical With Vandlgard, Interior Pushbutton with Indicator, SFIC Construction Core

(No reviews yet) Write a Review

Model: NDEBBDC-RHO-626
$1,410.00
$1,071.91
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,410.00
$1,071.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage NDEB Mobile Enabled Cylindrical With Vandlgard, Interior Pushbutton with Indicator, SFIC Construction Core

The Schlage NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings. Schlage NDE locks can function in offline or No-Tour mode or as a networked lock with either periodic check-ins or real-time management.

The open architecture design allows the NDE to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS Alliance program. This enables customers to choose the system that best fits their requirements and gives them the ability to move to a fully networked solution at any time.

The Schlage NDEB locks are compatible with a wide range of mobile, smart and proximity credential technologies and can operate in storeroom, office, privacy, or apartment functions using its interior push button with indication.

NDE works within existing network architecture and can exist in the same EAC system as other wireless locks including Schlage Control™, AD-400 and LE.



ND Series Mechanical Lock

Users: Up to 5,000 1
Audits: Up to 2,000 2
Credential verification time: Smart and proximity: ≤ 1 second;Mobile: mobile device dependent
Visual communications: LED (red, amber, green)
Audible communications: Audible indicator (field configurable)
Communication standards:

  • 2.4 GHz Wi-Fi® (IEEE 802.11b/g/n)
  • WPA2, WPA, WEP, 802.1x
  • Bluetooth® low energy (version 4.2)
  • Transport Layer Security (TLS) version 1.2
  • Advanced Encryption Standard (AES), 256-bit

Gateway communication range: Up to 30' in typical building environments. A detailed site survey is recommended using the ENGAGE Test Kit (TKE). Reference ENGAGE™ Gateway
Data Sheet for additional detail.
Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE; Gateway (requires PACS provider system)
Data rate: NDE80 = 24mbps, NDEB = 54mbps
Connectivity options:

  • Mobile device (send updates at the lock)
  • Wi-Fi access point (automatic daily updates7)
  • No-Tour8
  • ENGAGE Gateway (real-time communication)- RS-485 to ACP or IP to host

Battery life: Uses 4 AA batteries;Up to 2 years
Operating temperature Exterior: -31° to 151°F (-35° to 66°C); Interior: 32° to 120°F (0° to 49°C) (battery)
Operating humidity: 0 - 100% non-condensing
Certifications: ANSI/BHMA A156.25-2013 (Indoor/Outdoor), ANSI/BHMA A156.2-2011, Series
4000, Grade 1, UL 294, UL 10C, CSA C22.2 No. 205-M1983, FCC Part 15, IC
RSS-210, ADA, ICC ANSI A117.1

Manufacturer Resources

Product Specs

Series:
ENGAGE Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Handle Type:
Lever
Keyed Function:
Single Cylinder
Keys Included:
2
Features:
Electronics Bring More Visibility and Control to the Opening; Ability to Read Bluetooth and NFC Mobile Credentials, Along with Smart and Proximity; Updates can be Made Immediately
Standard Strike:
47267101: ANSI w/DPS, 1-1/4" x 4-7/8", 1-3/16" Lip
Subcategory:
Electronic Cylindrical Locks
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
ANSI/BHMA:
ANSI/BHMA Certified A156.25-2013, A156.2-2011, Series 4000, UL 294, UL 10C
Electronic:
Yes
Wireless Communication:
Yes
Connection Type:
Wireless
Segment:
Door Hardware
Product Attribute:
Electronic Locks
Tags:
ndeb schlage
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-5/8" to 2"
Product Category:
Electronic Locks
Product Substrate:
Zinc and Steel
Department:
Door Hardware

Schlage Electronics NDEBBDC-RHO-626 – Frequently Asked Questions

1) Will the Schlage NDEB wireless lock fit a 1-3/4 inch door?
Yes. The NDEB cylindrical lock covers doors from 1-5/8 to 2 inches thick, so a standard 1-3/4 inch commercial door sits in the middle of the range. Doors thinner than 1-5/8 inches, like the 1-3/8 inch interior doors common in older buildings, are outside what this lock will mount on.
2) Do I have to specify handing when I order a Schlage NDEB electronic lock?
No handing to specify. The NDEB is non-handed, so one part number works on a left or right hand door, inswing or outswing. That is what makes it easy to stock a few spares across a building without tracking which opening each one came off.
3) What strike comes with the Schlage NDEB lock, and will it drop into an existing ANSI strike prep?
The NDEB ships with strike 47267101, an ANSI strike with a door position switch, 1-1/4 by 4-7/8 inches with a 1-3/16 inch lip. That is the standard ANSI/ASA frame cutout, so an opening already prepped for a 4-7/8 by 1-1/4 strike takes it without reworking the frame. The door position switch in the strike is what lets the lock report door open/closed status back to the access control system, so do not substitute a plain strike if you want that monitoring.
4) Can the Schlage NDEB work standalone, or does it need to be on a network?
Either way. The NDE lock runs offline or in No-Tour mode, or as a networked lock with periodic check-ins or real-time management through an ENGAGE Gateway. You can start it standalone with updates pushed at the door from a mobile device, and move to fully networked later without changing the lock. Real-time gateway communication runs RS-485 to an access control panel or IP to a host.
5) What credentials does the Schlage NDEB read, and will it work with the prox cards we already issue?
The NDEB reads Bluetooth and NFC mobile credentials plus smart and proximity cards, so an existing prox or smart card population keeps working while you phase in phone credentials. Smart and prox verify in a second or less; mobile depends on the phone. The lock also gives red, amber and green LED feedback plus a field-configurable audible indicator at the door.
6) Is the Schlage NDEB rated for a fire door?
The NDEB carries UL 10C along with ANSI/BHMA A156.25-2013 and A156.2-2011 Series 4000, Grade 1, and UL 294 for access control. UL 10C is the positive pressure fire door test standard. It also meets ADA and ICC ANSI A117.1 for accessibility, which matters on institutional openings where the lever has to be operable without tight grasping.
7) Does the SFIC construction core mean I can use my building's existing interchangeable core keyway?
The NDEBBD comes with a small format interchangeable core, supplied as a construction core with 2 keys. A construction core is meant to be pulled once the job is turned over and replaced with your permanent SFIC core, so the lock joins whatever SFIC keyway your facility already keys to. On the order you pick KD keyed different, KA keyed alike for a group of openings, or None if you are supplying your own cores.
8) Do I have to buy Allegion software to run these locks, or can they go on the access control system I already have?
Both are supported. The NDE's open architecture lets it be managed by Allegion software or integrated into a physical access control system through the PACS Alliance program. It also coexists in the same EAC system with other Schlage wireless hardware including Schlage Control, AD-400 and LE, so a building already running those does not need a second system to add NDE openings.
9) I need an electronic cylindrical lock for a thinner 1-3/8 inch door. What are my options?
The NDEB will not mount there, its range starts at 1-5/8 inches. Of the electronic cylindrical locks in the same family, the Kwikset 912TNL SmartCode Z-Wave lever covers 1-3/8 to 2 inches, and the Lockey E985 and E995 keypad lever locks cover 1-3/8 to 1-3/4 inches. Those are lighter-duty solutions than a Grade 1 wireless lock, but they physically fit the opening.
10) What is the closest equivalent to the Schlage NDEBBD if I need a Grade 1 electronic cylindrical lock from a different manufacturer?
The Schlage NDEBBD is a Grade 1 heavy duty electronic cylindrical lever lock. Among other Grade 1 electronic cylindrical locks, the TownSteel XCE-2000 Series is a Grade 1 heavy duty electronic cylindrical lockset with a keypad in a classroom function, fitting doors 1-3/4 inch to 2 inch. The Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic cylindrical lock with a digital keypad, 100 user codes and IC/SFIC compatibility, for doors 1-5/8 inch to 1-7/8 inch. The main difference is how credentials reach the lock: the NDEBBD reads Bluetooth and NFC mobile credentials along with smart and proximity cards over a wireless connection, while the XCE-2000 and DL2700 are keypad code entry.
11) My door is 1-3/4 inch but some openings in the same building are only 1-3/8 inch. Which electronic cylindrical locks cover that thinner door?
The Schlage NDEBBD fits doors 1-5/8 inch to 2 inch, so a 1-3/8 inch door falls below its range. Among electronic locksets that do reach 1-3/8 inch, the Lockey E985 and Lockey E995 electronic keypad lever locks both cover 1-3/8 inch to 1-3/4 inch, and the Kwikset 912TNL ZW500 SmartCode electronic Tustin lever covers 1-3/8 inch to 2 inch in a keyed one side function. For the thicker openings the NDEBBD, the TownSteel XCE-2000 at 1-3/4 inch to 2 inch, and the SDC E75 Series at 1-3/4 inch to 2-1/8 inch all apply.
12) I need a classroom or intruder function on a classroom door. Is the Schlage NDEBBD the right choice?
The Schlage NDEBBD operates in storeroom, office, privacy, or apartment functions using its interior pushbutton with indication. If the opening calls specifically for a classroom or classroom intruder function, the TownSteel XCE-9000 Series is an electronic classroom intruder cylindrical lockset with a keypad, Grade 1 heavy duty, for doors 1-3/4 inch to 2 inch; the TownSteel FCE-4000 Series is an RFID electronic intruder classroom cylindrical lockset, Grade 1 heavy duty on 1-3/4 inch doors; and the FCE-2000 Series is a Grade 1 standalone motorized cylindrical lockset with RFID in a classroom function on 1-3/4 inch doors.
13) The opening is wired to an access control panel. Can I substitute the NDEBBD for a hardwired electric lock?
No. The Schlage NDEBBD is a wireless lock powered by four AA batteries with a gateway communication range of up to 30 feet in typical building environments. For an opening that runs on panel power and wiring, the SDC Electra 7200 Series is a solenoid controlled cylindrical lock with dual voltage 12/24VDC for doors 1-3/4 inch to 2 inch. The 7200 takes its unlock command over the wire from the panel; the NDEBBD carries its own credential reader and communicates over 2.4 GHz Wi-Fi and Bluetooth low energy.
14) What does the interior pushbutton on the Schlage NDEB actually do?
The pushbutton with indication lets the room side lock and unlock the opening without a credential, and shows the current state on the indicator. That is how one lock covers storeroom, office, privacy or apartment function, so a conference room or a restroom-style privacy opening and a secured storeroom can use the same hardware and be configured differently.
15) What is Vandlgard on a Schlage NDEB lock and why would I want it?
Vandlgard is a clutched lever. When the lock is secure, the outside lever rotates freely instead of transferring force into the lock body, so someone yanking or hanging on the lever does not break the internals. On high-traffic and abuse-prone openings, schools, dorms, multi-family corridors, that is the difference between a service call and no service call. The lock is Grade 1 heavy duty with zinc and steel construction.
16) What batteries does the Schlage NDEB take and how often will my staff be changing them?
Four AA batteries, up to two years of life. No wiring to the door, no power transfer hinge, no transformer, which is the whole reason to use a wireless lock on interior openings instead of running power. The exterior side is rated from -31 to 151 F; the interior battery side wants 32 to 120 F, so an unconditioned space at freezing or below is where you would expect shortened battery performance.
17) How many users and audit records does the Schlage NDE lock hold?
Up to 5,000 users and up to 2,000 audit events at the lock. That is sized for a whole tenant floor or a building's worth of staff, and it is well past the 100 user codes on a standalone keypad lock like the Alarm Lock Trilogy DL2700. If your requirement is a few dozen codes on one door, a standalone keypad lock is the simpler buy; the NDE earns its place when you are managing credentials across many openings from software.
18) What is the difference between the Schlage NDEB and a standalone keypad lock like the TownSteel XCE-2000?
Different jobs. The NDEB is credential-based, mobile and card, and reports to software over Wi-Fi or an ENGAGE gateway, so access rights and audits live centrally. The TownSteel XCE-2000 is an electronic cylindrical lockset with a keypad, Grade 1 heavy duty, classroom function, for 1-3/4 to 2 inch doors, and it is programmed at the door. If you want a door code and nothing more, the keypad lock is the cheaper install. If you need to revoke a credential across 40 doors on a Tuesday afternoon, you want the networked lock.
19) Is there a hardwired electronic cylindrical lock alternative if I don't want batteries?
The SDC Electra 7200 Series is a solenoid-controlled cylindrical lock running dual voltage 12/24VDC, for 1-3/4 to 2 inch doors. That is a wired device, so it needs power to the door and it fails to a defined state on power loss rather than running down a battery. The NDEB is the opposite trade: 4 AA batteries and no wiring, but someone has to change them.
20) I already run small format interchangeable cores. Which electronic cylindrical locks take an SFIC besides the Schlage NDEBBD?
The Schlage NDEBBD ships with an SFIC construction core. Among other electronic cylindrical locks, the Alarm Lock Trilogy T2 DL2700 is IC/SFIC compatible, and the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with a key override function. On the mechanical side, the Marks USA 175RF SFIC is a Grade 2 storeroom clutched lever lockset supplied less core for a small format IC with a 2-3/4 inch backset and an ANSI strike.
21) What is the difference between the Schlage NDEBBD and the Alarm Lock Trilogy DL4100 for a restroom or privacy opening?
Both are Grade 1 cylindrical locks. The Alarm Lock Trilogy 4100 is built specifically for a privacy, bed and bath function with a keypad, fitting doors 1-5/8 inch to 1-7/8 inch. The Schlage NDEBBD can be set to a privacy function among storeroom, office, privacy, or apartment using its interior pushbutton with indicator, and fits doors 1-5/8 inch to 2 inch. The NDEBBD is also a credential reader, taking Bluetooth and NFC mobile along with smart and proximity cards.
22) Is the Dorma C853 or the Marks USA 195RAB a substitute for the Schlage NDEBBD?
They are not electronic locks. The Dorma C853 is a keyed single cylinder entry lever lockset, Grade 1, for doors 1-3/8 inch to 2-1/4 inch, and the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever lockset supplied less core. Both are key-operated only. The Schlage NDEBBD is an electronic lock that reads Bluetooth and NFC mobile credentials along with smart and proximity cards over a wireless connection. If the goal is credential-based access control, a mechanical entry lever will not deliver it.
23) For a residential-style apartment door on a Z-Wave home automation system, does the Schlage NDEBBD fit or is there a better option?
The Schlage NDEBBD is a commercial lock that communicates over 2.4 GHz Wi-Fi and Bluetooth low energy and is managed by Allegion software or integrated into physical access control systems through the PACS Alliance program. For a Z-Wave system, the Kwikset 912TNL ZW500 SmartCode electronic Tustin lever uses Z-Wave technology in a keyed one side function on doors 1-3/8 inch to 2 inch. The CENTRIOS CEB100 Series is a Grade 1 smart Bluetooth cylindrical lock in a privacy function.
24) Can I use a Grade 2 lever like the Orca OCL250 or Stanley QCL150 on the same doors as the Schlage NDEBBD?
The Schlage NDEBBD is Grade 1 heavy duty. The Orca Hardware OCL250 is a Grade 2 medium duty entrance cylindrical lockset and the Stanley Security QCL150 entry lever is Grade 2 in an entrance function with a square 2-3/4 inch backset latch and a 4-7/8 inch by 1-1/4 inch ASA strike. If the specification on the drawing calls for Grade 1 heavy duty, a Grade 2 medium duty lever does not meet it. The Cal-Royal CAL30 is Grade 1 for doors 1-3/8 inch to 2 inch in a passage function if you need a mechanical Grade 1 lever on secondary openings.
25) Which lock should I use if I want keyless entry without batteries or electronics at all?
The Schlage NDEBBD is an electronic lock running on four AA batteries. If the opening needs keyless entry with no power source, the Lockey 2830 is a mechanical pushbutton keyless knob lock with an auto-locking passage function for doors 1-1/8 inch to 2 inch, and the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset over the same 1-1/8 inch to 2 inch range. Both are pushbutton code entry with no batteries; neither gives you the audit trail or mobile credentials the NDEBBD provides.
26) The NDEBBD comes with an ANSI strike. Do the alternatives use the same strike prep?
The Schlage NDEBBD uses standard strike 47267101, an ANSI strike with door position switch, 1-1/4 inch by 4-7/8 inch with a 1-3/16 inch lip. The Stanley Security QCL150 entry lever uses an ASA strike 4-7/8 inch by 1-1/4 inch, and the Stanley QTL230E passage lever uses a 4-7/8 inch by 1-1/4 inch ANSI strike, so both share that frame cutout. The Stanley QCL200 cylindrical lock instead comes with a 118F ANSI strike at 1-1/8 inch by 2-3/4 inch, which is a different frame prep.
27) What finish does the Schlage NDEB come in?
626 satin chrome, which is the standard commercial finish and matches most existing satin chrome and brushed levers, closers and exit hardware already hanging in a commercial building. If your standard is a brass or bronze finish, this one will not match it.
28) What should I pair with the Schlage NDEBBD on the inactive leaf or a closet door in the same suite?
The Schlage NDEBBD is a keyed, credential-reading lock for the openings that need controlled access. For doors in the same suite that need no lock, the Dorma C501 single dummy trim keyless lever lockset is Grade 2 in a dummy function for doors 1-3/8 inch to 1-3/4 inch, the Orca Hardware OCL2170 is a Grade 2 half dummy lever, and the Marks USA 195N is a Grade 1 Survivor Series passage lever with an American lever that is ADA compliant. The NDEBBD itself carries ADA among its certifications.
