Schlage PM081 Grade 1 Accessib...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$854.00
$534.88

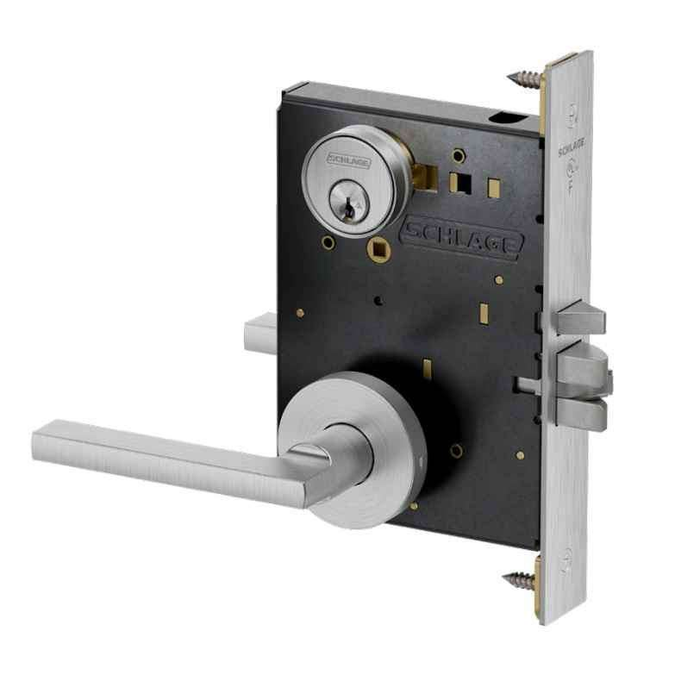

Schlage PM081 Grade 1 Accessible Storeroom with Cylinder Mortise Lock - Tubular Lever

Schlage PM081 Grade 1 Accessible Storeroom with Cylinder Mortise Lock - Tubular Lever

(No reviews yet) Write a Review

Model: PM081P TLRA 626
$854.00
$534.88
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$854.00
$534.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM081 Grade 1 Accessible Storeroom with Cylinder Mortise Lock - Tubular Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.



PM026 - Exit lock with Cylinder

  • Key cylinder only, no lever outside; lever only inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side at all times
  • Inside lever always free for immediate egress



Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
5 Year Limited
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Storeroom
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM081
Product Function:
Storeroom
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware
Keyed:
Yes

Schlage PM081P TLRA 626 – Frequently Asked Questions

1) Will the Schlage PM081 mortise lock fit a 1-3/8 inch door, or does it need a 1-3/4 inch door?
The PM081 is built around 1-3/4 inch doors as standard, with 1-3/8 inch (35 mm) as the minimum. It will also go into doors up to 2-1/2 inches thick, but over 1-3/4 inches you have to specify the door thickness and the lock's position in the door at time of order, and that is only available EE.
2) Do I have to order the Schlage PM081 in a specific hand?
No. Handing is field reversible on the PM081, so one lock covers left and right hand openings and you can set it on site. That makes it easier to carry as a stock item across a building where the doors swing both ways.
3) How does the storeroom function on the Schlage PM081 actually work day to day?
Storeroom function means the outside lever is always locked and the key retracts the latchbolt for entry; the inside lever always retracts the latch for free egress. There is no way to leave the outside unlocked, which is why it is used on mechanical rooms, supply closets, stairwell and tenant storage doors where the opening should never be left open by accident.
4) What cylinder options do I pick from when ordering the Schlage PM081, and can I use my own core?
Five cylinder choices: less SFIC (B), less FSIC (J), less conventional 6-pin cylinder (L), a conventional 6-pin cylinder keyed 5 (P), or FSIC with a construction core (T). If your building is already on an SFIC or FSIC key system, order the less-cylinder option and drop in your own cores. If you just need a working keyed lock out of the box, take the P conventional 6-pin.
5) Will a Schlage PM081 mortise lock drop into a pocket cut for a Schlage L Series?
Not as a straight swap. The PM Series case and cover hole locations differ from the L Series, so the through-bolt and trim holes will not line up even though both are mortise locks. Plan on re-prepping the door or using the PM Series template rather than assuming the L Series prep carries over.
6) What is a cross-brand equivalent to the Schlage PM081 storeroom mortise lock?
Two Grade 1 storeroom-function mortise locks line up with the PM081 from other makers. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series, supplied with an Arcadia lever. The Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option and is listed for 1-3/4 inch doors, the same door thickness the PM081 carries. All three share the storeroom function, so the opening behaves the same way: key retracts the latch from outside, inside lever always free.
7) Baldwin 6310 is called entry/storeroom - is it the same thing as the PM081?
They serve different doors. The Baldwin 6310 knob-by-knob and the 6310190RRLS lever-by-lever are entrance/storeroom mortise lock bodies on a 2-1/2 inch backset, listed for 1-3/8 inch and over doors, and the 6310190RRLS is handed right hand reverse. The Schlage PM081 is a Grade 1 commercial storeroom lock on a 2-3/4 inch backset with field reversible handing for 1-3/4 inch doors, so the mortise prep and strike location are not interchangeable between them.
8) What finishes and trim styles can I get the Schlage PM081 tubular lever lock in?
Finishes run 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome and 643E Aged Bronze. The lever is the Tubular (TLR) design, and you choose trim between an A rose, C rose, D rose or the N escutcheon. The N escutcheon measures 7-7/8 x 2-1/2 x 7/16 inches in wrought brass; the A rose is 2-1/8 inches and the C rose 2-5/8 inches.
9) Can I match Schlage PM Series mortise locks to the tubular locks on the rest of my building?
Yes. PM Series mortise locks share lever and rose styles with the Schlage PT Series tubular locks, so a corridor of bored locks and a handful of mortise openings can look identical. The PM Series is also made to suite with other Allegion products, and it runs 26 functions including three electrified plus four mortise deadbolt functions, so you can standardize a whole property on one look and one key system.
10) Is the Schlage PM081 heavy enough for a high traffic commercial opening?
It is an ANSI/BHMA Grade 1 commercial mortise lock, the top category for durability and strength. The case is cold rolled steel with corrosion resistant zinc dichromate plating, measuring 4-7/16 x 6-1/16 x 1 inch, and the latch is stainless steel. Grade 1 is what most institutional and multifamily specs call for on corridor, stairwell and service doors.
11) I need a classroom or privacy function instead of storeroom in a mortise lock. What should I look at?
The PM081 is storeroom only, outside lever always locked. For classroom function, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset for 1-3/4 inch doors, and Cal-Royal's NM8070 is a Grade 1 classroom mortise lockset. For a bed/bath privacy opening, Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt, and the Hager 3840S is a Grade 1 privacy mortise lock on a 2-3/4 inch backset. The PM Series itself also runs 26 functions, so a different PM model may cover it on the same trim.
12) What is the non-keyed alternative if the door does not need to lock?
The Schlage PM081 is a keyed storeroom lock, so for a passage or office opening you would step to a different model. The Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating, matching the PM081's field reversible handing. Hager's 3800 Series covers the same ground with the 3810S passage lock with rose trim and the 3810E with escutcheon, both 2-3/4 inch backset like the PM081, and the 3850E office function lock is non-keyed with lever and escutcheon.
13) Is there an electronic version of a Grade 1 storeroom mortise lock, or do I stay mechanical?
The Schlage PM081 is a mechanical, non-electronic keyed lock. If credential-based access is wanted on a mortise prep, the Command Access ML190 Series motorized mortise lock is a heavy-duty storeroom function lock with field selectable EL/EU operation on 24VDC, and the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. Those require power or battery and a credential program; the PM081 runs on keys alone.
14) Will a BEST 45H mortise lock body work as a substitute for the PM081?
Not directly. The BEST 45HCAC is a heavy duty mortise lock body with public entrance function and field reversible operation, and the 45HCAINL is a heavy duty mortise lockbody with intruder function - both are lock bodies rather than complete storeroom locksets, and neither carries the storeroom function the PM081 provides. The PM081 is a storeroom function lock with lever trim, ordered with the rose or escutcheon and cylinder prep you select.
15) My storeroom door also needs a deadbolt - what takes the place of the PM081 there?
The Schlage PM081 is a latchbolt-only storeroom lock, with the latchbolt retracted by lever from either side at all times and no deadbolt. Where a thrown bolt is required, the Sargent 7925 is a Grade 1 heavy duty corridor/dormitory exit function mortise lock with rose trim and a single cylinder deadbolt, and the Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset, the same backset the PM081 uses.
16) What mortise lock should I specify for a behavioral health or ligature-resistant opening instead of a lever lock?
The Schlage PM081 uses a lever trim, which is not suited to anti-ligature openings. TownSteel's MRX-A-01 is a Grade 1 heavy duty passage function mortise lockset with ligature resistant arch trim in satin stainless steel, and the MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset, both listed for 1-3/4 inch doors. For push/pull, the Marks USA 5PDN is a Grade 1 hospital passage mortise paddleset that is ligature resistant and ADA compliant. All three are passage-type openings rather than the keyed storeroom function of the PM081.
17) I need an office or entrance function rather than storeroom - what is close to the PM081?
For an office opening, the Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with auxiliary deadlatch listed for 1-3/4 inch doors, the same door thickness the Schlage PM081 is built for. Baldwin also offers the 6301 entry/apartment mortise lock body in knob-by-knob and the 6301LS lever-by-lever, both on a 2-1/2 inch backset for 1-3/4 inch and over doors - note that backset differs from the PM081's 2-3/4 inch.
18) Does the Schlage PM081 need power or wiring?
No. The PM081 is a mechanical, key-operated mortise lock with no electronics and no wiring. If the opening needs credential or code access, look at an electronic mortise instead, such as the Schlage CO-100 standalone mortise with keypad reader (Grade 1, 1-3/4 inch doors) or the Schlage ENGAGE LEMD wireless mortise with a 125 kHz proximity reader. The PM Series also offers three electrified functions if you want to stay mechanical trim with electric control.
19) Can I use an Emtek mortise entrance lockset in place of the PM081 on a commercial door?
No. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are all dummy function - decorative trim with no latching or locking action. The Schlage PM081 is a commercial Grade 1 keyed storeroom mortise lock with a latchbolt, so on any door that has to secure it is not an interchangeable choice.
