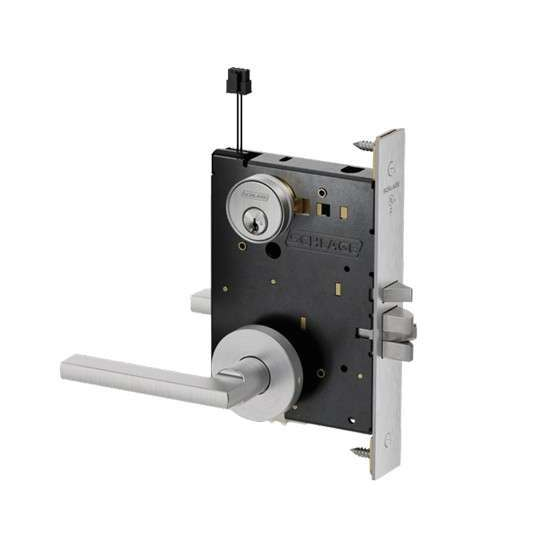

Schlage PM092 Grade 1 Electrically Locking/Unlocking Outside Lever, Outside Cylinder Electric Mortise Lock, 12/24VDC, Fail Safe/Fail Secure - Latitude Lever

Schlage PM092 Grade 1 Electrically Locking/Unlocking Outside Lever, Outside Cylinder Electric Mortise Lock, 12/24VDC, Fail Safe/Fail Secure - Latitude Lever

(No reviews yet) Write a Review

Model: PM092ELP LATA 626
$1,376.00
$861.82
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,376.00
$861.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM092 Grade 1 Electrically Locking/Unlocking Outside Lever, Outside Cylinder Electric Mortise Lock, 12/24VDC, Fail Safe/Fail Secure - Latitude Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.



PM026 - Exit lock with Cylinder

  • Key cylinder only, no lever outside; lever only inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side at all times
  • Inside lever always free for immediate egress



Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
2 Year Limited
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Storeroom
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM092
Product Function:
Storeroom
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware
Keyed:
Yes

Schlage PM092ELP LATA 626 – Frequently Asked Questions

1) Is the Schlage PM092 fail safe or fail secure, and do I have to pick one when I order?
Both are offered, and it is an ordering choice you make up front: fail-safe or fail-secure is a selectable option on the PM092. Fail-safe unlocks the outside lever when power drops, which is what you want on a stair or egress-related opening tied to fire alarm release. Fail-secure keeps the outside lever locked on power loss, which is the usual pick for a storeroom, IT closet, or tenant suite where you do not want the door free when the system goes down. Either way the electric control is on the outside lever and the outside cylinder provides mechanical key override.
2) What backset and door thickness does the Schlage PM092 mortise lock need?
Backset is 2-3/4 inches only, so the mortise pocket and cylinder/lever spacing have to match that. Door thickness is 1-3/4 inches, the standard commercial door. If your existing mortise prep is a 2-3/8 inch backset tubular or a different mortise case footprint, this will not drop in without reworking the door edge.
3) Do I need to specify left hand or right hand for the Schlage PM092?
No handing to call out. The PM092 is field reversible, so the same lock covers a left or right hand opening and you can flip it on site. That is useful for a property manager stocking one part number for a whole building instead of splitting inventory by hand.
4) Does the Schlage PM092 electric mortise lock come with a cylinder?
Depends on the cylinder option you pick. You can order it less SFIC, less FSIC, or less a conventional 6-pin cylinder if you are supplying your own core to match an existing keyway, order it with a conventional 6-pin cylinder keyed 5, or take it with an FSIC construction core for a job still under construction. The lock is keyed, and the cylinder sits on the outside for key override of the electric function.
5) What is the mortise case size on the Schlage PM092, and can I reuse an L Series pocket?
Case is 4-7/16 x 6-1/16 x 1 inch cold rolled steel with zinc dichromate plating. Important for a retrofit: PM and L Series case and cover holes differ, so an existing Schlage L Series pocket is not a straight swap even though the pocket depth is similar. Lever to cylinder spacing is 3-7/8 inches and lever to thumbturn hub is 2-11/16 inches, which is what you check the door face prep against.
6) What is the closest cross-brand equivalent to the Schlage PM092 electrified mortise lock?
The Command Access ML190 Series ML19092 motorized mortise lock is the nearest peer: it is a heavy-duty storeroom-function mortise lock with field selectable EL/EU (electrically locking or unlocking) operation on 24VDC. The Schlage PM092 covers the same ground as a Grade 1 storeroom mortise lock with fail-safe and fail-secure options ordered per unit rather than field selected, and it runs 12/24VDC. Both put the electrification in the lock case and control the outside lever.
7) If I do not need electrification, what mechanical storeroom mortise lock should I use instead of the Schlage PM092?
For a straight mechanical storeroom opening, the Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. Neither requires power or wiring. The PM092 is the choice when the outside lever has to be locked or unlocked electrically at 12/24VDC from an access control system.
8) Should I use the Schlage PM092 or a standalone keypad mortise lock for a door with no access control wiring?
The Schlage PM092 is a wired 12/24VDC electrified mortise lock and expects power run to the door. Where no wiring exists, standalone battery or keypad mortise locks are the alternative: the BEST 45HZ EZ Series is an electronic keypad mortise lock with key override, the Alarm Lock DL3500CR is a Grade 1 electronic mortise lock with 300 user codes and classroom function for 1-5/8 to 1-7/8 inch doors, and the Schlage CO-100-MS is a Grade 1 standalone electronic mortise lock with keypad reader for 1-3/4 inch doors.
9) What looks like a substitute for the Schlage PM092 but will not work on the same opening?
Several mortise products sit near it and do a different job. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset and has no lever at all. The Sargent 130KB and 130W are mortise thumbturns, trim pieces rather than lock bodies. The Emtek 3019 Brisbane and 3106 Manhattan mortise entrance locksets are dummy function. The Alarm Lock DL4500 is a Grade 1 electronic mortise deadbolt. The PM092 is a keyed, levered Grade 1 storeroom lock with electrical control of the outside lever.
10) My door is 1-5/8 inch thick. Can I use the Schlage PM092?
The Schlage PM092 is specified for 1-3/4 inch doors as standard. If the leaf is thinner than that, the Alarm Lock DL2700CR and DL3500CR Trilogy mortise locks are Grade 1 and listed for 1-5/8 to 1-7/8 inch door thickness, both in classroom function. For thicker doors, the Hager 3800 Series passage mortise locks such as the 3810S cover 1-3/4 to 2-1/2 inch with a 2-3/4 inch backset.
11) Can I mix the Schlage PM092 with other brands' mortise locks in the same door prep?
Treat the prep as brand-specific. The PM092 uses a 2-3/4 inch backset only and the description notes that PM Series and L Series case and cover holes differ, so even within Schlage the case cutouts are not assumed interchangeable. Peers vary as well: the Baldwin 6310 entry/storeroom mortise lock bodies use a 2-1/2 inch backset, while the Cal-Royal NM8080 Grade 1 storeroom lockset is built for 1-3/4 inch doors. Verify the existing mortise pocket and cross-bore against the template for whichever lock you order.
12) Will the Schlage PM092 match the other Schlage hardware already in my building?
The PM Series is made to suite with other Allegion products, and it shares lever and rose styles with the Schlage PT Series tubular locks. So you can run PM mortise locks on the heavy traffic openings and PT tubular locks on lighter interior doors and still have the same Latitude lever and rose look down the corridor, on the same key system.
13) Should I use an electrified mortise lock like the PM092 or a standalone keypad mortise lock?
Two different jobs. The PM092 is a wired 12/24VDC lock, so it belongs on an opening tied to an access control panel, card reader, or fire alarm interface, and it needs power transfer to the door. If there is no panel and no wiring, a standalone unit makes more sense: the Schlage CO-100 mortise lock is a Grade 1 standalone with a keypad reader, and the BEST 45HZ EZ Series is a keypad mortise lock with key override. Purely mechanical storeroom openings with no electronics at all are better served by something like the Cal-Royal NM8080 Grade 1 storeroom mortise lockset.
14) What are the alternatives to the Schlage PM092 if I need a wired 12/24V electrified mortise lock?
Two close peers. The BEST 45HW Series is a wired electromechanical mortise lock with 12V/24V operation, heavy duty. The Command Access ML190 Series is a motorized mortise lock with field selectable EL/EU operation at 24VDC in a storeroom function, which means you set fail-safe or fail-secure in the field rather than specifying it at order. The PM092 is ordered as one or the other, so if you are spec'ing a mixed building and want one SKU on the truck, the field-selectable route is worth a look.
15) Is the Schlage PM092 a storeroom function, and what does that mean for how the door behaves?
Storeroom function. The outside lever is locked and requires the key, with the electric control able to lock or unlock that outside lever on command. The inside lever always retracts the latch for free egress, so the door is never locked against people leaving. That combination is what makes it work for tenant storage, mechanical rooms, IT closets and back of house doors on an access control system.
16) Is the Schlage PM092 the right lock for a classroom opening?
The PM092 is a storeroom-function lock, where the outside lever is controlled electrically and by key. For classroom function, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset for 1-3/4 inch doors, the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch, and the TownSteel FME-2000 is a Grade 1 heavy-duty classroom mortise lockset with RFID.
17) What credential-reading mortise lock can replace the Schlage PM092 if I want the reader in the lock instead of on the wall?
The PM092 takes its signal from a separate access control system over 12/24VDC. Locks that carry the reader on board include the Schlage Electronics LEMD-GRW, a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and 3 hour fire rating; the TownSteel FME-2000, a Grade 1 heavy-duty mortise lockset with RFID for 1-3/4 inch doors; the Dormakaba LX-I-M002 Saffire RFID mortise lockset with BLE mobile access at BHMA Grade 2; and the Accentra NTM623-NR nexTouch Generation 3 mortise lock with a capacitive touchscreen keypad and cylinder override.
18) For a behavioral health or anti-ligature opening, what should I specify instead of the Schlage PM092?
The PM092 uses a lever with electrical control of the outside lever, which is not a ligature-resistant profile. For those openings the TownSteel MRX-L-01 is a Grade 1 heavy-duty anti-ligature lever mortise lockset in stainless steel for 1-3/4 inch doors, the MRX-A-01 is the ligature-resistant arch trim version, and the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. All three are passage function rather than storeroom.
19) What is the difference between the Schlage PM092 and the Schlage Electronics LEBMB-ADD?
The PM092 is a Grade 1 storeroom mortise lock, keyed, with the outside lever locked or unlocked electrically at 12/24VDC in fail-safe or fail-secure configuration and field reversible handing. The LEBMB-ADD is a Grade 2 mobile-enabled LE Series mortise lock with push button and LED, offering privacy, office and apartment functions on 1-3/4 inch doors with a 3 hour fire rating. One is wired hardware driven by an access control panel; the other carries its own mobile credential capability.
20) I need a mortise lock body only, without trim. Is the Schlage PM092 sold that way?
The PM092 is ordered as a complete electrified lock with Latitude lever trim and a choice of A, C, D rose or N escutcheon. If you need a lock case alone to pair with existing trim, the BEST 45H Series heavy-duty mortise lock body is a public entrance function case with field reversible operation, and the 45HCA intruder-function lockbody is the same approach. Baldwin 6301 and 6310 are also offered as mortise lock bodies.
