Schneider AL1200P24K 1200A Lug Kit Assembly

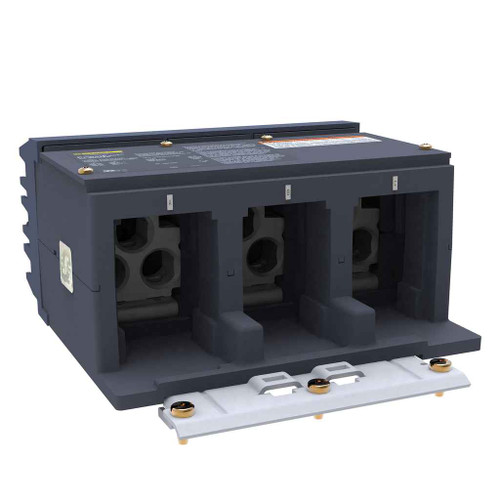

Schneider Electric AL1200P24K 1200A Aluminum Mechanical Lug Kit Assembly with 500 kcmil Capacity

(No reviews yet) Write a Review

Model: AL1200P24K

In Stock (leaves warehouse same day if ordered before 3pm ET)

$188.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric AL1200P24K 1200A Aluminum Mechanical Lug Kit Assembly

Professional Connection Accessory for High-Current Applications

The Schneider Electric AL1200P24K delivers reliable electrical connections for high-current applications with its 1200A rated aluminum mechanical lug design. This professional-grade lug kit assembly features 500 kcmil capacity and aluminum construction for dependable downstream connections in electrical distribution systems. Engineered for 800-1200A line rated current applications, this connection accessory provides the robust performance required for demanding electrical installations.

Professional Features & Benefits

  • 1200A Current Rating: Handles high-current applications up to 1200 amperes for robust electrical distribution systems.
  • 500 kcmil Capacity: Accommodates large conductor sizes for heavy-duty electrical connections and power distribution.
  • Aluminum Construction: Lightweight yet durable material provides excellent conductivity and corrosion resistance for long-term reliability.
  • Mechanical Lug Design: Secure mechanical connection ensures reliable electrical contact and easy installation in distribution equipment.
  • Downstream Connection: Optimized for downstream applications in electrical distribution systems for proper load management.
  • Set Configuration: Complete kit assembly includes all necessary components for professional installation and operation.

Technical Specifications

  • Accessory Separate Part Category: connection accessory
  • China Rohs In Scope: No
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Kcmil Size: 500 kcmil
  • Legacy Weee Scope: Out
  • Line Rated Current: 800-1200 A
  • Location Of Connection: downstream
  • Mercury Free: Yes
  • Package Weight Lbs: 254.012 g
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Material: aluminium
  • Product Or Component Type: mechanical lug
  • Quantity Per Set: set of 1
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1905
  • Rohs Eur Full Compliance Status: Pro-active compliance (Product out of EU RoHS legal scope)
  • Rohs Eur Full Compliance Status Id: PRO_ACTIVE_COMPLIANCE
  • Rohs Eur In Scope: No
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Serviceability: No
  • Sustainable Packaging: Yes
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Traceability: No
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Industrial Power Distribution Systems
  • Commercial Electrical Panels
  • High-Current Switchgear Applications
  • Electrical Distribution Equipment
  • Power Generation Facilities
  • Manufacturing Plant Electrical Systems
  • Heavy-Duty Connection Requirements

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability in electrical connection accessories with aluminum construction and mercury-free design. This mechanical lug kit assembly meets professional standards with sustainable packaging and pro-active compliance, ensuring dependable performance for critical electrical distribution applications.

Manufacturer Resources

Product Specs

Accessory Separate Part Category:
connection accessory
China Rohs In Scope:
No
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Field Service Division:
PPIBS
Function Option:
Standard
Kcmil Size:
500 kcmil
Legacy Weee Scope:
Out
Line Rated Current:
800-1200 A
Location Of Connection:
downstream
Mercury Free:
Yes
Package Weight Lbs:
254.012 g
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Material:
aluminium
Product Or Component Type:
mechanical lug
Quantity Per Set:
set of 1
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1905
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
Yes
Take Back:
No
Tier:
1
Traceability:
No
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Mechanical Lug
Product Group:
Electrical Mounting Hardware & Accessories

Schneider AL1200P24K – Frequently Asked Questions

1) What conductor size does the Schneider Electric AL1200P24K lug kit accept?
The AL1200P24K mechanical lug is sized for 500 kcmil conductor. If your feeder run uses parallel conductors of a different size, the lug has to match the kcmil you are actually landing, so confirm the conductor size on your pull sheet before ordering.
2) Can I use this Schneider lug kit on an 800A breaker, or is it 1200A only?
Line rated current on the AL1200P24K covers the 800 to 1200 A range, so it is not restricted to 1200A frames alone. The pairing still has to be the breaker or gear the kit is listed for, since lug kits are specific to the device terminal they bolt to.
3) Is the AL1200P24K for the line side or the load side?
It is a downstream connection accessory, meaning the load side of the device. If you need to terminate incoming feeders on the line side, this is not the kit for that position.
4) How many lugs come in the Schneider AL1200P24K kit?
Quantity per set is one. A three-phase termination needs one kit per pole, so plan on three for a 3-pole device and four if you are also landing a neutral on the same style of terminal.
5) Can I land copper conductor in this aluminum Schneider lug?
The lug body is aluminium. Aluminium mechanical lugs are routinely dual-rated AL/CU, but the rating stamped on the lug or in the device instruction sheet is what governs, so read the marking on the part before you terminate copper in it. Nothing in the Schneider data for the AL1200P24K states a conductor material rating beyond the aluminium body itself.
6) Is a mechanical lug the right choice here, or should I be using compression lugs?
A mechanical lug like the AL1200P24K lands the conductor with a setscrew, so you need no hydraulic crimper and no die set, and the conductor can be removed and re-terminated. Compression lugs need the right die and tool and are a one-shot termination, but they give a sealed barrel some specs demand. For field work on 500 kcmil feeders where the gear is already prepped for a bolt-on lug kit, the mechanical kit is the faster install.
7) Does this Schneider lug kit have any RoHS or REACH reporting issues for a government or institutional spec?
Two things to note for a compliance submittal on the AL1200P24K. Under REACH, the reference contains Substances of Very High Concern above the threshold, which is a disclosure item on many institutional packages. For EU RoHS, Schneider lists pro-active compliance with the product out of EU RoHS legal scope. The lug is also mercury free.
8) Can the AL1200P24K lug be rebuilt or serviced if the setscrew is damaged?
No. Serviceability on this lug kit is listed as no, so there are no replacement internals. A damaged or over-torqued lug gets replaced as a complete kit.
9) Is the AL1200P24K a standard-function lug or a special option?
Function option is Standard, so it is the base configuration rather than a special or modified variant. Ordering is straightforward: one model, AL1200P24K, with no option suffixes to pick.
10) Does the Schneider AL1200P24K use recycled aluminum, and how is it packaged?
Recycled metal content is listed at 0%, so a sustainable-sourcing buyer tracking recycled metal should not count this part toward it. Packaging is the stronger story: recycled cardboard, no single-use plastic, and flagged as sustainable packaging.
