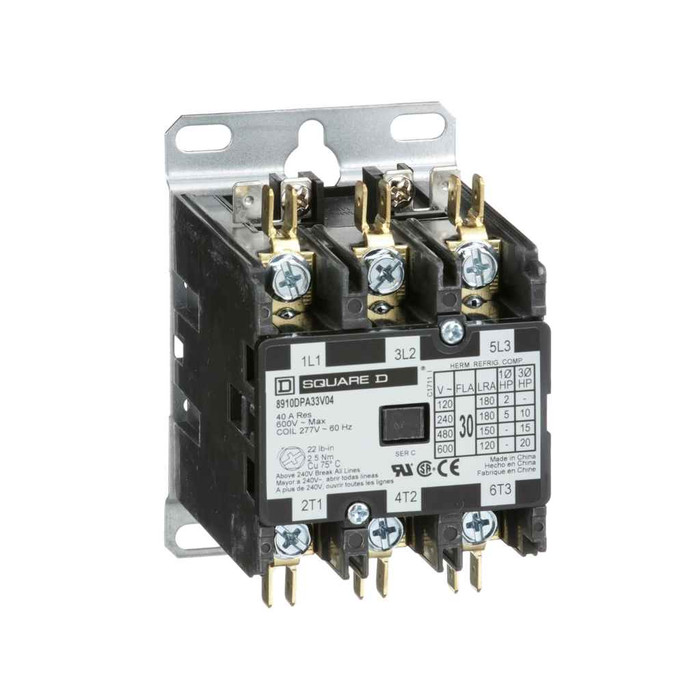

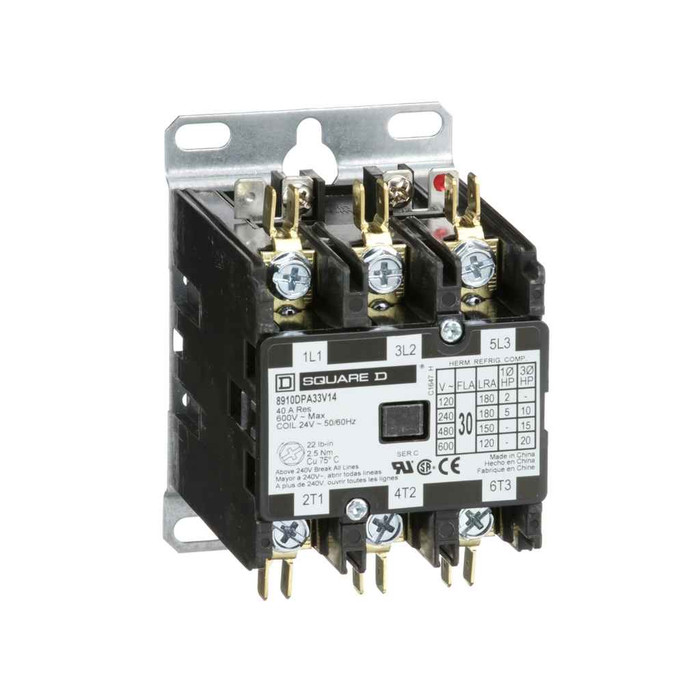

Schneider Electric Definite Purpose Contactor 30A 3-Pole 20HP at 575VAC 3-Phase DPA Series

Schneider Electric Definite Purpose Contactor 30A 3-Pole 20HP at 575VAC 3-Phase DPA Series

Professional 3-Phase Motor Control & Load Management

The Schneider Electric Definite Purpose Contactor delivers reliable 30A motor control for 3-phase applications up to 20HP at 575VAC. This DPA series contactor features 3-pole configuration with 3 NO contacts, providing dependable switching performance for commercial and industrial motor control applications. Built with professional-grade construction and compact 2.37" x 2.31" x 0.11" dimensions for space-efficient installation.

Professional Features & Benefits

• 30A Line Rated Current: Handles substantial motor loads with reliable current switching capacity for demanding applications.
• 20HP Motor Power Rating at 575VAC: Supports high-power 3-phase motors with proven performance at industrial voltage levels.
• 3-Pole Configuration with 3 NO Contacts: Provides complete 3-phase switching control with normally open contact arrangement for versatile wiring configurations.
• DPA Series Design: Part of Schneider Electric's proven definite purpose contactor line engineered for motor control reliability.
• Compact Dimensions: 2.37" x 2.31" x 0.11" footprint maximizes panel space efficiency while maintaining full performance.
• 20-Year Average Life Duration: Extended service life reduces maintenance requirements and total cost of ownership.
• RoHS Compliant Construction: Meets environmental compliance standards with mercury-free design and sustainable packaging.

Technical Specifications

• Average Life Duration: 20 year(s)
• China Rohs In Scope: No
• Country Of Origin: China
• Device Type: LV equipment - LV contactor
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Html Descr: Definite Purpose Contactor:Range of Product: DPALine Rated Current: 30AMotor Power Horsepower: 2HP
• Legacy Weee Scope: In
• Line Rated Current: 30 A
• Manufacturer: Schneider Electric
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: Yes
• Phase: 3 phase
• Pole Contact Composition: 3 NO
• Poles Description: 3P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 0.11 in
• Product Height: 2.31 in
• Product Or Component Type: Definite Purpose Contactor
• Product Width: 2.37 in
• Range Of Product: DPA
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Serviceability: No
• Sustainable Packaging: Yes
• Take Back: No
• Tier: 2
• Tier Id: 2
• Traceability: No
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Systems
• Commercial HVAC Equipment
• Manufacturing Process Control
• Pump and Compressor Control
• Conveyor System Management
• Material Handling Equipment
• Process Automation Applications

Why Choose Schneider Electric Quality?

Schneider Electric definite purpose contactors deliver proven reliability with 20-year average life duration and RoHS compliant construction. The DPA series provides dependable motor control performance with mercury-free design and sustainable packaging, ensuring long-term value for professional electrical installations.
