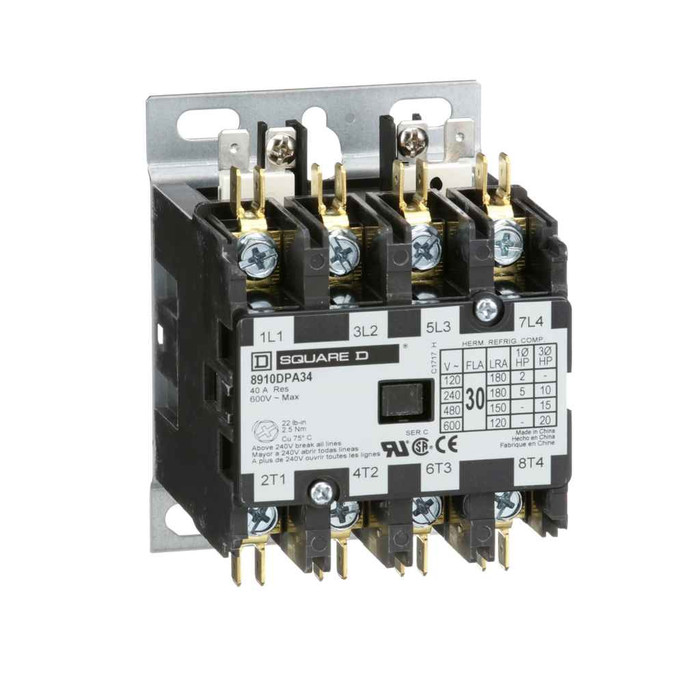

Schneider Electric Definite Purpose Contactor 30A 4-Pole 20HP 575VAC 3-Phase DPA Series

Schneider Electric Definite Purpose Contactor 30A 4-Pole 20HP 575VAC 3-Phase DPA Series

Professional Power Control for Industrial & Commercial Applications

The Schneider Electric Definite Purpose Contactor delivers reliable 30A power switching with 4-pole configuration for demanding 3-phase applications. Rated for 20HP motor loads at 575VAC, this DPA series contactor provides dependable control with 4 NO pole contact composition and compact 3.77" x 2.75" x 0.12" dimensions for versatile installation requirements.

Professional Features & Benefits

• 30A Line Rated Current: Handles substantial electrical loads with reliable switching capacity for industrial motor control applications.
• 4-Pole Configuration (4 NO): Provides comprehensive control with four normally open contacts for complex switching requirements and enhanced safety isolation.
• 20HP Motor Rating at 575VAC: Engineered for high-power 3-phase motor applications with proven performance at industrial voltage levels.
• DPA Series Design: Part of Schneider Electric's proven definite purpose contactor line offering standardized reliability and compatibility.
• Compact Form Factor: 3.77" height x 2.75" width x 0.12" depth allows flexible mounting in space-constrained electrical panels.
• 20-Year Average Life Duration: Long-term reliability reduces maintenance costs and ensures consistent performance over extended service periods.
• Mercury-Free Construction: Environmentally responsible design meets modern safety and environmental compliance standards.

Technical Specifications

• Average Life Duration: 20 year(s)
• China Rohs In Scope: No
• Country Of Origin: China
• Device Type: LV equipment - LV contactor
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Html Descr: Definite Purpose Contactor:Range of Product: DPALine Rated Current: 30AMotor Power Horsepower: 2HP
• Legacy Weee Scope: In
• Line Rated Current: 30 A
• Manufacturer: Schneider Electric
• Mercury Free: Yes
• Package Weight Lbs: 557.918 g
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: Yes
• Phase: 3 phase
• Pole Contact Composition: 4 NO
• Poles Description: 4P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 0.12 in
• Product Height: 3.77 in
• Product Or Component Type: Definite Purpose Contactor
• Product Width: 2.75 in
• Range Of Product: DPA
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2541
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: Yes
• Take Back: No
• Tier: 2
• Tier Id: 2
• Traceability: No
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Systems
• Commercial HVAC Equipment
• Manufacturing Process Control
• Pump and Compressor Control
• Conveyor System Management
• Heavy Equipment Power Switching
• Electrical Panel Integration

Why Choose Schneider Electric Quality?

Schneider Electric definite purpose contactors deliver proven reliability with 20-year average life duration and mercury-free construction. RoHS compliant design with sustainable packaging reflects commitment to environmental responsibility while maintaining the performance standards required for demanding industrial applications.
