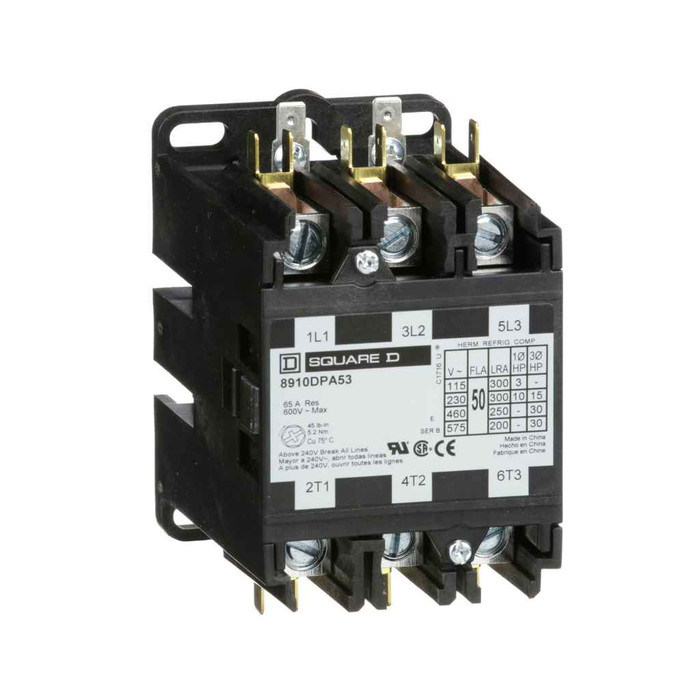

Schneider Electric Definite Purpose Contactor 50A 3-Pole 25HP at 575VAC 3-Phase Open Type

(No reviews yet) Write a Review

Model: 8910DPA53V02

In Stock (leaves warehouse same day if ordered before 3pm ET)

$293.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Definite Purpose Contactor 50A 3-Pole 25HP at 575VAC 3-Phase Open Type

Professional Motor Control & Load Switching Solution

The Schneider Electric Definite Purpose Contactor delivers reliable motor control and load switching for 3-phase applications. This 50A rated contactor features 3-pole configuration with 3 NO contacts, designed for 25HP motor loads at 575VAC in 3-phase systems. Built with professional-grade construction and open-type design for versatile installation requirements.

Professional Features & Benefits

  • 50A Line Rated Current: Handles substantial motor loads and electrical switching applications with reliable current capacity.
  • 3-Phase 575VAC Rating: Optimized for commercial and industrial 3-phase power systems with high voltage capability.
  • 25HP Motor Power Rating: Specifically designed for substantial motor control applications requiring dependable switching performance.
  • 3-Pole 3 NO Contact Configuration: Provides complete 3-phase switching with normally open contacts for standard motor control circuits.
  • Open Type Construction: Allows flexible mounting and integration into various enclosure configurations and control panels.
  • 20-Year Average Life Duration: Engineered for long-term reliability and reduced maintenance requirements in demanding applications.
  • DPA Range Design: Part of Schneider Electric's proven Definite Purpose Contactor series for consistent performance standards.

Technical Specifications

  • Average Life Duration: 20 year(s)
  • China Rohs In Scope: No
  • Country Of Origin: China
  • Device Type: LV equipment - LV contactor
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: Definite Purpose Contactor:Range of Product: DPALine Rated Current: 50AMotor Power Horsepower: 3HP
  • Legacy Weee Scope: In
  • Line Rated Current: 50 A
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Phase: 3 phase
  • Pole Contact Composition: 3 NO
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 0.14 in
  • Product Height: 4.13 in
  • Product Or Component Type: Definite Purpose Contactor
  • Product Width: 2.56 in
  • Range Of Product: DPA
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2541
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Serviceability: No
  • Sustainable Packaging: Yes
  • Take Back: No
  • Tier: 2
  • Tier Id: 2
  • Traceability: No
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Industrial Motor Control Systems
  • Commercial HVAC Equipment
  • Manufacturing Process Control
  • Pump and Compressor Control
  • Material Handling Systems
  • Food Processing Equipment
  • Water Treatment Facilities

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with this definite purpose contactor featuring 20-year average life duration and mercury-free construction. EU RoHS compliant design with sustainable packaging demonstrates commitment to environmental responsibility while maintaining professional performance standards for demanding electrical applications.

Manufacturer Resources

Product Specs

Average Life Duration:
20 year(s)
China Rohs In Scope:
No
Country Of Origin:
China
Device Type:
LV equipment - LV contactor
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Function Option:
Standard
Html Descr:
Definite Purpose Contactor:Range of Product: DPALine Rated Current: 50AMotor Power Horsepower: 3HP
Legacy Weee Scope:
In
Line Rated Current:
50 A
Mercury Free:
Yes
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Phase:
3 phase
Pole Contact Composition:
3 NO
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
0.14 in
Product Height:
4.13 in
Product Or Component Type:
Definite Purpose Contactor
Product Width:
2.56 in
Range Of Product:
DPA
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2541
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
Yes
Take Back:
No
Tier:
2
Traceability:
No
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Definite Purpose Contactor
Product Group:
Motor Starters & Contactors

Schneider 8910DPA53V02 – Frequently Asked Questions

1) Which coil voltage do I order on the Schneider 8910DPA53V definite purpose contactor?
Three coil options are offered, and the coil voltage has to match your control transformer or thermostat circuit. Order 8910DPA53V02 for 120V AC 60Hz (110V AC 50Hz), 8910DPA53V09 for 208 to 240V AC 60Hz (220V AC 50Hz), or 8910DPA53V14 for 24V AC 50/60Hz. The 24V coil is the usual pick for HVAC low voltage thermostat control; the 120V coil suits a panel with a 120V control circuit. Power circuit rating is the same across all three.
2) Will a 3-pole definite purpose contactor work for a single phase motor or a 2-wire load?
The 8910DPA53V is a 3-pole, 3 phase device with three normally open power poles, so it is built to switch all three legs of a 3-phase feed. You can land a single phase load across two of the poles, but if the application is genuinely single phase you are usually better off with a 2-pole definite purpose contactor sized to that load rather than paying for a third pole you will not use.
3) How many amps will the Schneider DPA contactor carry?
Line rated current is 50 A across the three poles. Size it against the continuous current of the load you are switching, not just the nameplate horsepower, and keep your branch circuit protection sized per the motor circuit requirement.
4) Does this Schneider contactor come in an enclosure or do I need to mount it in a panel?
It is an open type contactor, so there is no enclosure with it. It goes inside a control panel, an air handler cabinet, a condensing unit, or a separately purchased NEMA enclosure that suits the environment. For an outdoor or washdown location you will need to provide that enclosure yourself.
5) What are the dimensions of the 8910DPA53V contactor for panel layout?
The Schneider DPA contactor measures 4.13 in height, 2.56 in width and 0.14 in depth as published. Lay it out with room for wire bending space at the line and load terminals and clearance for the coil leads.
6) Can I rebuild a Schneider DPA contactor or replace the contacts when they pit?
No. The DPA range is listed as non serviceable, so there are no replacement contact kits or coil assemblies for it. When the contacts weld or pit, or the coil fails, you swap the whole contactor. Facilities running these in duty cycle HVAC or pump service often keep a spare on the shelf in the matching coil voltage for that reason.
7) What is a definite purpose contactor and when should I use one instead of a general purpose IEC contactor?
A definite purpose contactor like the Schneider DPA is built for a specific, repetitive job, typically HVAC compressors, condenser fans, pumps and similar single function loads, and it is applied straight to the current and horsepower rating of that load. A general purpose IEC or NEMA contactor is the choice when you need utilization category flexibility, auxiliary contact stacks, overload relay mounting, or reversing and starter assemblies. For a compressor or fan contactor in a packaged unit, the DPA is the normal replacement.
8) Does the Schneider DPA contactor have auxiliary contacts?
The pole configuration is 3 NO, three normally open power poles only. If your control scheme needs a proving contact back to a BAS, a lockout circuit, or an interlock, plan on a separate auxiliary means rather than assuming an aux block is included.
9) Is the Schneider 8910DPA contactor RoHS compliant, and does it contain SVHC substances?
EU RoHS status is compliant with exemptions, and the part is mercury free. On REACH, the reference contains Substances of Very High Concern above the threshold, which matters if your facility or specification requires SVHC declarations. Packaging is recycled cardboard and free of single use plastic.
10) Where is the Schneider definite purpose contactor made and how long does it last?
Country of origin is China, and Schneider publishes an average life duration of 20 years for the DPA range. Actual service life on a compressor circuit depends far more on cycling frequency and inrush than on calendar years, so high cycle applications should expect replacement sooner.
