Professional Multipole Lighting Control Solution

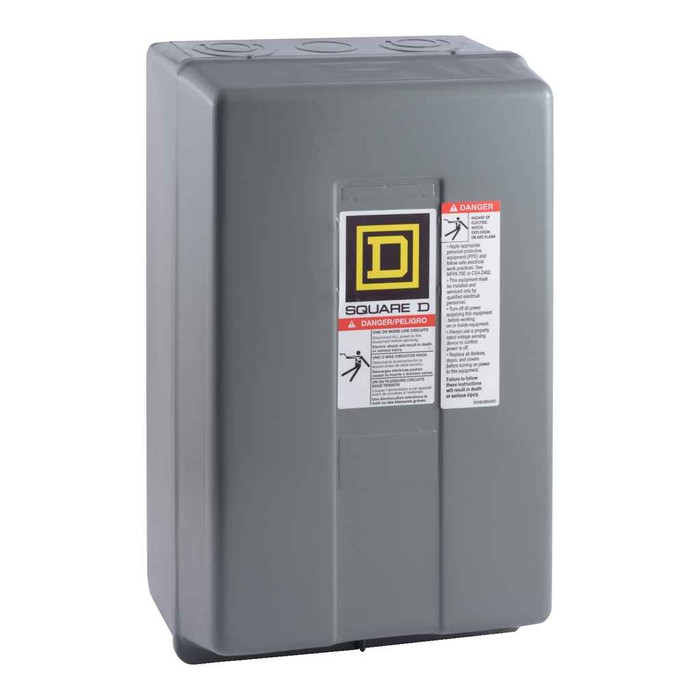

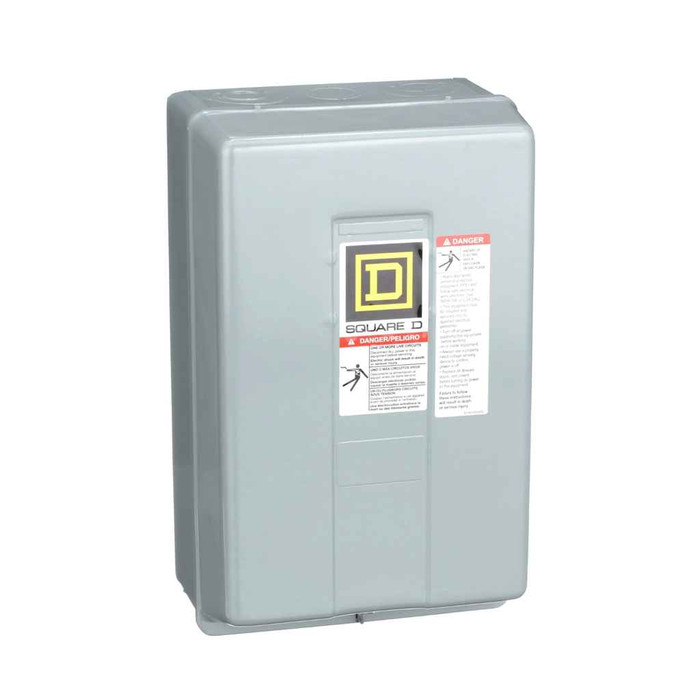

The Schneider Electric 8903L series electrically held lighting contactor delivers reliable 30A switching capacity across 12 poles with 600V rating in a NEMA 1 enclosure. This Type L multipole lighting contactor features 110/120VAC 50/60Hz coil operation with screw-clamp terminals for secure electrical connections, providing professional-grade lighting control for commercial and industrial applications.

Professional Features & Benefits

• 30A 12 Pole Configuration: Handles substantial lighting loads with multiple switching points for comprehensive circuit control
• 600V Operating Voltage: Supports high-voltage lighting systems with reliable switching performance
• NEMA 1 Enclosure: Provides protection against incidental contact and falling dirt in indoor environments
• Electrically Held Design: Maintains contact position during operation for consistent lighting control
• Screw-Clamp Terminals: Ensures secure wire connections with easy installation and maintenance access
• 20 Year Average Life Duration: Delivers long-term reliability reducing replacement frequency and maintenance costs
• 110/120VAC 50/60Hz Coil: Compatible with standard North American control voltage systems

Technical Specifications

• Average Life Duration: 20 year(s)
• China Rohs In Scope: No
• China Rohs Label: 1
• Compliance: TAA
• Control Circuit: separate control circuit
• Control Type: no control units
• Country Of Origin: Mexico
• Device Type: LV equipment - LV contactor
• Electrical Connection: screw-clamp terminals
• Environmental Disclosure: ENVPEP1407018EN
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Halogen Content Performance: Halogen free plastic parts product
• Halogen Free Status: Halogen free plastic parts product
• Halogene Performance: Halogen free plastic parts product
• Html Descr: LIGHTING CONTACTOR 600VAC
• Legacy Weee Scope: In
• Local Signalling: no indicator
• Manufacturer: Schneider Electric
• Mercury Free: Yes
• Package Weight Lbs: 5.02 kg
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: Yes
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 6.02 in
• Product Height: 12.68 in
• Product Or Component Type: Electrically Held Lighting Contactor
• Product Width: 7.8 in
• Range Of Product: 8903L
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2541
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: Yes
• Take Back: No
• Tier: 2
• Tier Id: 2
• Toxic Heavy Metal Free: Yes
• Traceability: No
• Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Lighting Systems
• Industrial Facility Lighting Control
• Multi-Zone Lighting Management
• Warehouse and Distribution Centers
• Manufacturing Plant Lighting
• Retail and Office Buildings
• Educational and Healthcare Facilities

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with this TAA compliant lighting contactor featuring 20 year average life duration and halogen-free construction. The NEMA 1 enclosure and mercury-free design ensure safe, environmentally responsible operation while RoHS compliance and sustainable packaging demonstrate commitment to professional standards and environmental stewardship.
