Schneider Electric Type L Mult...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,520.06
$1,382.66

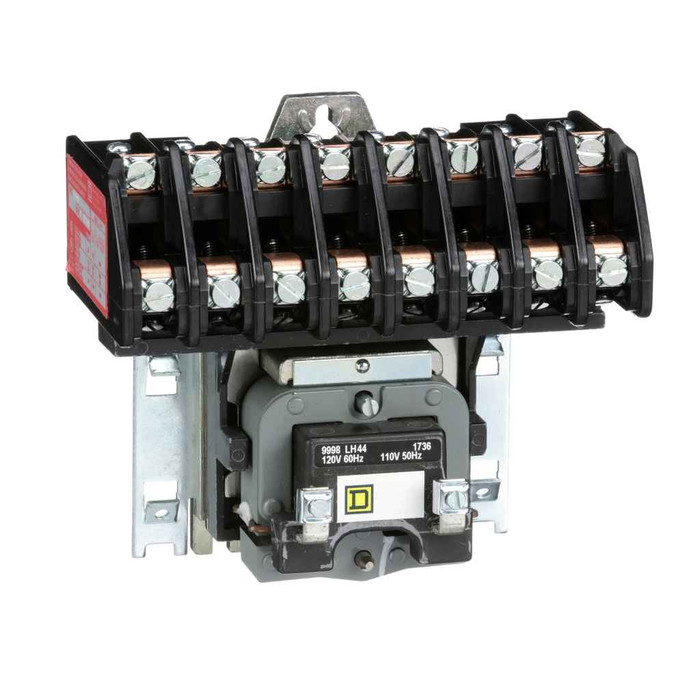

Schneider Contactor, Type L, Multipole Lighting, Electrically Held, 30A, 600V

Schneider Electric Type L Multipole Lighting Contactor 30A 600V Electrically Held

(No reviews yet) Write a Review

Model: 8903LO80V02

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,520.06
$1,382.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Type L Multipole Lighting Contactor 30A 600V Electrically Held

Professional Lighting Control for Commercial and Industrial Applications

The Schneider Electric Type L Multipole Lighting Contactor delivers reliable 30A, 600V electrical control for demanding lighting applications. This electrically held contactor features screw-clamp terminals for secure connections and operates with a separate control circuit for enhanced flexibility. Built to professional standards with a 20-year average life duration, this contactor provides dependable performance in commercial and industrial environments.

Professional Features & Benefits

  • 30A 600V Rating: Handles substantial lighting loads with reliable electrical performance for commercial applications
  • Electrically Held Design: Maintains contact position through electrical control for precise lighting management
  • Screw-Clamp Terminals: Provides secure, maintenance-friendly electrical connections for professional installations
  • Separate Control Circuit: Enables flexible control integration with building automation and lighting control systems
  • 20-Year Average Life Duration: Delivers long-term reliability reducing maintenance costs and system downtime
  • TAA Compliance: Meets Trade Agreements Act requirements for government and institutional projects
  • Halogen-Free Construction: Environmentally responsible design with halogen-free plastic components

Technical Specifications

  • Average Life Duration: 20 year(s)
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Compliance: TAA
  • Control Circuit: separate control circuit
  • Control Type: no control units
  • Country Of Origin: Mexico
  • Device Type: LV equipment - LV contactor
  • Electrical Connection: screw-clamp terminals
  • Environmental Disclosure: ENVPEP1407018EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Halogen Content Performance: Halogen free plastic parts product
  • Halogen Free Status: Halogen free plastic parts product
  • Halogene Performance: Halogen free plastic parts product
  • Legacy Weee Scope: In
  • Local Signalling: no indicator
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Nema Degree Of Protection: not rated (open device)
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.11 in
  • Product Height: 5 in
  • Product Or Component Type: Electrically Held Lighting Contactor
  • Range Of Product: 8903L
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2541
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 2
  • Tier Id: 2
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Commercial Building Lighting Control
  • Industrial Facility Lighting Management
  • Warehouse and Distribution Centers
  • Educational Institution Lighting Systems
  • Healthcare Facility Lighting Control
  • Retail and Office Building Applications
  • Municipal and Government Buildings

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with TAA compliance for government projects and comprehensive environmental compliance including RoHS and REACH directives. The 20-year average life duration and halogen-free construction demonstrate the commitment to both performance and environmental responsibility in professional electrical applications.

Manufacturer Resources

Product Specs

Average Life Duration:
20 year(s)
China Rohs In Scope:
No
China Rohs Label:
1
Compliance:
TAA
Control Circuit:
separate control circuit
Control Type:
no control units
Device Type:
LV equipment - LV contactor
Electrical Connection:
screw-clamp terminals
Environmental Disclosure:
ENVPEP1407018EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PPIBS
Function Option:
Standard
Halogen Content Performance:
Halogen free plastic parts product
Legacy Weee Scope:
In
Local Signalling:
no indicator
Mercury Free:
Yes
Nema Degree Of Protection:
not rated (open device)
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.11 in
Product Height:
5 in
Product Or Component Type:
Electrically Held Lighting Contactor
Range Of Product:
8903L
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2541
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
2
Toxic Heavy Metal Free:
Yes
Traceability:
No
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Electrically Held Lighting Contactor
Product Group:
Motor Starters & Contactors

Schneider 8903LO80V02 – Frequently Asked Questions

1) How many poles can I get on the Schneider 8903L Type L lighting contactor, and what are the part numbers?
The 8903L Type L electrically held lighting contactor comes in two pole counts: 4-pole with 4 normally open contacts, ordered as 8903LO40V02, and 8-pole with 8 normally open contacts, ordered as 8903LO80V02. All poles are NO, so every circuit is open until the coil is energized. Pick the pole count to match the number of lighting branch circuits you are switching, one pole per circuit.
2) Does this Schneider lighting contactor come in an enclosure or do I need to supply one?
It is an open device, not rated for any NEMA degree of protection, so it ships without an enclosure. Plan on mounting it inside a panel, lighting control cabinet, or a separately purchased NEMA enclosure suited to the location. The contactor body measures 5 in in height and 3.11 in in depth, which you will need to check against the cabinet space you have.
3) Should I use an electrically held or a mechanically held lighting contactor?
Electrically held, which is what the 8903L Type L is, means the coil has to stay energized the whole time the lights are on, and the contacts drop out the instant control power is lost. That suits a maintained switch, a time clock with a continuous contact, or a BAS output that holds its state. If your control is a momentary pushbutton or a pulse from a photocell relay, or if you want the lights to stay put through a control power interruption, you want a mechanically held contactor instead, not this one.
4) Can I wire this contactor to a building automation system or time clock?
Yes. The Type L contactor uses a separate control circuit, so the coil is wired independently of the switched line side. That lets a BAS relay output, a lighting time clock, or a photocell drive the coil while the load poles carry the 30A, 600V lighting circuits. Keep in mind it is electrically held, so the controlling output has to maintain the contact closed rather than pulse it.
5) Is this Schneider contactor TAA compliant for a government or institutional project?
Yes, the 8903L Type L contactor is listed as TAA compliant, which is what federal, municipal, and many institutional specs require. Country of origin is Mexico. It is also EU RoHS compliant and free of Substances of Very High Concern above the REACH threshold, mercury free, and free of toxic heavy metals, with an environmental product declaration under ENVPEP1407018EN for submittal packages.
6) Will a 30A 600V lighting contactor handle 277V and 480V lighting circuits?
Yes. The Type L contactor is rated to 600V, which covers 120V, 208V, 240V, 277V, and 480V lighting branch circuits, with a 30A current rating per pole. Size the load so the connected lighting current stays within 30A on each pole, and remember the 600V figure is the insulation and switching rating, not the coil voltage, which is fed from the separate control circuit.
7) Does the Schneider 8903L contactor include a hand-off-auto selector or pilot light?
No. It ships with no control units and no indicator, meaning there is no integral selector switch, pushbutton, or pilot light. If the job calls for hand-off-auto control or a visual on/off indication at the panel, those have to be ordered and wired separately into the coil circuit.
8) What kind of terminations does this lighting contactor use, and do I need lugs?
Connections are screw-clamp terminals on both the power poles and the control circuit, so conductors land directly under the clamp without separate compression lugs. Strip and torque per the device markings. For a 30A lighting circuit that is a straightforward copper branch conductor termination.
9) Can I rebuild this contactor or replace the contacts when they wear out?
No. The 8903L Type L is listed as not serviceable, so there are no field-replaceable contact kits or coils for it. When it reaches end of life it gets replaced as a unit. Average life duration is published at 20 years. Plan maintenance around swap-out, and if you are standardizing a building, keeping a spare 4-pole or 8-pole on the shelf is the practical approach.
10) Is the Schneider 8903L contactor halogen free for a healthcare or LEED-oriented project?
The plastic parts are halogen free, and the carton is made with recycled cardboard. Two things to flag for a green-spec submittal: the packaging is not single-use-plastic free, and recycled metal content at the CR level is 0%. A full environmental profile is published as ENVPEP1407018EN.
