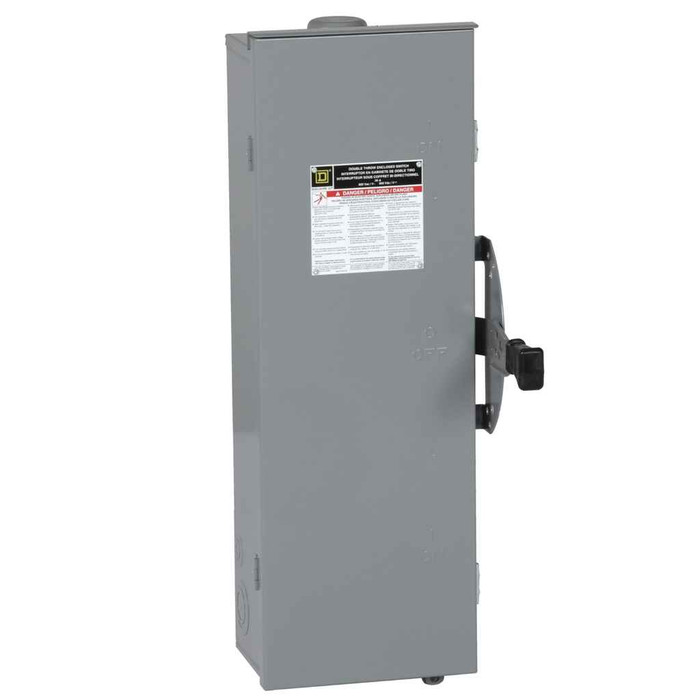

Schneider DTU36 Series Heavy-Duty Safety Switches — 30A–100A, Fusible & Non-Fusible, Standard & Rainproof (RB) Models

Schneider Electric DTU36 Heavy-Duty Double Throw Safety Switch 30A 600V 3-Pole NEMA 1 Non-Fusible

(No reviews yet) Write a Review

Model: DTU361

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,038.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric DTU36 Heavy-Duty Double Throw Safety Switch

Professional Power Transfer & Isolation Control

The Schneider Electric DTU36 Heavy-Duty Double Throw Safety Switch delivers reliable power transfer and isolation control for demanding electrical applications. This 30A, 600 VAC/VDC rated switch features robust 3-pole construction with NEMA 1 enclosure protection, providing dependable service in commercial and industrial environments where secure power switching is essential.

Professional Features & Benefits

  • 30A Current Rating: Handles substantial electrical loads with reliable switching capacity for medium-duty applications.
  • 600 VAC/VDC Voltage Rating: Compatible with both AC and DC systems, providing versatile installation options across various power configurations.
  • 3-Pole Configuration: Ensures complete circuit isolation with simultaneous switching of all three phases for enhanced safety and control.
  • NEMA 1 Enclosure: Provides protection against incidental contact with enclosed equipment and falling dirt in indoor general-purpose applications.
  • Double Throw Design: Enables transfer between two power sources with mechanical interlocking to prevent simultaneous connection.
  • cULus Certification: Meets rigorous safety standards for both US and Canadian electrical installations, ensuring code compliance.
  • 15-Year Average Life Duration: Engineered for long-term reliability with extended service life reducing maintenance costs and downtime.

Technical Specifications

  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Country Of Origin: United States
  • Device Composition: none
  • Device Type: LV equipment - LV fuse - switch
  • Disconnector Device Type: non-fusible disconnect switch
  • Environmental Disclosure: ENVPEP2503028_V1
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • Html Descr: Safety switch, double throw, non fusible, 30A, 600 VAC/VDC, 3 poles, 30 hp, NEMA 1
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Nema Degree Of Protection: NEMA 1
  • Number Of Poles: 3
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Certifications: cULus
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 6.93 in
  • Product Height: 29.94 in
  • Product Or Component Type: Double Throw Safety Switch
  • Product Width: 11.96 in
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1920
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Series Name: heavy duty
  • Serviceability: No
  • Sustainable Packaging: Yes
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Commercial Building Power Transfer
  • Industrial Equipment Isolation
  • Generator Transfer Systems
  • Emergency Power Switching
  • Maintenance Disconnect Applications
  • Multi-Source Power Management
  • Critical Load Transfer Operations

Why Choose Schneider Electric Quality?

Schneider Electric DTU36 safety switches combine proven heavy-duty construction with comprehensive safety certifications including cULus listing. The 15-year average life duration and NEMA 1 enclosure protection ensure reliable long-term performance in demanding electrical environments, backed by Schneider Electric's commitment to sustainable manufacturing practices.

Manufacturer Resources

Product Specs

Average Life Duration:
15 year(s)
China Rohs In Scope:
No
China Rohs Label:
1
Country Of Origin:
United States
Device Composition:
none
Device Type:
LV equipment - LV fuse - switch
Disconnector Device Type:
non-fusible disconnect switch
Environmental Disclosure:
ENVPEP2503028_V1
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
Html Descr:
Safety switch, double throw, non fusible, 30A, 600 VAC/VDC, 3 poles, 30 hp, NEMA 1
Legacy Weee Scope:
In
Mercury Free:
Yes
Nema Degree Of Protection:
NEMA 1
Number Of Poles:
3
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Product Availability:
Stock - Normally stocked in distribution facility
Product Certifications:
cULus
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
6.93 in
Product Height:
29.94 in
Product Or Component Type:
Double Throw Safety Switch
Product Width:
11.96 in
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1920
Rohs Exemption Information:
Yes
Series Name:
heavy duty
Serviceability:
No
Sustainable Packaging:
Yes
Take Back:
No
Tier:
1
Toxic Heavy Metal Free:
Yes
Traceability:
No
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Double Throw Safety Switch
Product Group:
Safety Switches & Disconnects

Schneider DTU361 – Frequently Asked Questions

1) Can the Schneider DTU36 double throw switch be used as a manual generator transfer switch?
That is exactly what a double throw switch does. The DTU36 transfers a load between two power sources, utility and generator for example, and the mechanical design prevents both sources being connected at the same time. It is a manual switch, so someone has to be at the enclosure to throw it. It is also non-fusible, so overcurrent protection has to come from breakers or fused gear elsewhere in the circuit.
2) Does the Schneider DTU36 safety switch include fuses or fuse clips?
No. The DTU36 covered here is the non-fusible version, so there are no fuse clips inside and nothing to stock spare fuses for. Circuit protection must be provided upstream. If the design calls for fusing at the transfer point, you need the fusible version of the DTU36 series instead.
3) What amperage ratings does the Schneider DTU36 double throw switch come in?
Two: 30 A (catalog number DTU361) and 100 A (DTU363). Both are 600 VAC/VDC, 3-pole, NEMA 1. Size to the load being transferred, not to the generator nameplate alone.
4) Can the DTU36 safety switch be mounted outdoors?
No. NEMA 1 is an indoor general purpose enclosure, rated only against incidental contact and falling dirt. Rain, washdown or corrosive areas need a rainproof enclosure instead. The DTU36 series does include rainproof (RB) models for those locations.
5) How much wall space do I need for the Schneider DTU36 double throw switch?
Plan on an enclosure roughly 29.94 in high, 11.96 in wide and 6.93 in deep, plus working clearance in front per NEC. It is a tall, narrow box, so the height is usually what catches people out in a crowded electrical room.
6) Is the Schneider DTU36 switch UL listed for use in Canada as well as the US?
It carries cULus certification, which covers both US and Canadian requirements, so it can be specified on jobs either side of the border without a second listing.
7) What horsepower motor load can the DTU36 disconnect handle?
The switch is rated 30 hp. That makes it usable as a motor disconnect within that horsepower and within the 30 A or 100 A current rating of the version you pick.
8) Is the Schneider DTU36 heavy duty or general duty construction?
Heavy duty. That is the series it belongs to, which is the line spec'd for industrial and commercial service rather than the lighter general duty product used on residential and light commercial work.
9) Can the DTU36 safety switch be rebuilt or repaired in the field?
No, it is not a serviceable device. Treat it as a replace-on-failure item and keep that in mind for critical transfer points where you may want a spare on the shelf. Schneider lists an average life duration of 15 years for planning maintenance cycles.
10) Does the Schneider DTU36 meet RoHS and REACH requirements for a sustainability spec?
Yes on both. It is RoHS compliant under the EU directive and free of REACH Substances of Very High Concern above the threshold. It is also mercury free and free of toxic heavy metals, and Schneider classes it as a Green Premium product. Packaging is recycled cardboard with no single use plastic. Environmental profile document reference is ENVPEP2503028_V1.
11) Is the Schneider DTU36 made in the USA for Buy American jobs?
Country of origin on the DTU36 is the United States. Public projects with domestic sourcing language usually want documentation from the manufacturer on file, so request that with the submittal package.
