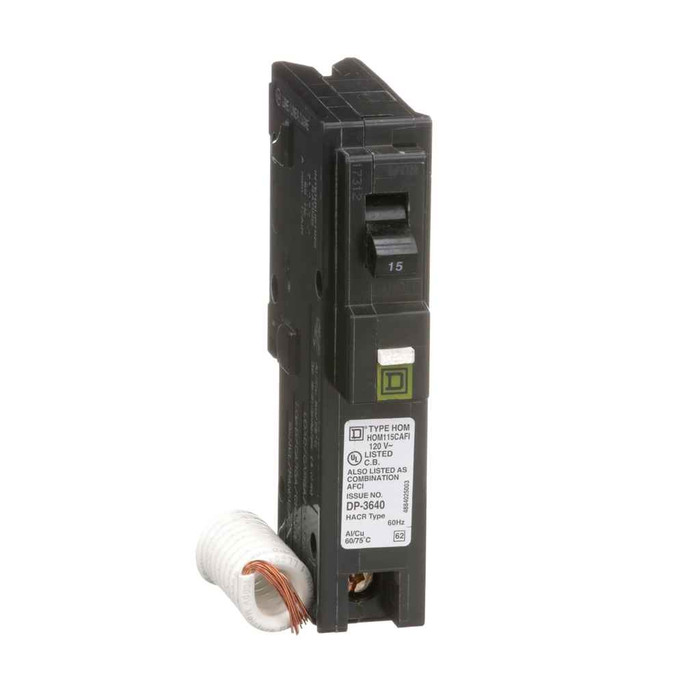

Schneider Electric Homeline CAFI Arc-Fault Circuit Breaker 1-Pole 15-20A 10kA

Schneider Electric Homeline CAFI Arc-Fault Circuit Breaker 1-Pole 15-20A 10kA

Professional Arc-Fault Protection for Residential Applications

The Schneider Electric Homeline CAFI Arc-Fault Circuit Breaker delivers reliable combination arc-fault protection for residential electrical systems. This 1-pole miniature circuit breaker features 15-20A rating with 10kA short circuit current capacity, designed for plug-in mounting in standard electrical panels. UL Listed for safety and performance, this HACR rated breaker provides essential arc-fault protection in a compact 1-space design.

Professional Features & Benefits

• Combination Arc-Fault Protection: CAFI technology detects and interrupts dangerous arc-faults to prevent electrical fires and enhance safety.
• 15-20A Current Rating: Suitable for standard residential branch circuits with reliable overcurrent protection.
• 10kA Short Circuit Current: High interrupting capacity handles fault conditions effectively in residential applications.
• UL Listed Certification: Meets rigorous safety standards for reliable performance and code compliance.
• HACR Rated Design: Approved for heating, air conditioning, and refrigeration applications with motor loads.
• Plug-In Mounting: Easy installation in compatible Homeline panels with secure connection.
• 15-Year Average Life Duration: Long service life reduces maintenance requirements and replacement costs.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Circuit Breaker Type: combination ARC-fault
• Circularity Profile: ENVEOLI2212005
• Compliance: TAA
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• End Of Life Doc Ref: ENVEOLI2212005
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212005
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Arc-fault protection devices
• H And D Enrichment Class 4: CAFI
• H And D Enrichment Function: AFCI
• H And D Subrange: RESI
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: plug-in
• Number Of Spaces Required: 1
• Packaging Without Single Use Plastic: Yes
• Poles Description: 1P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.98 in
• Product Height: 3.13 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 1 in
• Range Of Product: Homeline
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Short Circuit Current: 10 kA
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 41 kg CO2 eq.
• Traceability: No
• Use Carbon Footprint: 39.066
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Branch Circuit Protection
• Single-Family Home Electrical Systems
• Multi-Unit Residential Properties
• Apartment and Condominium Buildings
• HVAC Equipment Protection
• Appliance Circuit Protection
• General Purpose Residential Circuits

Why Choose Schneider Electric Quality?

Schneider Electric Homeline circuit breakers deliver proven reliability with UL Listed certification and 15-year average life duration. The halogen-free, mercury-free design supports environmental responsibility while maintaining professional performance standards. Green Premium product status and comprehensive compliance certifications ensure long-term value and code compliance for residential electrical installations.
