Schneider Electric QO 2-Pole M...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$229.76

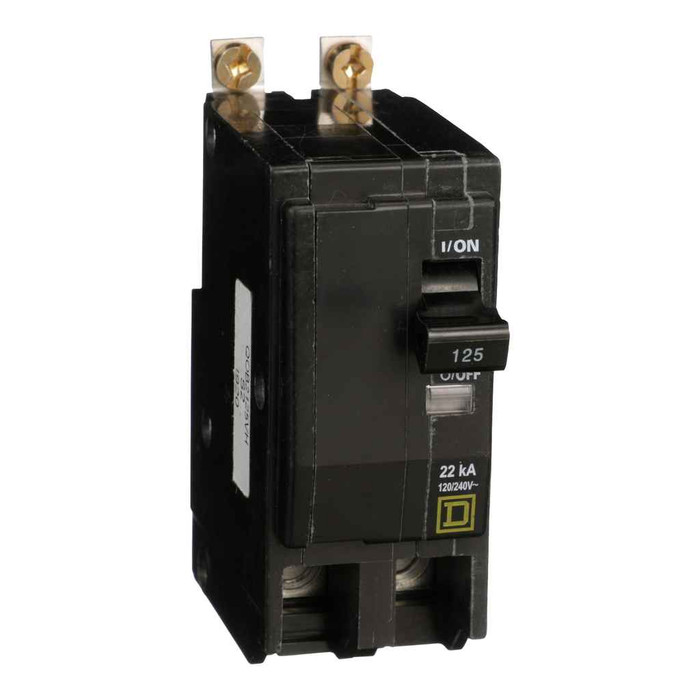

Schneider Mini Circuit Breaker, QO, 2 Pole, 120/240VAC, 22kA, Bolt On

Schneider Electric QO 2-Pole Miniature Circuit Breaker 120/240VAC 22kA Bolt-On HACR Rated

(No reviews yet) Write a Review

Model: QOB240VH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$229.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric QO 2-Pole Miniature Circuit Breaker 120/240VAC 22kA Bolt-On HACR Rated

Professional Circuit Protection for Commercial Applications

The Schneider Electric QO 2-pole miniature circuit breaker delivers reliable electrical protection with 120/240VAC operation and 22kA interrupting capacity. This bolt-on design features HACR rating for heating, air conditioning, and refrigeration applications, making it ideal for commercial installations. Built with halogen-free materials and mercury-free construction, this circuit breaker provides dependable performance in a compact 1.5-inch width profile requiring 2 panel spaces.

Professional Features & Benefits

  • 22kA Interrupting Capacity: Provides robust fault current protection for demanding commercial electrical systems and equipment.
  • HACR Rating: Specifically designed and tested for heating, air conditioning, and refrigeration equipment protection with enhanced motor starting capabilities.
  • Bolt-On Mounting: Secure mechanical connection ensures reliable contact and prevents accidental disconnection during service or vibration.
  • 2-Pole Configuration: Simultaneous protection of both hot conductors with common trip mechanism for balanced load applications.
  • Compact Design: 1.5-inch width and 2.91-inch depth maximizes panel space utilization while maintaining full protection capabilities.
  • Halogen-Free Construction: Environmentally responsible materials reduce toxic emissions during fire conditions for safer building environments.
  • 15-Year Average Life Duration: Extended service life reduces maintenance costs and provides long-term reliability for critical applications.

Technical Specifications

  • Ambient Air Temperature For Operation: 40 °C
  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Circuit Breaker Application: HACR rated
  • Circuit Breaker Type: standard
  • Country Of Origin: Mexico
  • Device Type: LV equipment - Low voltage circuit breaker
  • Energy Efficiency Optimized: FALSE
  • Environmental Disclosure: ENVPEP2111016
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • H And D Domain: Safety
  • H And D Enrichment Assignment: no
  • H And D Enrichment Class 3: Circuit Breakers
  • H And D Enrichment Class 4: MCB UL 2P
  • H And D Enrichment Function: MCB
  • H And D Subrange: COM
  • Halogen Content Performance: Halogen free product
  • Halogen Free Status: Halogen free product
  • Halogene Performance: Halogen free product
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Market Segmentation: Commercial
  • Market Segmentation Id: COMMERCIAL
  • Mercury Free: Yes
  • Mounting Mode: bolt-on
  • Number Of Spaces Required: 2
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: Yes
  • Poles Description: 2P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.91 in
  • Product Or Component Type: miniature circuit-breaker
  • Product Width: 1.5 in
  • Range Of Product: QO
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2534
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Total Lifecycle Carbon Footprint: 19 kg CO2 eq.
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Use Carbon Footprint: 17.30424348
  • With Recycled Cardboard: No
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Commercial HVAC Systems
  • Refrigeration Equipment Protection
  • Motor Control Centers
  • Industrial Machinery Circuits
  • Electrical Distribution Panels
  • Building Automation Systems
  • Equipment Branch Circuits

Why Choose Schneider Electric Quality?

Schneider Electric QO circuit breakers provide proven reliability with 15-year average life duration and comprehensive environmental compliance including RoHS and halogen-free construction. The Green Premium product status and mercury-free design demonstrate commitment to sustainable electrical protection solutions for demanding commercial applications.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
40 °C
Average Life Duration:
15 year(s)
China Rohs In Scope:
No
China Rohs Label:
1
Circuit Breaker Application:
HACR rated
Circuit Breaker Type:
standard
Device Type:
LV equipment - Low voltage circuit breaker
Energy Efficiency Optimized:
FALSE
Environmental Disclosure:
ENVPEP2111016
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
H And D Domain:
Safety
H And D Enrichment Assignment:
no
H And D Enrichment Class 3:
Circuit Breakers
H And D Enrichment Class 4:
MCB UL 2P
H And D Enrichment Function:
MCB
Halogen Content Performance:
Halogen free product
Legacy Weee Scope:
In
Market Segmentation:
Commercial
Mercury Free:
Yes
Mounting Mode:
bolt-on
Number Of Spaces Required:
2
Packaging Made With Recycled Cardboard:
No
Packaging Without Single Use Plastic:
Yes
Poles Description:
2P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.91 in
Product Or Component Type:
miniature circuit-breaker
Product Width:
1.5 in
Range Of Product:
QO
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2534
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
1
Total Lifecycle Carbon Footprint:
19 kg CO2 eq.
Toxic Heavy Metal Free:
Yes
Traceability:
No
Use Carbon Footprint:
17.30424348
With Recycled Cardboard:
No
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Miniature Circuit-Breaker
Product Group:
Circuit Breakers

Schneider QOB240VH – Frequently Asked Questions

1) Will a QOB2 breaker fit in a QO plug-on load center?
No. The QOB2VH is a bolt-on breaker, so it mounts with screws to a bolt-on bus in a QO panelboard or I-Line style interior. A plug-on QO load center uses clip-on breakers and will not accept it. For plug-in loadcenter applications you need the plug-on QO 2-pole equivalent instead.
2) Is this QO breaker rated for a rooftop air conditioner or refrigeration unit?
Yes, it carries the HACR rating, which is the marking inspectors look for on breakers protecting heating, air conditioning and refrigeration equipment branch circuits. Amperages run 15, 20, 30, 40, 50, 60 and 100 A two-pole, so you can match the nameplate maximum overcurrent protection on most packaged units.
3) What does the 22kA interrupting rating mean for my panel's short circuit current rating?
The VH suffix version is a 22,000 A interrupting capacity breaker at 120/240VAC, so it can be applied where the available fault current at the panel exceeds the 10kA of a standard QO breaker. On services with high available fault current, using the standard-interrupting version instead would leave the panel underrated.
4) How many panel spaces does the Schneider QO 2-pole bolt-on breaker take up?
Two spaces. It measures 1.5 inches wide, which is two QO 3/4-inch pole spaces, and 2.91 inches deep. Count two open poles in the panel before ordering.
5) Which amperage ratings are available in the QOB2VH two-pole breaker?
Seven ratings: 15 A (QOB215VH), 20 A (QOB220VH), 30 A (QOB230VH), 40 A (QOB240VH), 50 A (QOB250VH), 60 A (QOB260VH) and 100 A (QOB2100VH). All are 2-pole, common trip, 120/240VAC.
6) Can I use this two-pole breaker for a 240V single-phase load like a water heater or a 120/240V split circuit?
Yes. It is a 2-pole device with a common trip, so both ungrounded conductors open together, which is what 240V and multiwire 120/240V branch circuits require. Rated 120/240VAC.
7) Is this a plain thermal-magnetic breaker or does it include GFCI or AFCI protection?
Standard thermal-magnetic overcurrent protection only. The QOB2VH is catalogued as a standard-function miniature circuit breaker, so it provides overload and short circuit protection with no ground-fault or arc-fault sensing. Where the NEC requires GFCI or AFCI on the circuit, you need the QO GFI or CAFI version instead.
8) Will this breaker hold its rating in a hot mechanical room or an outdoor panel?
The rated ambient for operation is 40 degrees C (104 F). Panels in unconditioned attics, rooftop enclosures or boiler rooms can run hotter than that, and in those spots you size for the derating rather than assuming full nameplate amperage.
9) Is a tripped QO bolt-on breaker repairable, or does it get replaced?
Replaced. Schneider lists the QOB miniature circuit breaker as non-serviceable, with a 15-year average life duration. There are no field-replaceable trip units or contacts, so a breaker that fails or will not reset comes out and a new one goes in.
10) Do these QO breakers meet green building and RoHS requirements for a spec submittal?
They are Green Premium, EU RoHS compliant, halogen free, mercury free and free of toxic heavy metals, with environmental profile document ENVPEP2111016 and a stated total lifecycle carbon footprint of 19 kg CO2 eq. Note the REACH declaration states the reference contains Substances of Very High Concern above the threshold, which some procurement checklists ask about. Packaging is free of single-use plastic but is not made with recycled cardboard.
11) Where is the Schneider QOB2VH breaker made?
Manufactured in Mexico by Schneider Electric, in the QO product range.
